3.5
1
Sensor
2
Pre-amplifier
3
Band-pass filter
4
DC voltage part
5
Frequency part
6
Modulation part
7
Monitor channel
8
Analog output 0(4) to 20 mA
9
Fault output

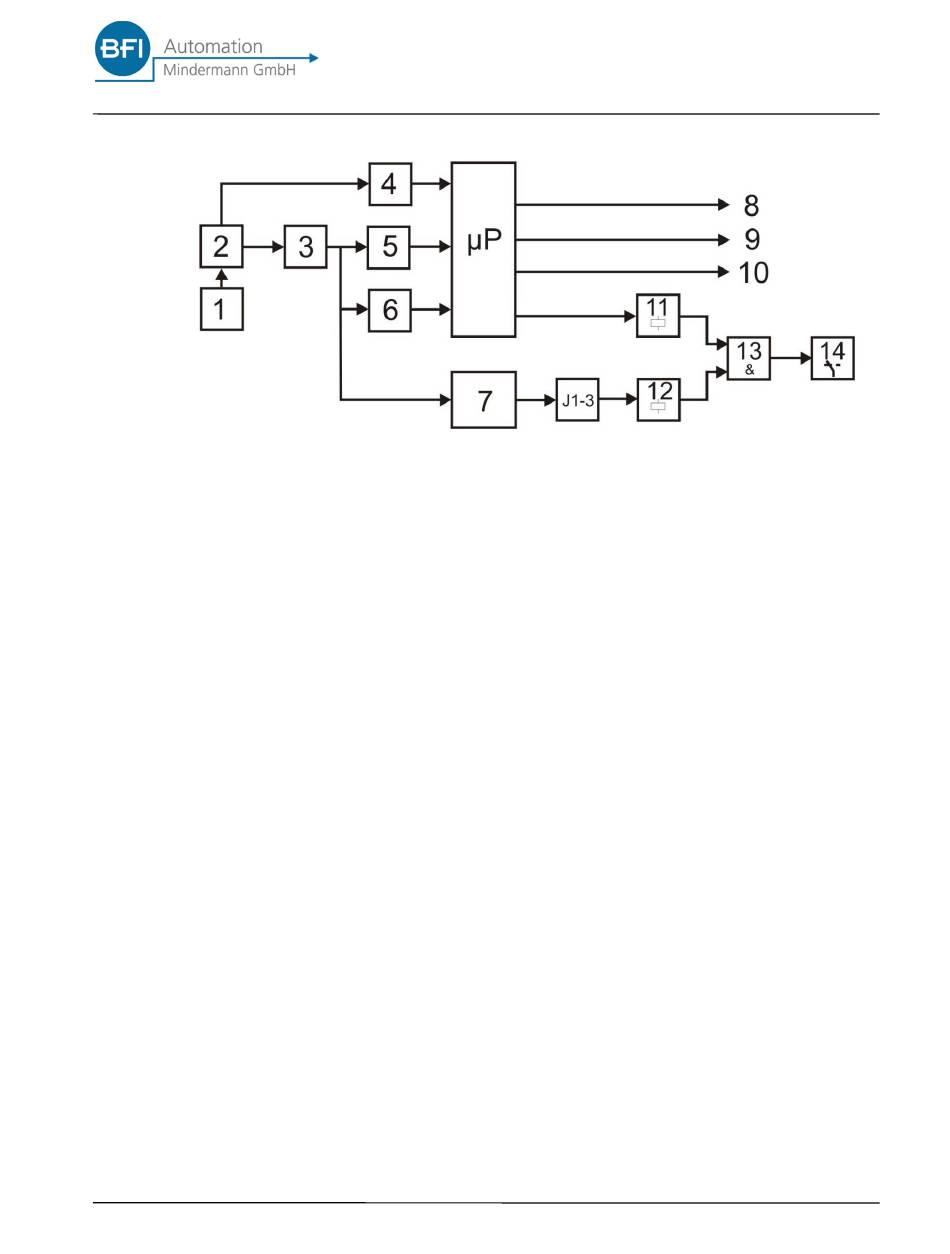

Block diagram CFC1000
10
Data output RS232
11
Flame relay
12
Monitor relay
13
AND logic
14
Relay contact with fuse F3
J1-3 Monitor channel switch-off time
µP
Microprocessor
Technical data
