BFI Automation CFC 4000L Original Operating Instructions page 31

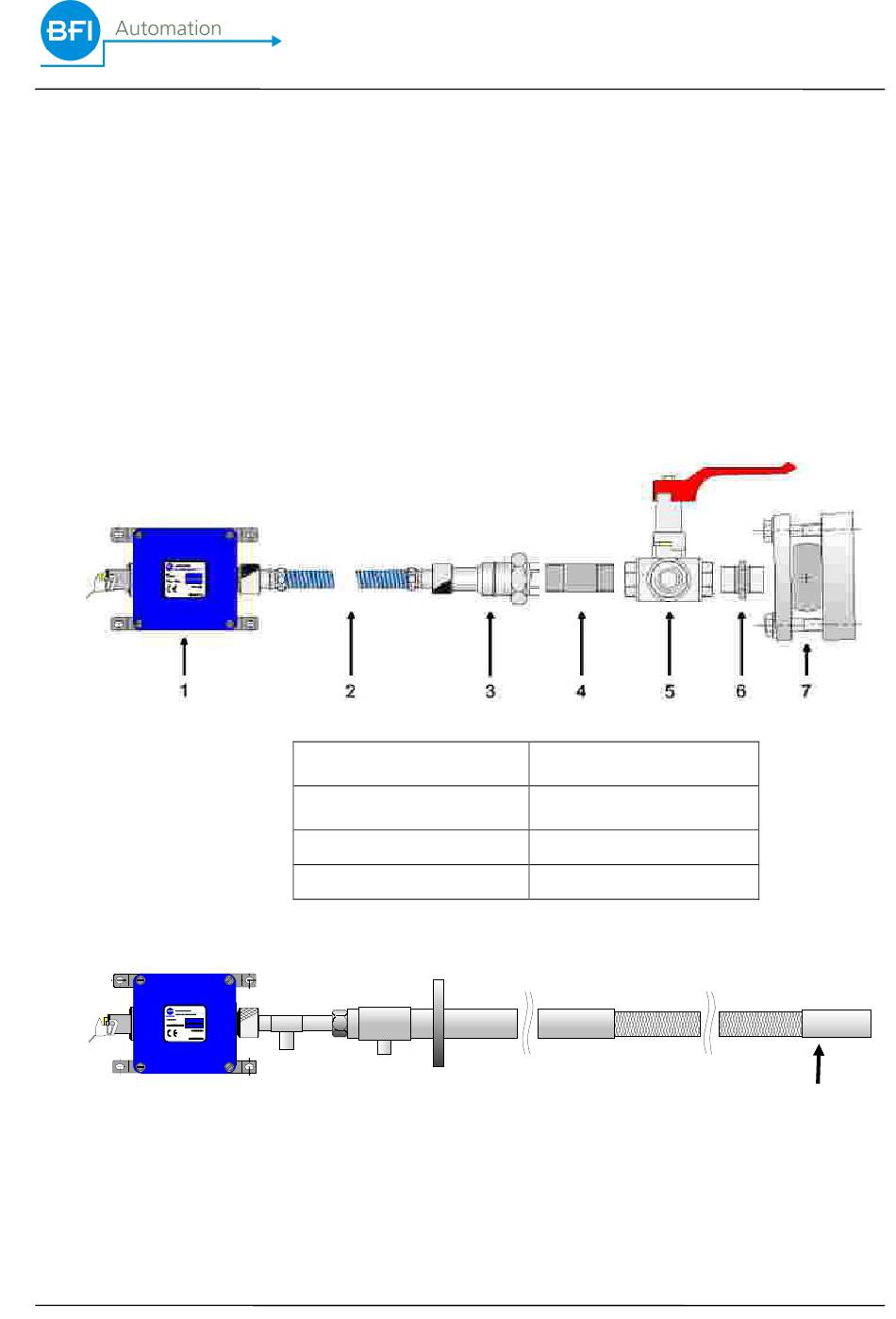

1 OE-Converter
2 Fibre optic cable
3 SKL
4 Heating insulator
Alternative lance solution for tiltable burner
Transport, Installation and Connection
The use of a ball flange (optional, Part No.: 6590-9020-
01) allows adjustments to be carried out easily in order
to mechanically obtain the optimum observation point. If
temperatures of over 180 °C occur at the sensor head
SKL caused by the heat dissipation of the sighting tube
despite the inflow of cooling air, a heat insulator (op-
tional, Part No.: B 512.1) must be employed. At pressur-
ised firing installations, an additional 3-port shut-off de-
vice (optional, Part No.: B 520) should be installed for
the sake of safety. This prevents an escape of hot gases
after the removal of the compact flame controller and
provides additional cooling and purging of the installa-
tion.
The entire mechanical peripheral system can be sup-
plied by BFI Automation.
5 3-Way valve
6 Double nipple
7 Swivel mount
8 Fibre optic lance
8
4-7
