Owner's Manual
Original Instructions
Wired Controller XK60
Thank you for choosing our commercial air conditioners. Please
read this owner's manual carefully before operation and retain it for
future reference.
This owner's manual is subject to change without prior notice for
product improvement. GREE Electric Appliances, Inc. of Zhuhai
reserves the final right to interpret this manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XK60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gree XK60

Summary of Contents for Gree XK60

  • Page 1 This owner's manual is subject to change without prior notice for product improvement. GREE Electric Appliances, Inc. of Zhuhai reserves the final right to interpret this manual.
  • Page 2 User Notice Thanks for choosing GREE duct type air conditioners. Please read this manual carefully before operating this product and keep it for future reference. In addition, please take notice of the symbols below. This mark indicates procedures which, if improperly performed, might lead to the death or serious injury of the user.

  • Page 3: Table Of Contents

    Contents 1 Introduction to the Wired Controller --------------------------------- 1 1.1 Appearance and LCD Icons ------------------------------------------------- 2 1.2 Introduction to the LCD Icons ----------------------------------------------- 2 2 Press Buttons ------------------------------------------------------------ 5 2.1 Buttons ---------------------------------------------------------------------------- 5 2.2 Instruction to the Function of Press Buttons ---------------------------- 5 3 OPERATION INSTRUCTION ---------------------------------------- 7 3.1 On/off ------------------------------------------------------------------------------ 7 3.2 Mode Setting -------------------------------------------------------------------- 8...
  • Page 4 3.10 Health Setting ---------------------------------------------------------------- 26 3.11 I-Demand Setting ------------------------------------------------------------ 29 3.12 Vacation Setting ------------------------------------------------------------- 32 3.13 Turbo Function Setting ----------------------------------------------------- 35 3.14 SAVE Function Setting ----------------------------------------------------- 38 3.15 E-HEATER Setting ---------------------------------------------------------- 45 3.16 Blow Function Setting ------------------------------------------------------ 48 3.17 Filter Setting ------------------------------------------------------------------ 52 3.18 Quiet Function Setting ----------------------------------------------------- 57 3.19 Ultra-Dry Setting ------------------------------------------------------------- 59 3.20 Other Functions -------------------------------------------------------------- 60...

  • Page 5: Introduction To The Wired Controller

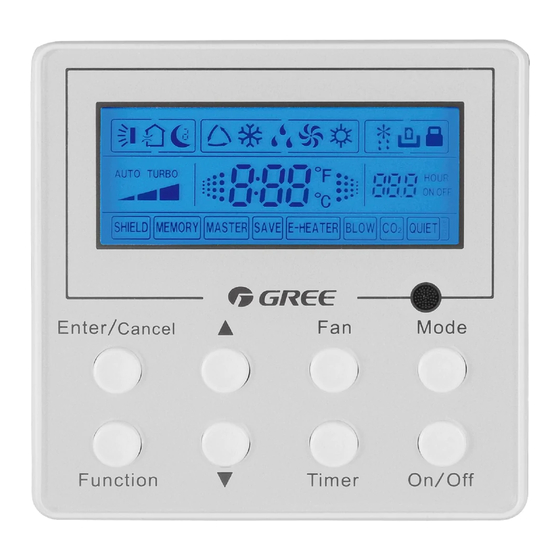

    Wired Controler XK60 1 Introduction to the Wired Controller Fig.1 Appearance of the Wired Controller...

  • Page 6: Appearance And Lcd Icons

    Wired Controler XK60 1.1 Appearance and LCD Icons Fig.2 Appearance of the LCD 1.2 Introduction to the LCD Icons Table 1 Icons Introduction Left and right swing function Up and down swing function...
  • Page 7 Wired Controler XK60 Air exchange function Sleep function Auto mode COOL mode DRY mode FAN mode HEAT mode Health function I-Demand function Vacation function Status display of master and slave wired controller Shield function The button operation, temperature setting, "On/Off" operation,...
  • Page 8 Wired Controler XK60 Fan speed Memory function The unit will resume the original setting state after power recovery Turbo function Energy-saving function Ambient/setting temperature Electric heater Blow function Defrosting function Filter cleaning Timer Setting Keycard control / Detected status sensed by human body...

  • Page 9: Press Buttons

    Wired Controler XK60 2 Press Buttons 2.1 Buttons Fig.3 Press Buttons 2.2 Instruction to the Function of Press Buttons Table 2 Press Function Introduction Buttons Function selection and canceling Enter/ Press it for 5s to enquiry the outdoor and indoor ambient Cancel temperature.
  • Page 10 Wired Controler XK60 Air function setting ▼ Save setting Clean setting. Select fan speed from high, mid-high, middle, mid-low, low and auto levels. Mode Selection of the COOL, HEAT, FAN, Auto or DRY mode. Switchover among these functions of Function SWING/AIR/SLEEP/HEALTH/I-DEMAND/VACATION/TURBO/ SAVE/E-HEATER/BLOW/QUIET.

  • Page 11: Operation Instruction

    Wired Controler XK60 3 OPERATION INSTRUCTION 3.1 On/off Press the On/Off button to turn on or off the unit. Notes: ① The state shown in Fig.4 indicates the OFF state of the unit after energization. ② The state shown in Fig.5 indicates the ON state of the unit after energization.

  • Page 12: Mode Setting

    Wired Controler XK60 3.2 Mode Setting Under the ON state of the unit, press the Mode button to switch the operation modes as the sequence shown in Fig.6: Fig.6 Mode Setting 3.3 Temperature Setting Press ▲ or ▼button to increase or decrease setting temperature under on-state of the unit.

  • Page 13: Fan Speed Setting

    Wired Controler XK60 In Cooling, Dry, Fan and Heating mode, temperature setting range is 61° F~86° F. In the Auto mode, the unit will automatically select heating or cooling to maintain room setpoints. The Heating setpoint is fixed at 68℉ (20℃) and the Cooling and Dry setpoint is fixed at 77 ℉...

  • Page 14: Right And Left Swing

    Wired Controler XK60 Fig.8 Fan Speed Setting 3.5 Right and Left Swing Under the ON state of unit, press the Function button to select the “Right and Left Swing” function option and then press the Enter/Cancel button to activate it.
  • Page 15 Wired Controler XK60...

  • Page 16: Up And Down Swing

    Wired Controler XK60 Fig.9 Right and Left Swing Setting 3.6 Up and Down Swing Under the ON state of unit, press the Function button to select the "Up and Down Swing" function option and then press the Enter/Cancel to activate it.
  • Page 17 Wired Controler XK60 Up and Down Swing function setting is as shown in Fig.10.

  • Page 18: Timer Setting

    Wired Controler XK60 Fig.10 Up and Down Swing Setting 3.7 Timer Setting Timer “On” Setting: Set to start the unit. when desired. When the unit is OFF, press the Timer button, with xx. Hour displayed and ON blinking, then press ▲/ ▼to adjust the timer, then press the Timer button again to confirm.
  • Page 19 Wired Controler XK60 time to stop the unit won’t be displayed. Timer “Off” Setting: Set to the time desired to stop the unit. When the unit is On, press the Timer button, with xx. Hour displayed and OFF blinking, then press ▲/▼to adjust the timer time, then press the Timer button again to...
  • Page 20 Wired Controler XK60...
  • Page 21 Wired Controler XK60 Fig.11 Timer Setting under the ON state of the Unit Timer range: 0.5-24hr. Every press of the ▲ or ▼ button will make the setting time increased or decreased by 0.5hr.If press either of them continuously, the setting time will automatically increase/decrease quickly.

  • Page 22: Air Exchange Setting

    Wired Controler XK60 ② Timer On setting starts when the unit under the ON state is turned off; Timer Off setting starts when the unit under the OFF state is turned on. (only for units with "Fresh Air damper) 3.8 Air Exchange Setting...
  • Page 23 Wired Controler XK60 for 24 min. 5――The unit continuously runs for 60min, and fresh air damper runs for 30 min. 6――The unit continuously runs for 60min, and fresh air damper runs for 36 min. 7――The unit continuously runs for 60min, and fresh air damper runs for 42 min.
  • Page 24 Wired Controler XK60 Air Exchange setting is shown as in Fig.12:...

  • Page 25: Sleep Setting

    Wired Controler XK60 Fig.12 Air Exchange Setting 3.9 Sleep Setting Sleep on: Press the Function button under the ON state of the unit to select the “Sleep” function option and then press the Enter/Cancel button to activate it. Sleep off: When the Sleep function is activated, press the Function button to select the Sleep function option and then press the Enter/Cancel button to deactivate this function.
  • Page 26 Wired Controler XK60...
  • Page 27 Wired Controler XK60 Fig.13 Sleep Setting Notes: ① The Sleep function is defaulted to be OFF after power recovery. ② The Sleep function is unavailable under the Fan mode. ③ When the Quiet function is activated, the Quiet function will always keep ON no matter if the Sleep function is activated or deactivated.
  • Page 28 Wired Controler XK60 2° F in each hour until it reaches 81° F. 7 hours later, the temperature will drop to 79° F. After that, the unit will run at this temperature. Fig.14 Sleep Curve under the COOL Mode Under the Heat mode, the Sleep function is ON, the setting temperature range can be 61°...
  • Page 29 Wired Controler XK60 e.g. If the setting temperature is 72° F, the temperature will drop by 2° F in each hour until it reaches 68° F. Then, the unit will run at this temperature. Fig.15 Sleep Curve under the HEAT Mode...

  • Page 30: Health Setting

    Wired Controler XK60 3.10 Health Setting Under unit "ON" status, press “Function” button to select health function with “Health” icon flashing. Press “Enter/Cancel” button to activate health function. When health is on, press “Function” button to set function, with “health” icon flashing. Then press the “Enter/Cancel” button to cancel health function.
  • Page 31 Wired Controler XK60...
  • Page 32 Wired Controler XK60 Fig.16 Health Setting Notes: ① The health function can be cancelled by turning off the unit. ② The health function can not be cancelled by mode switching. ③ After the unit is resumed, health function will be maintained.

  • Page 33: I-Demand Setting

    Wired Controler XK60 3.11 I-Demand Setting Under cooling mode, press “Function” button to select I-Demand function with “I-Demand” icon flashing. Press “Enter/Cancel” button to activate I-Demand function. It will display the icon of I-Demand, and “5E” will be displayed on the temperature display area.
  • Page 34 Wired Controler XK60...
  • Page 35 Wired Controler XK60 Fig.17 I-Demand Setting Notes: ① The I-Demand function can be cancelled by mode switch and unit ON/ OFF. ② After the unit is resumed, I-Demand function will be maintained. ③ The I-Demand function can not be simultaneously set and can be cancelled by Sleep/Quiet function.

  • Page 36: Vacation Setting

    Wired Controler XK60 be changed. ⑥ When the setting temperature is shielded by the distant control, I-Demand function can not be entered. 3.12 Vacation Setting Vacation function: It’s used to keep the indoor ambient temperature and activate fast heating. Under heating mode, press “Function” button to select Vacation function with “Vacation”...
  • Page 37 Wired Controler XK60...
  • Page 38 Wired Controler XK60 Fig.18 Vacation Setting Notes: ① The vacation function can be only set under heating mode. ② The turbo function will be cancelled when the vacation function is set. ③ The Sleep and Quiet function will be cancelled when the vacation function is set.

  • Page 39: Turbo Function Setting

    Wired Controler XK60 ⑥ When the vacation function is set, the setting temperature shown on the wired controller is 46° F. The indoor fan will automatically run as per Auto fan speed. ⑦ The vacation function can be cancelled when there is mode switching. The temperature will go back to the original setting temperature prior to vacation function.
  • Page 40 Wired Controler XK60...
  • Page 41 Wired Controler XK60 Fig.19 Turbo Function Setting Notes: ① The Turbo function will not be deactivated due to power failure. In DRY, FAN and AUTO modes, the Turbo function is unavailable and the function symbol won’t be displayed. ② The Turbo function will be automatically deactivated as the Quiet function is activated.

  • Page 42: Save Function Setting

    Wired Controler XK60 3.14 SAVE Function Setting Energy Saving Function: Energy saving can make the air conditioner runs in a smaller temperature range by setting lower limited value of setting temperature in the COOL or DRY mode and upper limited value in the HEAT mode.
  • Page 43 Wired Controler XK60 The activated SAVE function can be deactivated by firstly pressing the “Function” button to select the “SAVE” option and then pressing the “Enter/Cancel” button. The energy saving setting is as shown in the Fig.20:...
  • Page 44 Wired Controler XK60...
  • Page 45 Wired Controler XK60 Fig.20 SE setting (1) Notes: ① Under the Auto mode, when the “SAVE” function is activated, the unit will forcibly quit the Auto mode and change to the current operation mode. Further, the “Sleep” function will be deactivated when the “SAVE” function is activated.
  • Page 46 Wired Controler XK60 ④ The lower limit for cooling is 61° F and the upper limit for heating is 86° F. ⑤ During the “SAVE” setting, if the expected setting temperature is out of the limit, then the limit temperature always prevail.
  • Page 47 Wired Controler XK60...
  • Page 48 Wired Controler XK60 Fig.21 SE setting (2) Notes: ① If turn on SE function under AUTO mode, it will skip to related mode compulsively and then the SE function will be turned on. ② Under SE function setting status, if there’s no operation within 20s after the last button operation, the system will exit the SE function setting status.

  • Page 49: E-Heater Setting

    Wired Controler XK60 cooling mode is 61℃;the initial value of the maximum value for the set temperature under heating mode is 30℃. ⑤ After setting SE function, if the set temperature under all modes exceeds the SE setting range, it will select the corresponding limit value as the set temperature.
  • Page 50 Wired Controler XK60 Deactivation of the “E-HEATER” Function: firstly press the Function button to select the “E-HEATER” option, with the symbol “E-HEATER” flashing, and then press the Enter/Cancel button to deactivate it. “E-HEATER” Function setting is as shown in Fig.22:...
  • Page 51 Wired Controler XK60...

  • Page 52: Blow Function Setting

    Wired Controler XK60 Fig.22 “E-HEATER” Function Setting Note: The “E-HEATER” function is not available in the COOL, DRY, and FAN modes, with the symbol “E-HEATER” not displayed. 3.16 Blow Function Setting BLOW function: After the unit is turned off, water in evaporator of indoor unit will be automatically evaporated to avoid mildew.
  • Page 53 Wired Controler XK60 the Function button to select the “Blow” option, with the symbol “BLOW” flashing, and then press the Enter/Cancel button to activate it. Deactivation of the “Blow” Function: The activated “Blow” function can be deactivated by firstly pressing the Function button to select the “Blow”...
  • Page 54 Wired Controler XK60...
  • Page 55 Wired Controler XK60 Fig.23 Blow Function Setting Notes: ① When the “Blow” function is activated, if the unit is turned off through the On/Off button, the indoor fan will still run at low fan speed for another 2 minutes. When the “Blow” function is deactivated, the indoor fan will stop directly as the unit is turned off.

  • Page 56: Filter Setting

    Wired Controler XK60 3.17 Filter Setting Under On status, press “Function” button to set “Filter” function with “Filter” icon flashing. The setting pollution level will be shown at the Timer area. Press “▲” and “▼” to adjust pollution level and press “Enter/Cancel”...
  • Page 57 Wired Controler XK60...
  • Page 58 Wired Controler XK60 Fig.24 Filter Setting...
  • Page 59 Wired Controler XK60 While setting Filter, two numbers will be shown on the timer area. The first number represents the pollution level. The second number shows the accumulated operating time of the indoor fan. There are four statuses in total: (1) No Filter function setting ( “00”...
  • Page 60 Wired Controler XK60 the number means another 100h is accumulated. When “9” shows up, it means the operating hour reaches 1000h. Pollution level with corresponding operating hour: Table 3 Accumulated Accumulated Pollution Pollution Accumulated Pollution operating time operating time level...

  • Page 61: Quiet Function Setting

    Wired Controler XK60 Notes: ① If the Filter function is effectively set, the icon will light up. ② If it is not necessary to clean the filter, no matter whether the setting is changed or not, the unit will not restart to timing while pressing “Enter/Cancel”...
  • Page 62 Wired Controler XK60 How to set Quiet function is set in the Fig. 25:...

  • Page 63: Ultra-Dry Setting

    Wired Controler XK60 Fig.25 Quiet function setting Notes: ① "QUIET" function is unavailable in Fan or Dry mode. Owing to power failure, the "Quiet" function is defaulted to be deactivated. ② If quite function is set, turbo function will be canceled.

  • Page 64: Other Functions

    Wired Controler XK60 When the Ultra-Dry function is activated, it can be cancelled by pressing “▲” button or pressing “Mode” button to switch mode. 3.20 Other Functions 3.20.1 Lock Function Under the ON state of the unit without any malfunction or under the OFF state of the unit, press ▲...
  • Page 65 Wired Controler XK60 after power failure will resume its original running state upon power recovery. Note: It will take about 5 seconds to save data. Therefore, please do not cut down the power at this time, or data will fail to be saved.
  • Page 66 Wired Controler XK60 automatically. Notes: ① If the unit is not connected with the ambient temperature sensor, after 12h electrification, the display of the ambient temperature sensor will be shielded. ② If the outdoor temperature sensor has error, after 12h electrification, the display of the ambient temperature sensor will be shielded.
  • Page 67 Wired Controler XK60 Mode 2: No matter the unit is under which mode, the indoor fan will keep running for 10s after the temperature reaches certain value, then it will stop. Press “▲” or “▼” button to adjust the mode. Under Mode 1/2, “00”/ “01”...
  • Page 68 Wired Controler XK60...
  • Page 69 Wired Controler XK60 Fig.26 Indoor fan shutdown mode setting Note: In the parameter setting interface, only when “05” shown on it, the indoor fan shutdown mode can be set. Other parameters are not allowed to be modified and our company is not responsible for the unit damage or property loss due to parameter...

  • Page 70: Installation Of The Wired Controller

    Wired Controler XK60 4 Installation of the Wired Controller 4.1 Standard Parts Fig.27 Standard Parts of the Wired Controller Description Base Box Soleplate Screw M4×25 Front Panel Quantity...

  • Page 71: Installation Location And Installation Requirements

    Wired Controler XK60 4.2 Installation Location and Installation Requirements (1) Do not install the wired controller in the damp place or under direct sunlight. (2) Do not install the wired controller close to the hi-temperature object or place where the wired controller is likely to suffer water spray.

  • Page 72: How To Install The Wired Controller

    Wired Controler XK60 communication fault. ③ Suppose that the air conditioner is installed where likely to suffer electromagnetic interference, the communication line of the wired controller must be shielded twisted pair. 4.3 How to Install the Wired Controller First of all, the selection and connecting method of the...
  • Page 73 Wired Controler XK60 Fig.28 Installation of the Wired Controller Brief instructions: (1) Pull out the 2-core signal line from the mounting hole and pass this line through the round hole located at the bottom of the wired controller. (2) Use M4×25 screws to fix the soleplate of the wired controller on...

  • Page 74: How To Remove The Wired Controller

    Wired Controler XK60 (3) Fix the signal line on the copper tabs X1 and X2. Make sure the line is tightly fixed and with no short-circuit potential. (4) Set the panel and the bottom together by clasps. 4.4 How to Remove the Wired Controller The wired controller can be easily removed as shown in Fig.29...
  • Page 75 Wired Controler XK60 As shown in the Fig.30 means the high pressure protection. Fig.30 High Pressure Protection...
  • Page 76 Wired Controler XK60 Error codes and their meanings: Table 4 Number Error code Error Compressor high pressure protection Indoor anti-freeze protection Compressor low pressure protection, refrigerant lack protection and refrigerant colleting mode Compressor high discharge temperature protection Communication error Indoor fan motor error...
  • Page 77 Wired Controler XK60 Outdoor memory chip error Electric box sensor error Compressor overload protection Overloading IPM protection DC fan motor error Drive desynchronizing protection Pfc protection Humidity sensor error Activation failure Compressor phase sequence protection Power protection Indoor and outdoor mismatch...
  • Page 78 Wired Controler XK60 Drive module over temperature protection Zero passage protection AC current protection Drive current error Sensor connecting protection Temperature drift protection Bus low voltage protection Bus high voltage protection Charge loop error Input voltage abnormality Drive memory chip error...
