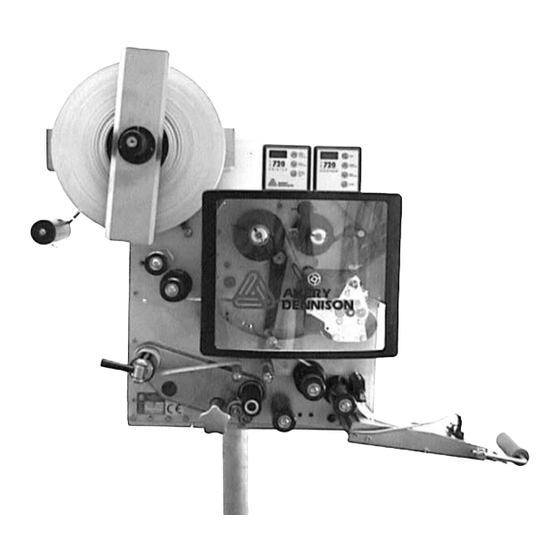

Avery Dennison ALX 720 Service Manual
  1. Manuals
  2. Brands
  3. Avery Dennison Manuals
  4. Printer Accessories
  5. ALX 720
  6. Service manual

Avery Dennison ALX 720 Service Manual

Hide thumbs Also See for ALX 720:
Table of Contents

Advertisement

Quick Links

Download this manual
Service manual
ALX 720
Contents
Release 11/2003
Electronic diagrams
2
3
8
19
20
Page 1
21
31
42
44

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALX 720 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avery Dennison ALX 720

Summary of Contents for Avery Dennison ALX 720

  • Page 1: Table Of Contents

    Service manual ALX 720 Electronic diagrams Contents 1 BLOCK DIAGRAM 6 DISPENSER MAIN BOARD (GENERATION I) 2 PRINTER CPU BOARD 7 DISPENSER CPU BOARD (ELECTRONICS GENERATION II) 3 PRINTER I/O BOARD 8 DISPENSER MOTOR DRIVER 4 DISPLAY (ELECTRONICS GEN. II)

  • Page 2: Block Diagram

    Service manual ALX 720 1 Block diagram Release 11/2003 Page 2...

  • Page 3: Printer Cpu Board

    Service manual ALX 720 2 Printer CPU Board CN13 CN12 CN11 Description / Function Selection Analog - Reference: J2 closed = intern 5 V, J2 open = extern Selection Memory-Type: J3 closed = 8 MB, J3 open = 4 MB...
  • Page 4 Service manual ALX 720 Release 11/2003 Page 4...
  • Page 5 Service manual ALX 720 Release 11/2003 Page 5...
  • Page 6 Service manual ALX 720 Release 11/2003 Page 6...
  • Page 7 Service manual ALX 720 Release 11/2003 Page 7...

  • Page 8: Printer I/O Board

    Service manual ALX 720 3 Printer I/O Board I/O-board (left side) CN14 CN13 CN15 CN12 CN32 CN30 CN16 CN10 CN35 CN34 CN31 CN18 CN28 Description Description I/O-board 97315-xx-6 CN13 Loop Pot. 1 Material end Mxx CN14 Not used Sxx Pot. 4 Sensor Print head Hxx CN15 Full size label sensor Pxxx Pot.
  • Page 9 Service manual ALX 720 I/O-board (right side) CN19 CN20 CN21 CN29 Description I/O-board 97315-xx-6 CN19 Head motor CN20 Foil motor CN21 Feed motor CN29 Print head voltage HVxx Print head voltage 28 V AC 28 V AC Fuse 10 AT Fuse 1 AT Pot.
  • Page 10 Service manual ALX 720 I/O-board adjustment Object Connect Adjustment condition Adjust Value Para- Display /testpoint meter value Loop sensor CN13 Dancer arm not moved Pot. P5 65/85 Rxxx 65/85 (720) Dancer arm at end position <240 Label sensor CN15 Without material in sensor Pot.
  • Page 11 Service manual ALX 720 Release 11/2003 Page 11...
  • Page 12 Service manual ALX 720 Release 11/2003 Page 12...
  • Page 13 Service manual ALX 720 Release 11/2003 Page 13...
  • Page 14 Service manual ALX 720 Release 11/2003 Page 14...
  • Page 15 Service manual ALX 720 Release 11/2003 Page 15...
  • Page 16 Service manual ALX 720 Release 11/2003 Page 16...
  • Page 17 Service manual ALX 720 Release 11/2003 Page 17...
  • Page 18 Service manual ALX 720 Release 11/2003 Page 18...

  • Page 19: Display

    Service manual ALX 720 4 Display Feed Prior Next 1N4148 Enter 1N4148 HP-1414 Avery Maschinen GmbH Ham burg, Germ any 100nF 100nF 47u/16V Title 4 button keypad and display Size Docum ent number Project 8770.01 ALS**0/ALX710 Date: 8 -Feb-1999 Norbert Pansa...

  • Page 20: Display Adapter

    Service manual ALX 720 5 Display Adapter Release 11/2003 Page 20...

  • Page 21: Dispenser Main Board (Generation I)

    Service manual ALX 720 6 Dispenser Main Board (Generation I) Release 11/2003 Page 21...
  • Page 22 Service manual ALX 720 Release 11/2003 Page 22...
  • Page 23 Service manual ALX 720 Release 11/2003 Page 23...
  • Page 24 Service manual ALX 720 Release 11/2003 Page 24...
  • Page 25 Service manual ALX 720 Release 11/2003 Page 25...
  • Page 26 Service manual ALX 720 Release 11/2003 Page 26...
  • Page 27 Service manual ALX 720 Release 11/2003 Page 27...
  • Page 28 Service manual ALX 720 Release 11/2003 Page 28...
  • Page 29 Service manual ALX 720 Release 11/2003 Page 29...
  • Page 30 Service manual ALX 720 Release 11/2003 Page 30...

  • Page 31: Dispenser Cpu Board (Electronics Generation Ii)

    Service manual ALX 720 7 Dispenser CPU Board (Electronics Generation II) Troubleshooting CPU Board What could be the Action solve Step What is wrong How to check it reason problem LED D3 and D4 not No supply voltage Measure supply...
  • Page 32 Service manual ALX 720 Step What is wrong What could be the How to check it Action solve reason problem • If the EPROM No display or no No program Check EPROM meaningful text correct inserted was inserted in a...
  • Page 33 Service manual ALX 720 Step What is wrong What could be the How to check it Action solve reason problem Defective output Replace output message driver UDN2983 driver U3 and U4 disappears, use only from socket (Figure one driver if the...
  • Page 34 Service manual ALX 720 Figure 1 Layout CPU board Release 11/2003 Page 34...
  • Page 35 Service manual ALX 720 Release 11/2003 Page 35...
  • Page 36 Service manual ALX 720 Release 11/2003 Page 36...
  • Page 37 Service manual ALX 720 Release 11/2003 Page 37...
  • Page 38 Service manual ALX 720 Release 11/2003 Page 38...
  • Page 39 Service manual ALX 720 Release 11/2003 Page 39...
  • Page 40 Service manual ALX 720 Release 11/2003 Page 40...
  • Page 41 Service manual ALX 720 Release 11/2003 Page 41...

  • Page 42: Dispenser Motor Driver (Electronics Gen. Ii)

    Service manual ALX 720 8 Dispenser Motor Driver (Electronics Gen. II) 48VAC 48VAC Phase1A Phase1B + Direction - Direction - Clock Resolution + NC - NC Ready Collector Ready Emitter Ready LED Overtemperature 100% on LED Voltage Short circuit 25% on / 75% off...
  • Page 43 Service manual ALX 720 Troubleshooting stepper motor driver The normal operation is indicated by the ready LED. Only the green LED is lightning, the red ones are switched off. An error condition is indicated that one of the red LED is switched on. The ready signal is deactivated and the error message “E__9”...

  • Page 44: Cable Diagrams

    Service manual ALX 720 9 Cable diagrams Sensor Print head position Centronics cable (optional) RS232 cable Sensor Material end Cable print head Micro swi Release 11/2003 Page 44...
  • Page 45 Service manual ALX 720 Figure 1 Sensor Print head position Release 11/2003 Page 45...
  • Page 46 Service manual ALX 720 Figure 2 Centronics cable (optional) Release 11/2003 Page 46...
  • Page 47 Service manual ALX 720 Figure 3 RS232 cable Release 11/2003 Page 47...
  • Page 48 Service manual ALX 720 Figure 4 Sensor Material end Release 11/2003 Page 48...
  • Page 49 Service manual ALX 720 Figure 5 Cable print head Release 11/2003 Page 49...
  • Page 50 Service manual ALX 720 Figure 6 Fullsize sensor Release 11/2003 Page 50...
  • Page 51 Service manual ALX 720 Figure 7 Micro switch Release 11/2003 Page 51...
