GB/UK
INSTALLATION, USE AND MAINTENANCE

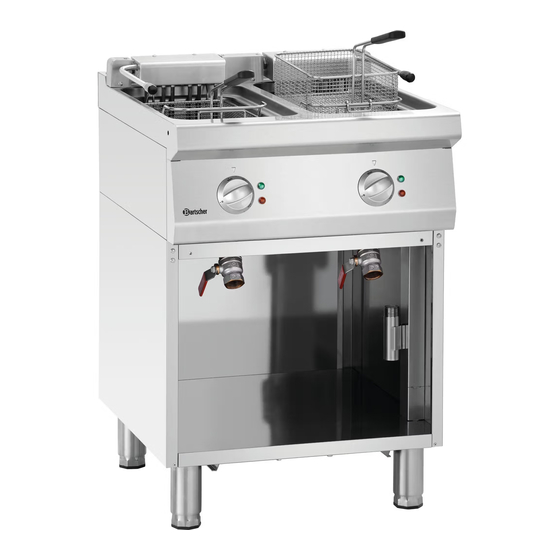

Electric Fryer 700
286921

Advertisement

Table of Contents
loading

Related Manuals for Bartscher 700

Summary of Contents for Bartscher 700

  • Page 1 GB/UK INSTALLATION, USE AND MAINTENANCE Electric Fryer 700 286921...
  • Page 2 TYPENSCHILD \ PLAQUES DES CARACTERISTIQUES TECHNIQUES \ DATA PLATE 2/33...

  • Page 3: Technical Features

    GENERAL WARNINGS  Read the instructions carefully before installation, use and maintenance of the appliance.  The installation has to be performed by qualified personnel following the manufacturer’s instructions given in the provided manual.  The appliance is only suitable for the preparation and cooking of food in industrial kitchens such as those used in restaurants, hospitals, company canteens, cooking centres, butcher’s shops and food production firms.
  • Page 4 1935/2004/UE - Food Contact Material (MOCA) And the particular reference norms. Declaration of compliance The manufacturer declares that the appliances of their production meet the above mentioned EEC directives and requires that installation be done observing the norms in force, particularly regarding the system for letting out fumes and air exchange.

  • Page 5: Installation

    INSTALLATION Preliminary operations Remove the appliance from the packaging, ensure that it is intact and, if in doubt, do not use it but contact professionally qualified personnel. The packaging materials are compliant with environmental safety regulations. They can be stored without risk, or else should be disposed of in accordance with current national regulations, particularly those regarding the nylon bag and the polystyrene.

  • Page 6: Maintenance

    MAINTENANCE ATTENTION! Before doing any kind of maintenance or repairs, make sure that the appliance is disconnected from the electric mains. The following maintenance operations have to be carried out at least once a year by specialized personnel. It is advisable to have a maintenance contract. ...
  • Page 7 ELECTRIC FRYERS SERIES 700 Technical features p. 16 Dimensions p. 16 Description of appliances p. 29 Substituting components p. 29 Operating anomalies p. 30 Instructions for Use p. 30 Device care and cleaning p. 33 15/33...
  • Page 8 CARACTERISTIQUES TECHNIQUES TECHNICAL FEATURES TECHNISCHE DATEN SERIE/SERIES/SERIE 700 [kg] Elett./ Cable/ Capcité cuve/ Modele Dimensions/ par cuve/ Electr./ Kabel Tank capacity/ Model Masse each tank/ [Hz] H07 RN-F Beckeninhalt [kg/h] Modell [mm] [Kw] [mm2] Becken 400 – 3+N 286921 600x700x850 17,4...

  • Page 9: Description Of Appliances

    DESCRIPTION OF APPLIANCES Electric Fryer A sturdy structure in steel placed on four feet, which make it possible to regulate the height in the version with cabinet. The external coating is in Chrome-Nickel 18-10 stainless steel. It is provided with a thermostat which makes it possible to regulate the temperature in a range from 100°...
  • Page 10 of passing the bulb through the various elements; do this operation with great care, avoiding bending the thermostat bulb (to facilitate the operation, it may be necessary to disassemble the microswitch) and then position it in the same position as the part being replaced. Some problems and their possible solutions Problem Possible solution...
  • Page 11 Preparation for cooking First of all, clean the vat carefully especially where it comes in contact with the oil following the instructions in the cleaning paragraph. Then make sure that the draining tap (1) is tightly closed and fill in the cooking vat with oil up to a level between the minimum and the maximum signs (2).
  • Page 12 Method of use The oil should be changed frequently to avoid dangerous situations do not use it when it has become brown and viscose. Never fill the basket more than 50% full, in order to achieve rapid cooking and low oil absorption. If a basket is put into the vat with only partly drained food, it can cause a sudden boiling of the oil and the subsequent formation of foam due to oil emulsion with the water content of the food.

  • Page 13: Care And Maintenance Of The Appliance

    CARE AND MAINTENANCE OF THE APPLIANCE Cleaning ATTENTION! Before doing any cleaning, make sure that the appliance is disconnected from the electric mains. During cleaning operations, avoid using direct or high pressure sprays of water on the appliance. Cleaning must be done when the appliance is cold. Steel parts can be cleaned with warm water and neutral detergent, using a cloth.
