Summary of Contents for Bartscher MDI SNACK III Plus

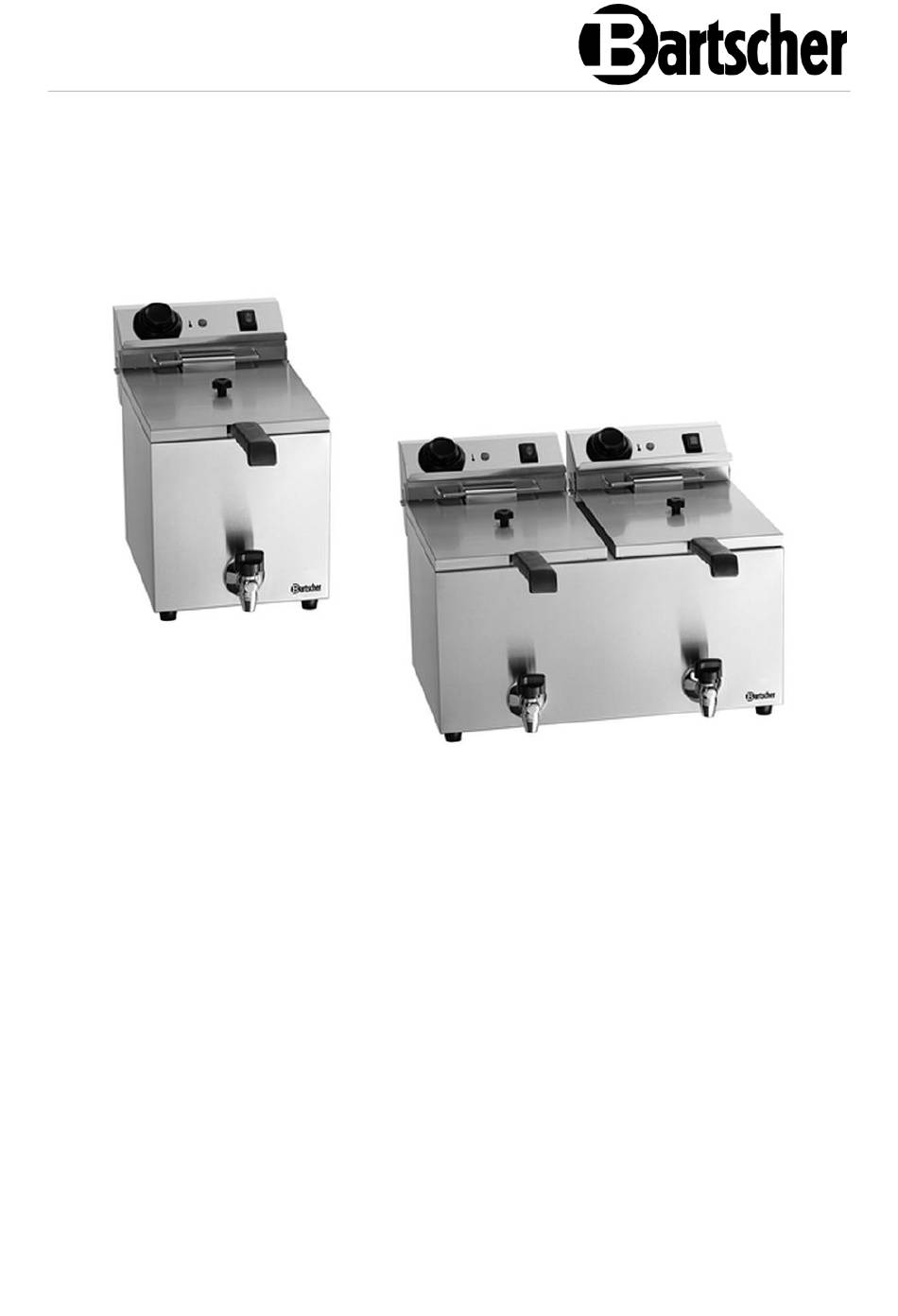

- Page 1 MDI SNACK III Plus - MDI SNACK IV Plus A162828 - A162829...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-02-23...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Deep fat frying of adequate food products. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Version / Characteristics A162828 / A162829 • Type: table-top appliance • Type of power supply: electric • Appliance connection: ready to plug in • Heating element: – stainless steel – can be piovoted out •... - Page 12 Technical Data Name: Deep fat fryer MDI SNACK III Plus A162828 Article number: Material: Stainless steel Number of basins: Basin volume, in litres: Basin dimensions (W x D x H), in mm: 240 x 300 x 200 Number of baskets:...
-
Page 13: List Of Components Of The Appliance
Technical Data The set includes: – 2 baskets – 2 lids List of Components of the Appliance A162828 Fig. 1 1. Main appliance 2. Basket with handle 3. Control box 4. Control panel 5. Feet (4 pcs) 6. Fat drain tap 7. - Page 14 Technical Data A162829 Fig. 2 1. Main appliance 2. Basket with handle (2x) 3. Control box (2x) 4. Control panel (2x) 5. Feet (4 pcs) 6. Fat drain tap (2x) 7. Heating element with cover (2x) 8. Basin (2x) 9. Oil drain opening (2x) 10.
-
Page 15: Functions Of The Appliance
Installation and operation Functions of the Appliance Correct frying in a simple way: Thanks to digital control knob, MDI Bartscher, you may set the temperature with accuracy down to one degree. Plus, current oil temperature check is possible at all times. -
Page 16: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 17 Installation and operation CAUTION! Risk of burns! Due to lower flashpoint, old oil that had already been used for frying, exhibits a tendency for self-ignition and favours frothing. Do not use old oil for frying. Regularly change frying oil. When the oil level is above the MAX mark during operation of the appliance, hot oil may spill out.
- Page 18 Installation and operation NOTE! For safety reasons, the appliance operates only when the control box is properly mounted on the housing, so that the micro-switch below the control box sets the appliance ready for operation. 5. After cleaning, mount the control box with heating element on the fastening element of the appliance.
- Page 19 Installation and operation Indications for Melting Fat in Cubes (Blocks) in the Deep-Fat Fryer 1. Remove the basket from the basin. 2. Place the fat in cube (block) directly on the cover of the heating element, so that it is covered. 3.
- Page 20 Installation and operation Filling the Basin with Frying Oil or Fat in Cubes (Blocks) CAUTION! Prior to filling with the frying oil or fat in cubes (blocks), the basin must be clean and dry. 1. Make sure the fat drain tap is closed and locked. 2.
- Page 21 Installation and operation Switching on 1. Connect the appliance to a single grounded socket. The green power indicator light in the ON/OFF switch lights up. The digital display in the push rotary control knob shows 'OIL', to check the condition of oil in the basin. 2.
- Page 22 Installation and operation 4. Fry the food. 5. After frying, carefully remove the basket using the handle and use the hook to hang the basket on the fixture for hanging on the control box. 6. Wait for the excess of fat to drip off of the fried products.
-
Page 23: Cleaning
Cleaning Overheating Protection System If the fryer is accidentally switched on without frying oil / fat in cube (block), or if the basin is filled with fat to the level below required minimum, the overheating protection system automatically switches off the appliance. This function serves the purpose of protecting the appliance against possible damages. -
Page 24: Cleaning
Cleaning Cleaning 1. At the end of a working day clean the appliance thoroughly. 2. Remove the basket from the basin. 3. Raise the heating element and leave it to drip off. 4. Drain the cooled frying oil from the basin. NOTE! Observe instructions in section 'Exchange and Removal of Frying Oil / Liquid Fat in Cubes (Blocks)'. -
Page 25: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution The appliance is Interrupted power supply Check the power supply connected to the power and the cord for damage or... -
Page 26: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
