ASSEMBLY INSTRUCTION
ROMULUS - QUEEN BED
ITEM CODE - 72597
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
for any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Freecall 1800 351 084
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
for any assistance to assembly or for missing parts please phone
Amart Furniture, Customer Service Freecall 1800 351 084
72597
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture ROMULUS 72597
Summary of Contents for Amart Furniture ROMULUS 72597

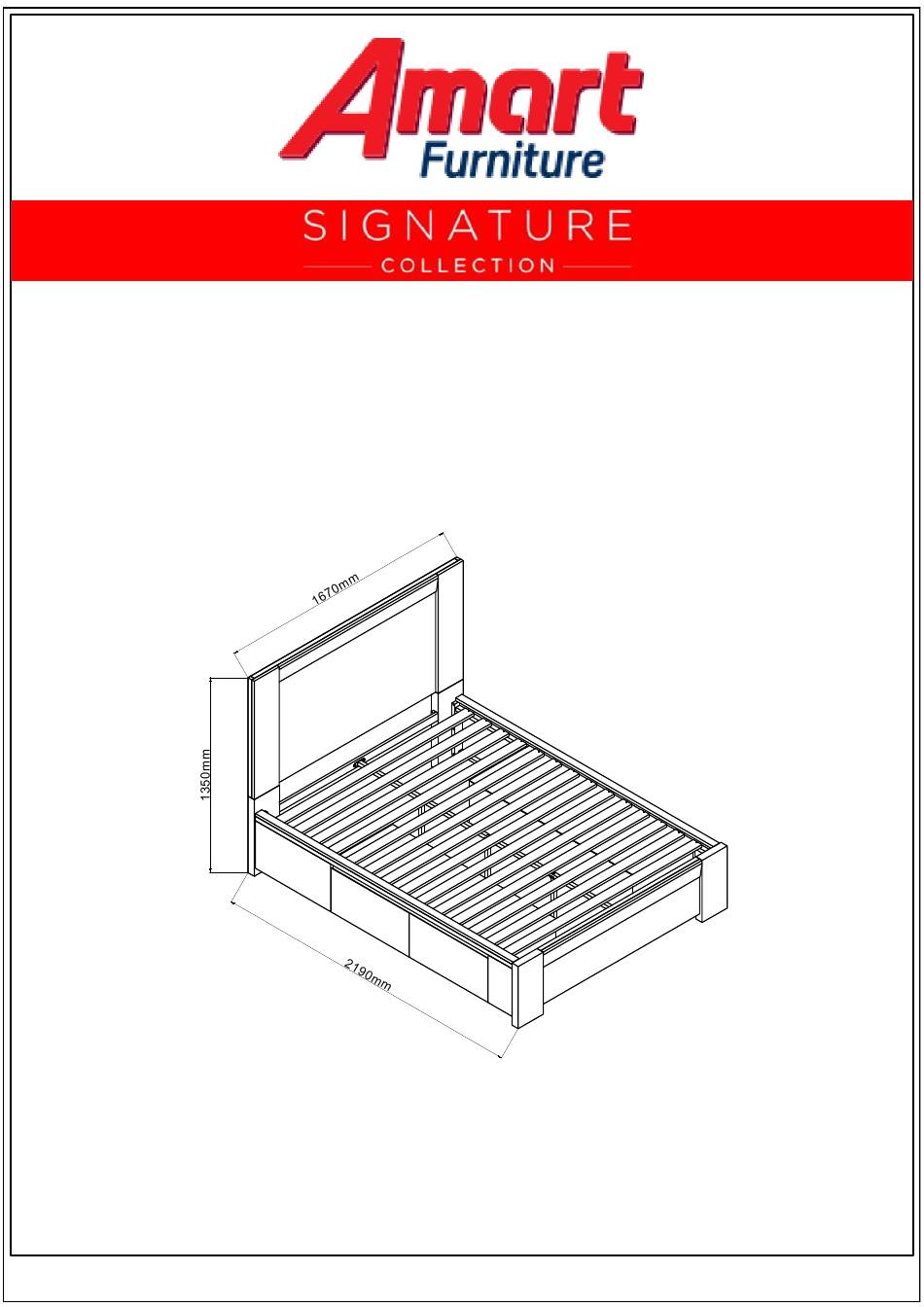

- Page 1 ASSEMBLY INSTRUCTION ROMULUS - QUEEN BED ITEM CODE - 72597 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. for any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Freecall 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
-
