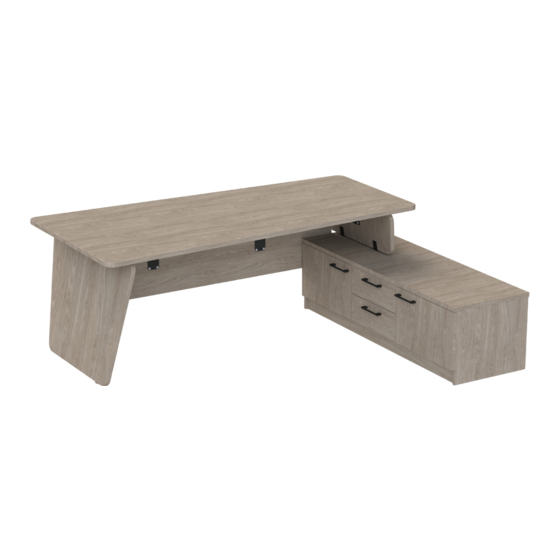

Anson - Executive Desk & Return
7
ASSEMBLY
INSTRUCTIONS
8
10
Anson
Executive Desk & Return
1
2
4
AN-RET
7
8
1
9
11
2
3
5
Pack 4:
1x Modesty
Panel Pack
7
8
1
Pack 1:
9
1x Top Pack
2
Pack 2:
10
1x 1000d Leg
12
Pack
3
Pack 3:
1x 800d Support
Pack
4
6
Pack 5:
1x Return Unit
14-03-2022
INS166
8
9
2
10
3
11
4
5
1
1
1
Advertisement
Related Manuals for dams Anson AN-RET
Summary of Contents for dams Anson AN-RET
- Page 1 14-03-2022 INS166 Anson - Executive Desk & Return AN-RET Pack 1: 1x Top Pack ASSEMBLY INSTRUCTIONS Pack 2: 1x 1000d Leg Anson Pack Executive Desk & Return Pack 3: 1x 800d Support Pack Pack 4: Pack 5: 1x Modesty 1x Return Unit Panel Pack...
- Page 2 **mm **mm 1,2,3...
-
Page 3: Fittings Supplied
Please check that you have all the parts PACK 1: PACK 2: 2 x Top Pack 1 x 1000 Leg Pack PACK 3: PACK 4: 1 x Support Panel Pack 1 x Modesty Panel PACK 5: 1 x Return Unit Please check that you have all the fittings FITTINGS SUPPLIED Connector Bolt - M6... - Page 4 ANSON EXEC DESK & RETURN ASSEMBLY Step 1 Unpack your new Anson executive desk and please recycle all packaging. Step 2 Locate and attach the pins as shown and tighten turning clockwise. Step 3 Locate the brackets to the fixing holes and attach using the M6 x 20mm bolts as shown.
- Page 5 ANSON EXEC DESK & RETURN ASSEMBLY Step 4 Locate the adjustable feet as shown turning clockwise to tighten (anti-clockwise to adjust). Step 5 Locate and attach the pins as shown and tighten turning clockwise. Step 6 Locate the brackets to the fixing holes and attach using the M6 x 20mm bolts as shown.
- Page 6 ANSON EXEC DESK & RETURN ASSEMBLY Step 7 Locate the brackets to the fixing holes and attach using the M6 x 20mm bolts as shown. Step 8 Insert the large cams into the modesty panel as shown. Step 9 Slide the spacers over the pins on the leg panel as shown.
- Page 7 ANSON EXEC DESK & RETURN ASSEMBLY Step 10 Locate the support panel as shown turning clockwise to tighten (anti-clockwise to adjust). Step 11 Insert the large cams into the modesty panel as shown. Step 12 Insert the pins into the location holes on the modesty panel and Slide the spacers over the pins tighten the cams turning clockwise.
- Page 8 ANSON EXEC DESK & RETURN ASSEMBLY Step 13 Locate and attach the rail aligning the holes located as shown using the M6 x 20mm bolts and tighten. Step 14 Locate and attach the rail aligning the holes located as shown using the M6 x 20mm bolts and tighten.
- Page 9 ANSON EXEC DESK & RETURN ASSEMBLY Step 16 Affix the brackets as shown using the M6 x 20mm bolts. Step 17 Locate and attach the top panel aligning the holes on the underside of the top to the fixing brackets on the legs and modesty panel.
