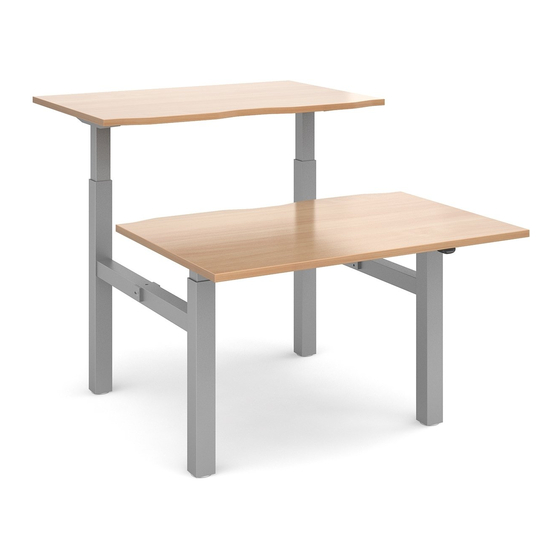

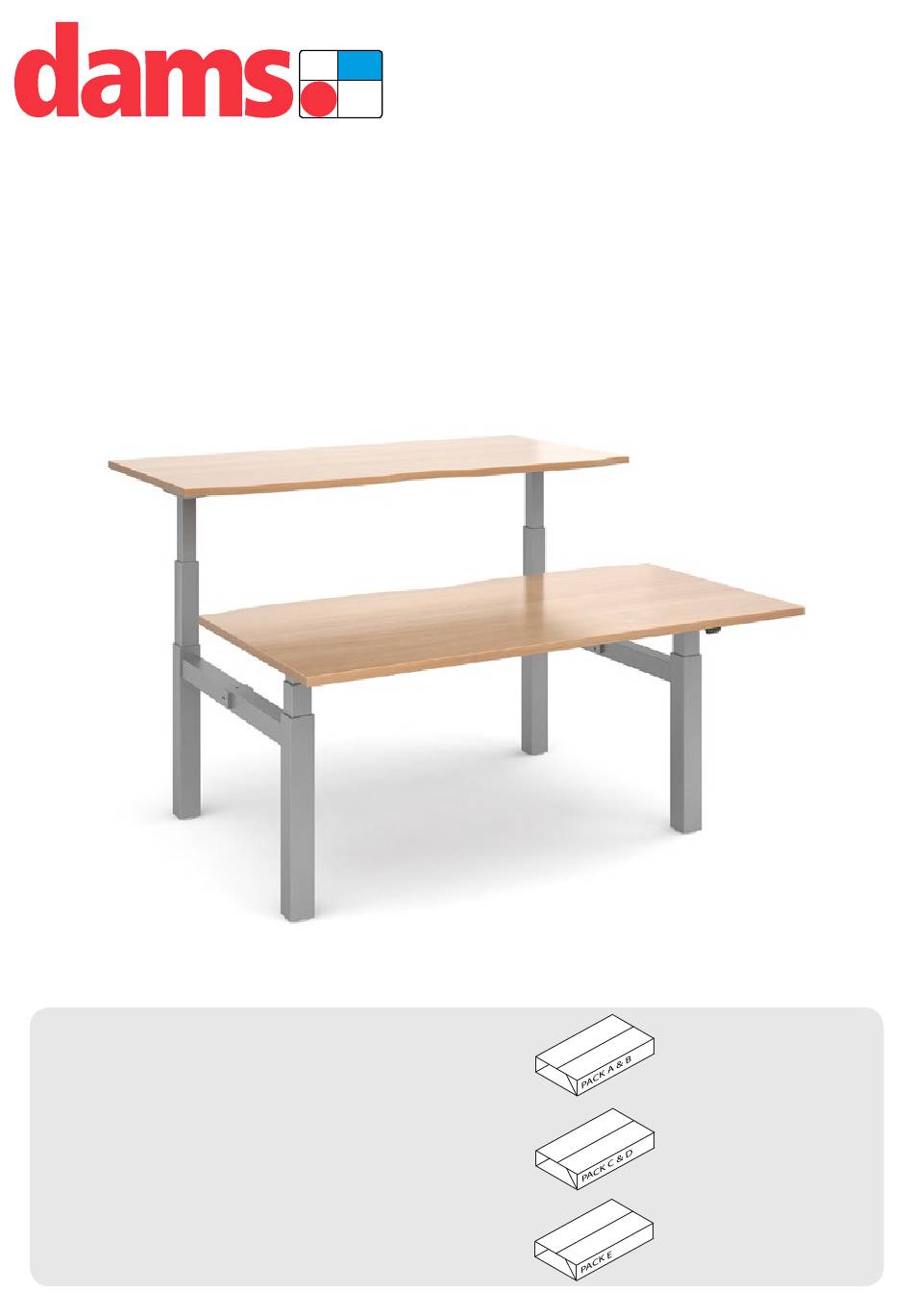

- Page 1 01-05-2019 Elev8 Touch - Back-to-Back Desks EVTB-1200 EVTB-1400 EVTB-1600 Pack A & B: ASSEMBLY 2 x DESKTOPS INSTRUCTIONS Pack C & D: 2 x LEG FRAMES Elev8 Touch Back-to-Back Desk Pack E: 1 x CROSS BEAMS...
- Page 2 1 x Pozi screwdriver 1 x 4mm Allen key 1 x 5mm Allen key 1,2,3...
-
Page 3: Fittings Supplied
Please check that you have all the components PACK A & B: 1200mm = ED128T 2 x DESKTOPS 1400mm = ED148T 1600mm = ED168T PACK C & D: Leg pack code = B2B-T-*-A 2 x UNDER FRAMES PACK E: Cross beam code = B2B-T-*-B 1 x CROSS BEAMS FITTINGS SUPPLIED Size... - Page 4 ELEV8 TOUCH BACK-TO-BACK DESKS ASSEMBLY Step 1 Unpack your new height adjustable desk frame and place on a flat surface. Step 2 Unfold the legs to their upright position. Step 3 Insert the 2 desktop end rails into the frame cross sections.
- Page 5 Step 4 Once inserted, tighten the bolts at A-D. Step 5 Once the end rails are attached, turn the desk over into its upright position. 2 person lift, do not attempt to do this without assistance, this could result in injury or damage to the product.
- Page 6 Step 7 Insert one of the supplied bolts into the top hole on the leg frame as shown. This will be to attach the cross beam. Step 8 You should be able to still see some of the thread of the bolt. If the thread is not visible, loosen the bolt by a few turns to leave a gap as displayed.
- Page 7 Step 10 Insert a second bolt from the cross beam to the frame and tighten. Step 11 Repeat this on all 4 legs attaching the two frames together.
- Page 8 Step 12 Now that your desk is assembled you can proceed with the wiring. Connect both end legs to the control box, insert the connectors into ports “M1” & “M2”. Before proceeding ensure the connector plugs are connected properly. You should hear the plugs click and lock into place.
- Page 9 Step 14 The desktop controller can be positioned on either side of the desktop. Ensure that once the controller is connected to the control box the wires are neatly tucked into the cable management clips. Insert the wire protector into the recessed cut out in the top of the cross section and ensure the wire passes through the...
- Page 10 Step 16 Now position the desktop onto the framework ensuring that the scalloped edge of the desktop is at the centre of the frame. Align the holes in the desktop end rails with the pre-drilled holes on the underside of the desktop.
- Page 11 Step 18 Your desk is now ready to be connected to the mains outlet. Before you proceed with operating your new desk it is recommended that you perform a full reset of the controller to calibrate the height of each leg. This can be done using the following steps;...
-
Page 12: Normal Operation
Step 19 Upgrading to the Digital control unit Make sure that your height adjustable desk is turned off and unplugged from the mains. Unplug the controller supplied with your height adjustable desk and replace with the digital control unit. Fix this to your top using the wood screws provided. After connecting the digital control unit you will need to perform a reset. -
Page 13: Troubleshooting Information
Trouble shooting information Error Beeps- Protection Situation Solution Code Buzzer alert Press both up & down buttons at the same time for 3 seconds. Continue Press both up & down buttons at the same time for pressing the buttons until both 3 seconds.
