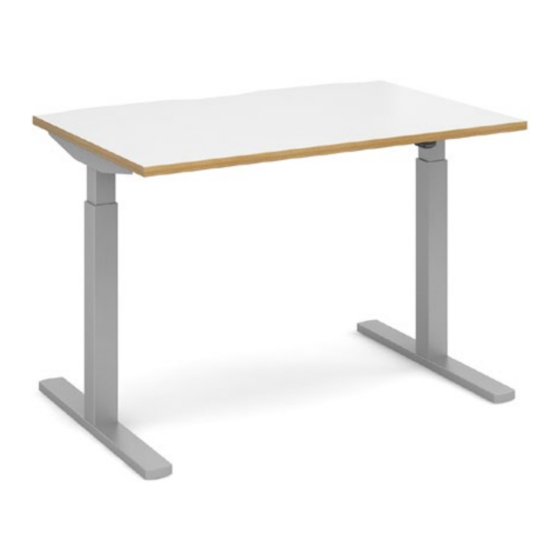

Summary of Contents for dams Elev82 Mono Single Desk EVM-1200
- Page 1 01-05-2019 Elev8 Mono - Single Desk EVM-1200 EVM-1400 EVM-1600 Pack A: ASSEMBLY 1 x DESKTOP INSTRUCTIONS Elev8 Mono Pack B: Single Desk 1 x UNDER FRAME...
- Page 2 1 x Pozi screwdriver 1 x 4mm Allen key 1 x 5mm Allen key 1,2,3...
- Page 3 Please check that you have all the components PACK A: 1200mm = ED128T 1 x DESKTOP 1400mm = ED148T 1600mm = ED168T PACK B: Leg pack code = ST-T-S 1 x UNDER FRAME FITTINGS SUPPLIED Size Size M6 x 16mm Ø4 x 25mm M10 x 16mm Ø5 x 20mm...
- Page 4 ELEV8 MONO SINGLE DESK ASSEMBLY Step 1 Unpack your new height adjustable desk frame and place on a flat surface. Step 2 Place the frame on the desktop and ensure that the desktop controller passes through the wire protector. Step 3 Extend the frame to the required length.
- Page 5 Step 4 Insert the end rails into the desktop frame cross section. Step 5 Insert the right leg into the frame and use 4 of the bolts supplied to fix into place. Step 6 Insert the left leg at a 45° angle before fixing the leg in its upright position with the other 4 bolts provided.
- Page 6 NOTE Use Ø5 x 20mm wood screws to Step 7 attach the top to the frame. Align the holes in the desktop end rails with the pre-drilled holes on the underside of the desktop. Use the wood screws supplied to attach the top to the frame, if you are using a cordless/power driver make sure it is on a low torque setting.
- Page 7 Step 10 Attach the desktop controller to the underside of the desktop using the wood screws provided. If you are using a cordless/power driver make sure it is on a low torque setting. There are pre-drilled holes NOTE Use Ø4 x 25mm wood screws to attach the controller to the top.
- Page 8 Step 12 It is now time to lift the desk over into its upright position. This is a 2 person lift, do not attempt to do this without assistance as this could result in injury or damage to the product. Step 13 Your desk is now ready to be connected to the mains outlet.
