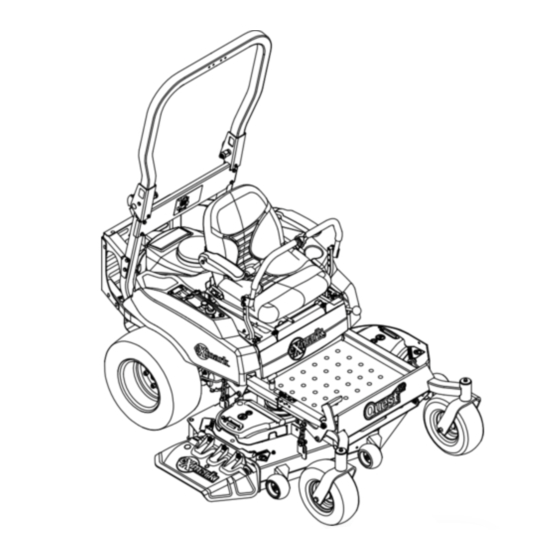

Exmark QUEST SP Setup Instructions

Loose Parts
Use the chart below to verify that all parts have been shipped. Part numbers not shown are available on the dealer
extranet.
Dealer Pack
Part #
103-2106
1-603511
Literature Pack
Part #
—
—
Raise the Rollover Protection
System (ROPS)
1. Pull the knob and rotate 90° to the unlatched
position (see Figure 1).

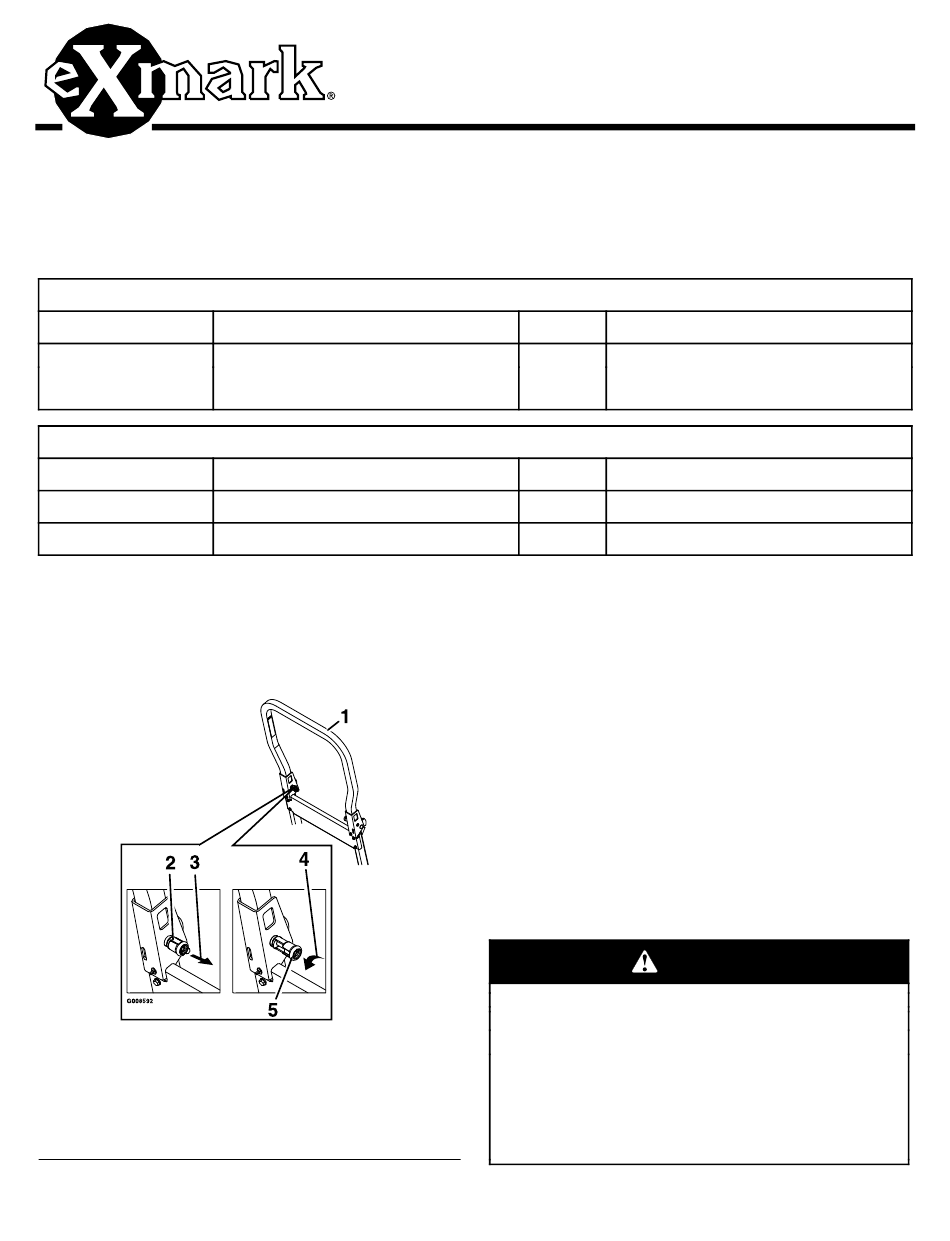

Figure 1
1. Roll bar upper hoop
2. Knob in "latched" position
3. Pull knob to unlatch
4. Rotate 90° to hold unlatched
5. Knob in "unlatched" position
© 2010—Exmark Mfg. Co., Inc.
P.O. Box 808
Beatrice, NE 68310
Description
Key, Exmark Logo
Key, Standard
Description
Manual, Operator's
DVD, Exmark Safety Video
Qty.
Fill out the online warranty registration
1
form and place keys into literature
1
pack.
Qty.
1 Read before operating the machine.
1 View before operating the machine.
2. Raise and hold the upper hoop of the roll bar in the
upright position.
3. To lock the roll bar in the raised, operate position,
rotate the knobs 90° so that the tabs interlock
partially. Apply forward pressure to the roll bar hoop
and observe that the knobs return to the completely
latched position as shown in Figure 1.
Checking Tire Pressure
1. Check the tire pressure in the drive and caster tires.
Proper inflation for all tires is 13 psi (90 kPa).
2. Adjust if necessary.
Servicing the Battery
WARNING
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California
to cause cancer and reproductive harm.
Wash hands after handling.
QUEST
®
Setup Instructions
For Serial Nos. 850,000 & Higher
Use
Use
Part No. 4500-584 Rev. B
Printed in the USA
All Rights Reserved
SP
