Install the speed sensor
Install the wheel magnet

Install the cadence sensor

Install the cadence magnet
Adjust the positions of the
sensor and magnet
Adjust the clearance between
the sensor and magnet
Route the cable
Fixing the sensor and magnet
(Installation is completed)

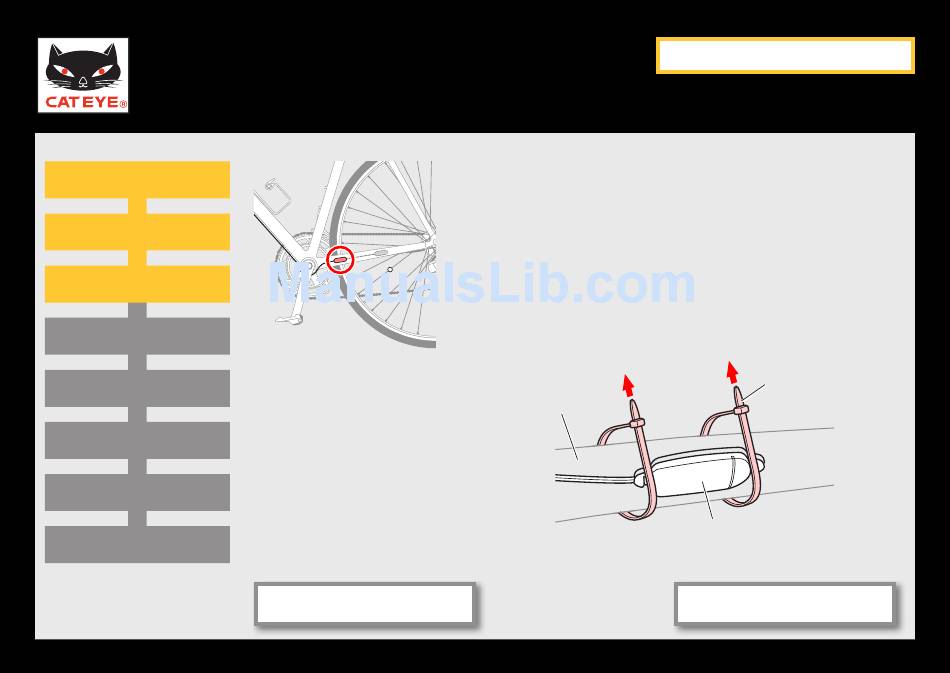

Install the cadence sensor
Temporarily secure the cadence sensor to the out-
side of the left chain stay of your bicycle with two
nylon ties.
* When the clearance with the cadence magnet is
more than 3 mm, install the cadence sensor with
sensor rubber pads in layers. When temporarily
securing, keep allowance for sensor rubber pads.
Left Chain Stay
Front
Return
Return to Contents
How to install the sensor
Nylon ties
Cadence sensor
