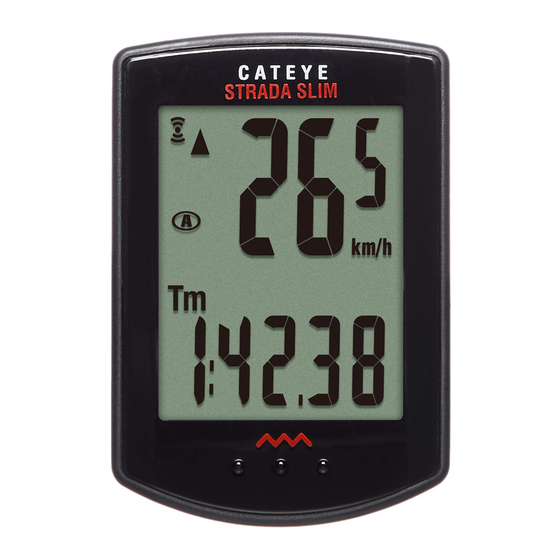

Strada wireless cyclocomputer
Hide thumbs Also See for CC-RD310W:
Table of Contents

Advertisement

Quick Links

CATEYE
STRADA WIRELESS
CYCLOCOMPUTER
CC-RD310W
Before using the computer, please thoroughly read this manual and keep
it for future reference.
Please visit our website, where detailed instructions with movies are
available and the instruction manual can be downloaded.
Warning / Caution
• Do not concentrate on the computer while riding. Ride safely!
• Install the magnet, sensor, and bracket securely. Check these periodically.
• If a child swallows a battery, consult a doctor immediately.
• Do not leave the computer in direct sunlight for a long period of time.
• Do not disassemble the computer.
• Do not drop the computer to avoid malfunction or damage.
• When you press the MODE button with the computer installed to the bracket, press around the
dot section on the surface of the computer. Pressing strongly the other section may result in
malfunction or damage.
• When cleaning the computer, bracket and sensor, do not use thinners, benzene, or alcohol.
• Dispose of used batteries according to local regulations.
• LCD screen may be distorted when viewed through polarized sunglass lenses.
Wireless Sensor
The sensor was designed to receive signals within a maximum range of 60 cm, to reduce
chance of interference.
When adjusting the wireless sensor, note the following:
• Signals cannot be received if the distance between the sensor and the computer is too large.
The receiving distance may be shortened due to low temperature and exhausted batteries.
• Signals can be received only when the back of the computer is facing the sensor.
Interference may occur, resulting in incorrect data, if the computer is:
• Near a TV, PC, radio, motor, or in a car or train.
• Close to a railroad crossing, railway tracks, TV stations and/or radar base.
• Using with other wireless devices, or some particular battery lights.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1)This device may not cause harmful interference, and (2) this device must ac-
cept any interference received, including interference that may cause undesired operation.
Modifications
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by CatEye Co., Ltd. May void the user 's authority to
operate the equipment.
STRADA WIRELESS CC-RD310W
ENG
1
