Summary of Contents for Farmcomp FARMEX HT-PRO

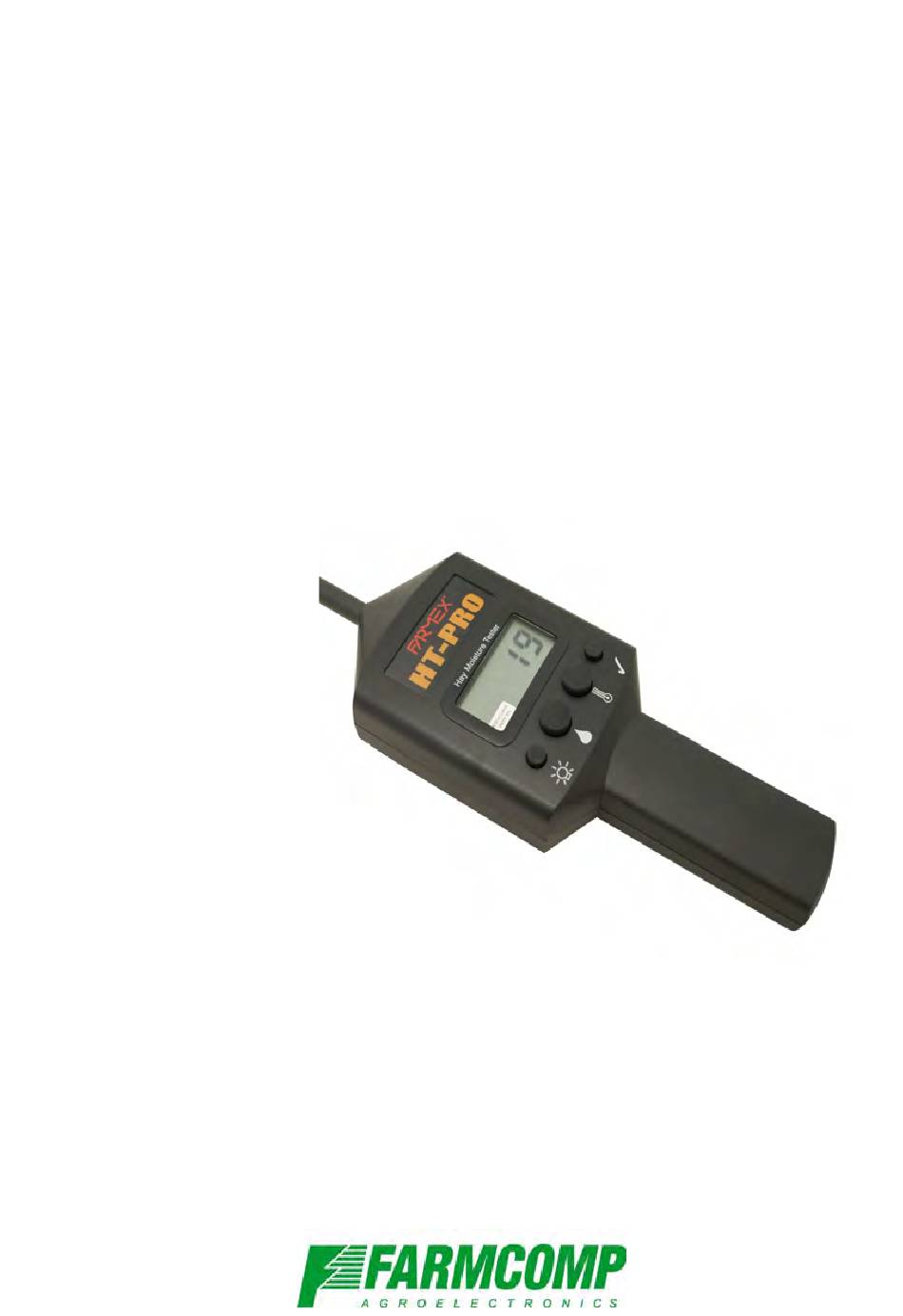

- Page 1 FARMEX ™ HT-PRO...

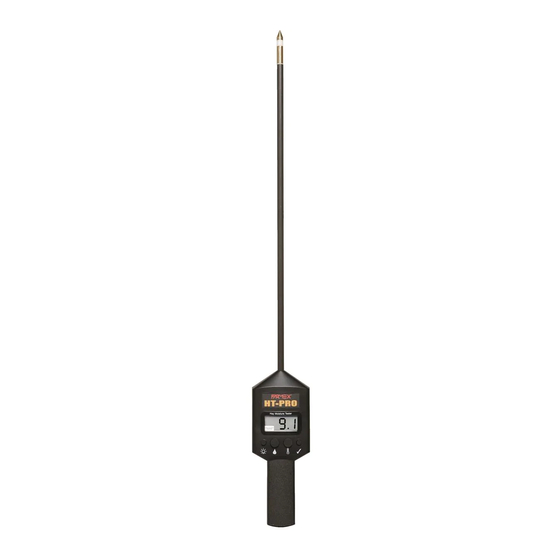

- Page 2 OPERATING INSTRUCTIONS FARMEX ™ HT-PRO PORTABLE MOISTURE AND TEMPERATURE TESTER FOR BALED HAY Thank you for choosing Farmex! Please read this instructions carefully. 1.GENERAL OPERATING INSTRUCTIONS 1.1 Install battery. The 9-volt alkaline battery (included) must be connected before the tester will work. Remove the battery door on the back of the handle and snap the leads onto the battery.
-
Page 3: Operating Notes
Centigrade. NOTE: If both switches are pressed simultaneously, the tester will not be harmed, but only a meaningless number will be displayed. 1.5 To turn backlighting display option on or off, press the button above the “Light Bulb” symbol at the same time something –... -
Page 4: Operation
3. OPERATION 3.1 Quality of the hay and Test Readings Because of the many different conditions which affect test readings, the indicated moisture content should not be used as an absolute, quantitative measurement. Test readings are, however, very useful guidelines for baling and storing hay. -
Page 5: Care And Maintenance
For best results, insert probe into the “dense” side of bale at a 45˚ angle. Take readings in at least five (5) places (approximately 15 cm apart along the bale centre-line) and use the highest reading as a guideline. 3.3 Round Bales: Test readings can be taken anywhere around the outside surface of the bale, NOT THE ENDS, as long as the probe tip is inside the outer wrap, since the outer layer tends to dry out... - Page 6 4.1 CALIBRATION 1.Clean the probe tip. While holding the probe in the air, press and hold the √ button. The tester will begin to count down on the display “5,4,3,2,1” and the tester will then display “00.0”. 2.Release the √ button. 3.Firmly place the calibration clip on to the probe tip as shown in the clip illustrations below and then press and hold the √...
-
Page 7: Troubleshooting
The Manufacturer service partner will repair or replace the defect product and return it as soon as possible. The liability of Farmcomp is limited to the price of the product in maximum. The warranty does not cover any damage that is...
