Summary of Contents for Poynting OMNI-403

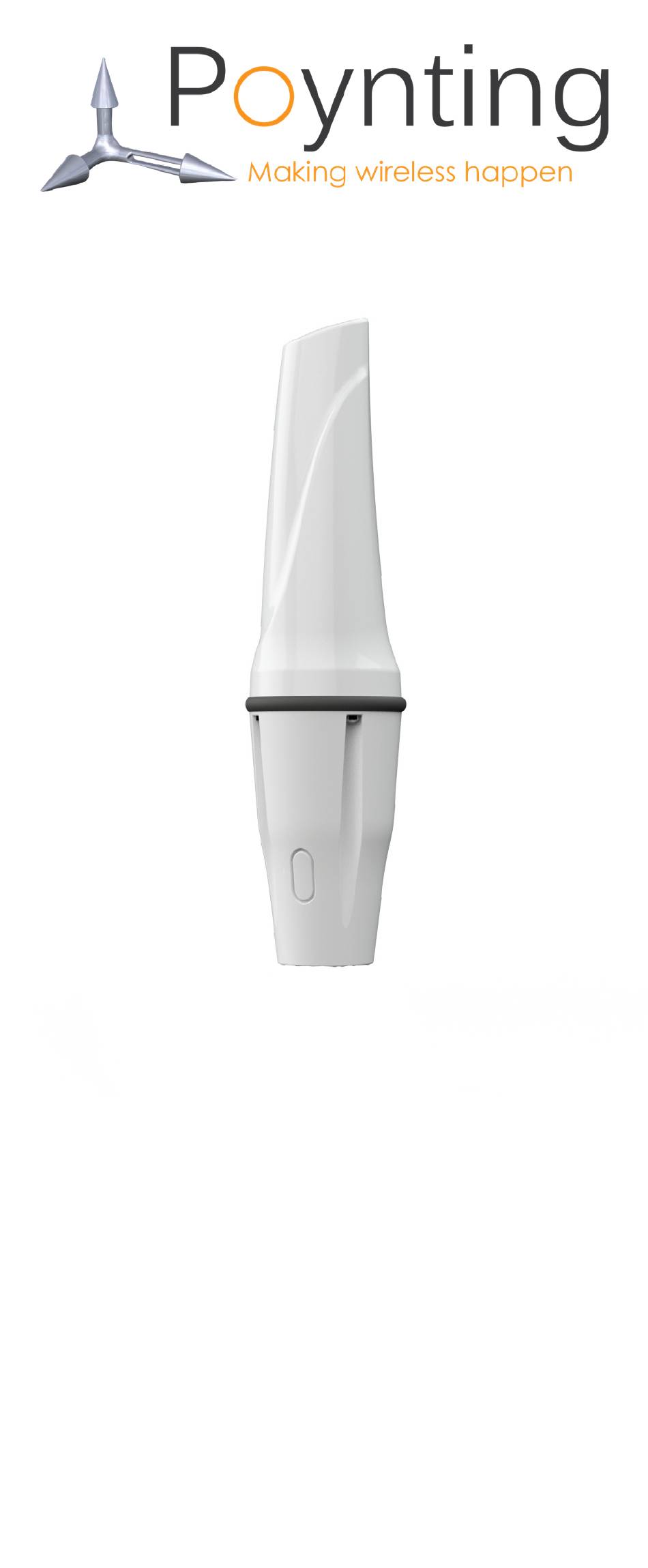

- Page 1 OMNI-403 User Guide South Africa Europe Unit 4, N1 Industrial Park Kronstadler Straße 4, Landmarks Ave 81677 München Samrand, 0157, Germany South Africa Tel: +49 89 2080 265 38 Tel: +27 12 657 0050 Mob.: +49 176 529 733 50 info@poynting.tech...
- Page 2 A-OMNI-0403_PCL...
- Page 3 Index Packing Check List Optional Accessories Introduction Installation Instructions Antenna Mounting Precautions Cable Routing Safety Version: 3.0...
-
Page 4: Item Description
Packing Check List Item Description Quantity A-OMNI-0403 Antenna only M4 Allen Cap screws 3mm Allen Key Adapter Base Seal Locking nut A-OMNI-0403_PCL... - Page 5 The appearance of each component Antenna Unit Adapter Base and Seal Allen cap screw and locking nut 3mm Allen key Version: 3.0...
-
Page 6: Optional Accessories
Optional Accessories Optional Accessories A-BRKT-037: Marine flat mount antenna bracket stainless steel AA-BRKT-038: Marine ratchet rail mount antenna bracket stainless steel A-BRKT-039: Heavy duty marine mount antenna bracket stainless steel A-OMNI-0403_PCL... - Page 7 Introduction This User Guide provides information on the installation instructions of the Omni-directional marine antenna (A-OMNI-0403) Antenna Configuration 1 Pole mount with optional L-Bracket Exploded View Antenna Configuration 2 Marine mount with optional bracketry using the provided allen key. Exploded View Version: 3.0...
-
Page 8: Installation Instructions
Installation Instructions • Open the antenna package and confirm that all listed components are available. • Consider the antenna mounting precautions below before installation. Straight cable entry Slide the RF cable through the bracket pipe, seal and adapter Assembled base. Fasten the antenna with adapter base to straight entry... -
Page 9: Cable Routing
Antenna Mounting Precautions • Place the antenna at the highest point of the vessel and ensure that there aren’t any surrounding obstructions to the antenna. • In order to avoid communication interference, ensure that the antenna is placed at least 0.5m away from other antennas and metal objects. - Page 10 • Use cable ties to secure the antenna cables. When handling the antenna cables, it is essential you follow these basic rules: • Never pull on the cable connectors; pull only on the cable. • Never run cables in a manner that interferes with the driver’s ability to safely operate the boat.
