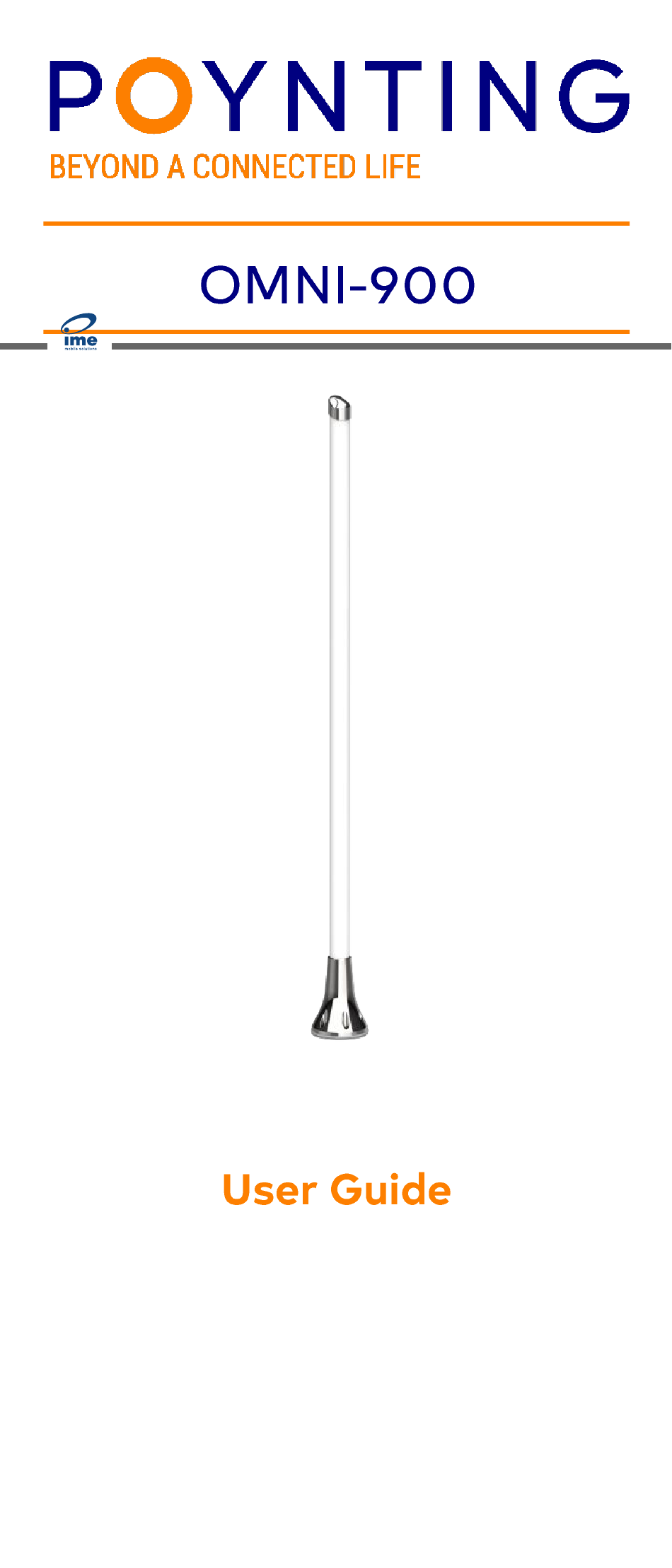

- Page 1 www.ime.de Revision 3.0...
- Page 2 www.ime.de Revision 3.0...
- Page 3 Packing Check List Introduction www.ime.de Antenna Mounting Precautions Cable Routing Cable Connection Safety Revision 3.0...
- Page 4 Item Description Quantity A-OMNI-0900 www.ime.de Antenna Only M8 Stainless Steel Nuts M8 Stainless Steel Flat Washers M8 Stainless Steel 316 Hex Socket Cap Screws Stainless Steel 316 Securing Plate Rubber Seal 13mm Spanner/ Wrench 8mm Allen Key Revision 3.0...
- Page 5 Antenna Unit M8 Nut and Washer www.ime.de M8 Hex Socket Cap Screw Stainless Steel 316 Securing plate Rubber Seal 13mm Spanner/Wrench 8mm Allen Key Revision 3.0...
-
Page 6: Drilling Template
8mm Drill Bit/ Hole saw for cables www.ime.de Centre Punch and Drilling Machine Drilling Template (Available on www.poynting. tech/downloads) Hammer Safety Goggles Revision 3.0... - Page 7 This User Guide provides information on the installation instructions of the Omni-directional antenna (A-OMNI- 0900). www.ime.de Pole mount with optional bracket (BRKT-090) Exploded View Note: Place the rubber seal at the bottom of the antenna and then connect the cable(s) to the antenna before attaching it to the bracket.
- Page 8 www.ime.de Wall mount with optional bracket (BRKT-090). Exploded View Note: Place the rubber seal at the bottom of the antenna and then connect the cable(s) to the antenna before attaching it to the bracket. Revision 3.0...
- Page 9 Download the drilling template from www.poynting.tech/downloads • Place the antenna at the highest point of the vessel and ensure that there are not any surrounding obstructions to the antenna.
- Page 10 • Install the antenna away from the vessel's heat sources and flammable gases. • Survey the planned cable route and look for any blocked passages. Consider alternate www.ime.de routes to find the best available path. Always keep the cables as short as possible to make sure that minimum cable losses are achieved.
- Page 11 Case 1: Router with two LTE ports (2x2 MIMO) • If you are using an antenna variant with two LTE cables, connect the antenna cable labelled Cell (Main) to the respective Cell (Main) connector of your router. Similarly, connect the antenna cable labelled Cell (Aux/Div) to the respective Cell (Aux/Div) www.ime.de connector of your router.
- Page 12 labelled Cell 1 (Main) to the respective Cell 1 (Main) connector of your router. Similarly, connect the antenna cable labelled Cell 2 (Main) to the respective Cell 2 (Main) connector of your router. Next, connect the antenna cable labelled Cell 1 (Aux/Div) to the respective Cell 1 (Aux/Div) of your router.
- Page 13 • The antenna may not be used as a climbing or pulling device. • Considerations must be taken when mounting the antenna that people do not hang or pull on • When installing your antenna, remember: www.ime.de 1. Do not install on a wet or windy day or when there is lightning or thunder in the area.
- Page 14 5. Avoid awkward hand positions where a sudden slip could cause a hand to move into the drill bit or cutting tool. CAUTION: Antennas must be installed to provide a separation distance of at least 20cm from all persons so as to comply with SAR (Specific www.ime.de Absorption Rate) RF Exposure requirements.
- Page 15 Tel: +1 817 533-8130 Tel: +1 817 533-8130 Mob.: +49 176 529 733 50 Tel: +27 12 657 0050 Tel: +27 12 657 0050 Tel: +27 12 657 0050 Tel: +27 12 657 0050 sales-us@poynting.tech sales-us@poynting.tech sales-us@poynting.tech Revision 3.0 sales-europe@poynting.tech info@poynting.tech info@poynting.tech info@poynting.tech...
