Summary of Contents for Netum E800

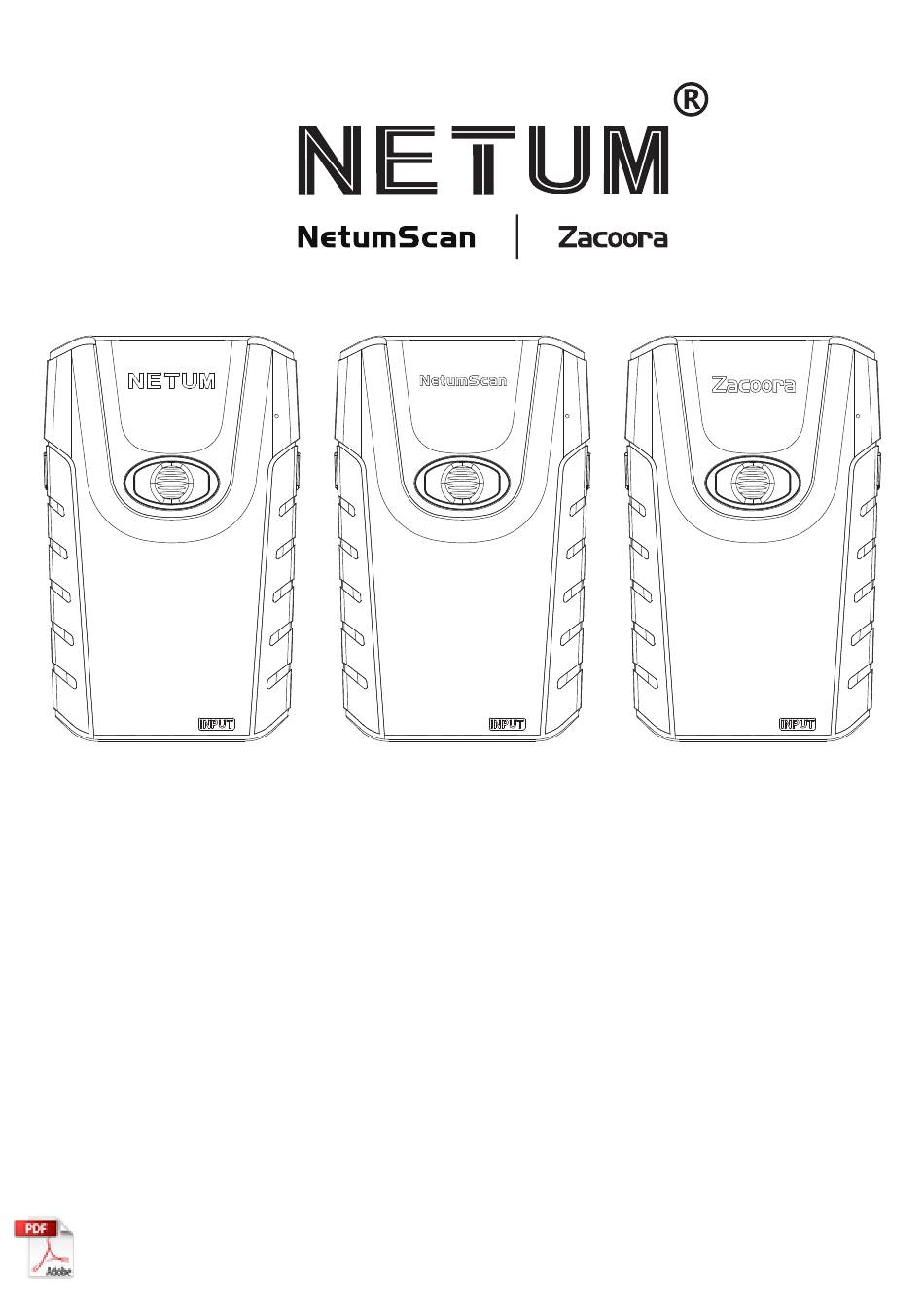

- Page 1 NT033 Package Included: 1 x Scanner; 1 x USB Cable; 1 x USB Dongle; 1 x Retractable Clip; 1 x Clip; 1 x Quick Setup Guide; For a complete user guide: https://www.netum.net/pages/barcode-scanner-user-manuals...
-
Page 2: Product Description
Product Description Scan Button Battery Light/Read Indicator Light (Green/Blue/Red) Scanning Window Power On Button/ Scan button Scan button Lanyard Eyelet USB Type C... - Page 3 Back Clip peel off the �ilm from back of the clip and stick it to the back of your remote device...
- Page 4 Charge the scanner Connect Scanner with your host through USB cable (provided by Netum) or take a DC plug and charge it on an electrical wall outlet. · Red Light - Charging · Green Light - Fully charged · Improtant Notes: DC Plug V: 5V; A>500mA Low battery warning - 2 beeps, LED in red �lashing twice...
-
Page 5: Factory Defaults
%#IFSN0$B Factory Restore Barcode Programming Netum barcode scanners are factory programmed for the most common terminal and communication settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide. An asterisk (*) next to an option indicates the default setting. -
Page 6: Bluetooth Connection
USB Wireless Connection 1) Plug USB dongle into your computer. 2) Setup keyboard language. For example if you use French keyboard, just scan “French keyboard” from keyboard language setcion in page 9. 3) Locate cursor on the place where you want scanner to output the characters then you can start to scan. - Page 7 Basic Mode (HID) * • NO software installation needed • Connects to most devices • Scanner interacts with host device like a keyboard AT+MODE=2 Applicatin Mode (Apple Speci�ic Serial Pro�ile) • For iOS Devices • If you have an iOS application that supports our Scanners this is the mode to use.
- Page 8 Transmission Speed Via Bluetooth Connection By scanning the appropriate barcode will change bluetooth transmit speed. AT+HIDDLY=10 AT+HIDDLY=4 *Medium Speed High Speed AT+HIDDLY=25 Low Speed POP OUT IOS Keyboard IOS Keyboard will be disabled when pairing scanner to IOS device. By pressing scanning button in the middle for 4 seconds then release it, will pop out the IOS keyboard.
-
Page 9: Trigger Mode
Scan Mode: Continue Scan Mode This mode enables the scanner to scan/capture, decode and transmit over and over again. By clicking scan button in the middle will turn off/on the continuous scan Mode. continuous Scan Mode Trigger Mode Scanning this bar code will enable the scanner to enter manual trigger mode. - Page 10 Keyboard Language For example If you use French Keyboard, scan command barcode of “French keyboard ”. US keyboard was setup by default. $LAN#EN $LAN#FR *America EN keyboard French keyboard $LAN#GE $LAN#IT Germany keyboard Italy keyboard $LAN#PT $LAN#ES Portugal keyboard Spain keyboard $LAN#UK $LAN#HU UK keyboard...
-
Page 11: Working Mode
$LAN#TK $LAN#TF Turkey Q keyboard Turkey F keyboard Working Mode If you are heading for a working area which lies outside the Bluetooth signal range, you may activate scanner’s store mode, following step described below. Under this mode, all scanned data will be stored directly into buffer memory of the device. -
Page 12: Convert Case
Idle Time Time period set for scanner from idle to sleep. $RF#ST00 0 Min-No Sleeping $RF#ST20 $RF#ST60 10Mins 30Mins Convert Case * Disable Convert Case Up Low Case Swap (A<->a) All Upper Case (a->A) All Lower Case (A->a) (12) -
Page 13: Beep Volume
Beep Volume By scanning the appropriate barcode below will change the beep volume. $BUZZ#1 $BUZZ# *High Volume Low Volume $BUZZ#0 Mute Function Key Mapping When Function Key Mapping is enabled, function characters are sent over the keypad. $KEY#MO $KEY#M1 *Disable Function Key Mapping Enable Function Key Mapping (13) - Page 14 Beep Once Store Mode Green LED Flashing Downloads This is a general quick setup guide applying for Model E800, E830 , E740, downloaded from our of�icial website. E850 and E990 etc. Full manual for above models are available to be website:www.netum.net...
- Page 15 The possible reason is that setting for some barcode types not commonly work. Please contact us for help or you may go to our of�icial website ”www.netum.net” to download the manual and then refer to the section of “Symbologies”.
-
Page 16: Contact Information
Please do not hesitate to contact us if you need any other con�igurations. Contact Information Tel.: +0086 20-3222-8813 Whatsapp: +86 188 2626 1132 Email: service@netum.net Addr.:Room 301, 6th Floor and full 3rd Floor, Building 1, No. 51 Xiangshan Avenue, Ningxi Street, Zengcheng District, Guangzhou City, Guangdong Province, China... - Page 17 CC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
