Summary of Contents for JWA CALDWELL 79898

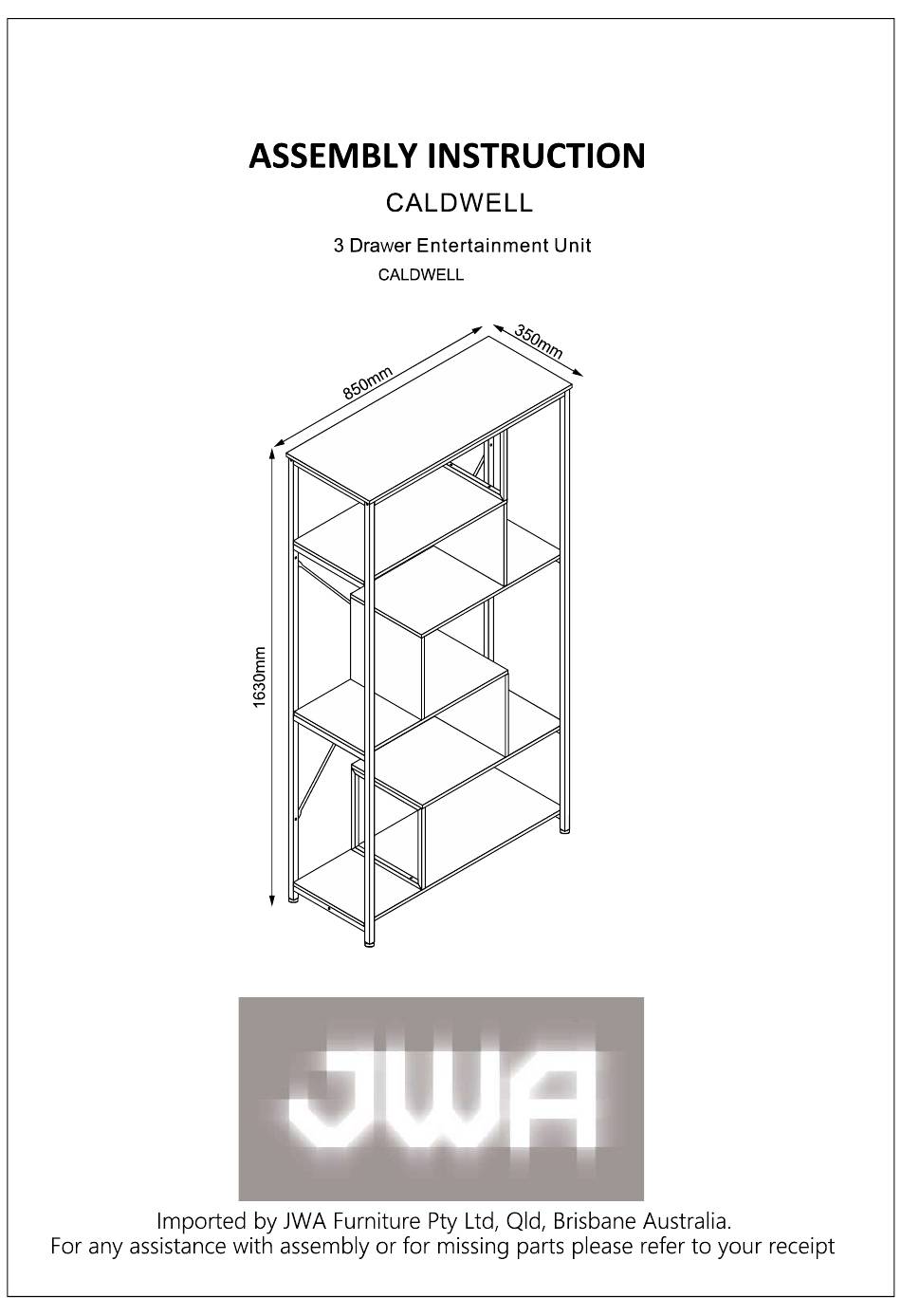

- Page 1 79898...
- Page 3 M6X40mm M6X25mm M6X20mm M6X15mm 6pcs 22pcs 8pcs 4pcs 4pcs ST4X35mm ST3.5X14mm ST4X25mm 12pcs 4pcs 2pcs 2pcs M8x20x10mm M4X25mm 2pcs 4pcs Top panel Left frame Right frame Bottom Panel Upper Shelf Connecting tube Upper metal frame Middle Shelf Bottom Shelf Lower metal frame Vertical panel Cross bar...
- Page 4 STER 1: 1 . Attach 2 PCS 12 together with Parts F and STER 2: 1.Insert part L into frame 7 and 8.
- Page 5 STER 3: 1.Attach connection frame 9 to frame 7 and 8 with part A. STER 4: 1. Attach assembled 12 to frame 7 and 8 with parts D and E.
- Page 6 STER 5: 1.Attach panel 2 to connecting tube 9 with part B. STER 6: 1. Attach 11 to panel 2 with part C .
- Page 7 STER 7: 1.Attach 11 to panel 5 with part C. 2. Attach panel 5 to frame 8 with part B. STER 8: 1.Attach panel 6 to panel 5 with part G.
- Page 8 STER 9: 1.Attach panel 4 to panel 6 with part G. 2. Attach panel 4 to frame 7 with part B. STER 10: 1. Attach panel 6 to panel 4 with fitting G.
- Page 9 STER 11: 1.Attach panel 4 to panel 6 with part G. 2. Attach panel 4 to frame 8 with part B. STER 12: 1.Attach panel 4 to panel 6 with part G.
- Page 10 STER 13: 1.Attach panel 3 to panel 6 with part G. 2. Attach panel 3 to frame 7 with part B. STER 14: 1.Attach frame 10 to panel 3 with part C.
- Page 11 STER 15: 1.Attach frame 7, frame 8 and connecting tube 9 to panel 1 with part B. 2. Attach frame 10 to panel 1 with part STER 16: 1.Attach K to panel 3 with part 2. Attach I to the wall with part...
- Page 12 STER 17: Assemby complete!
