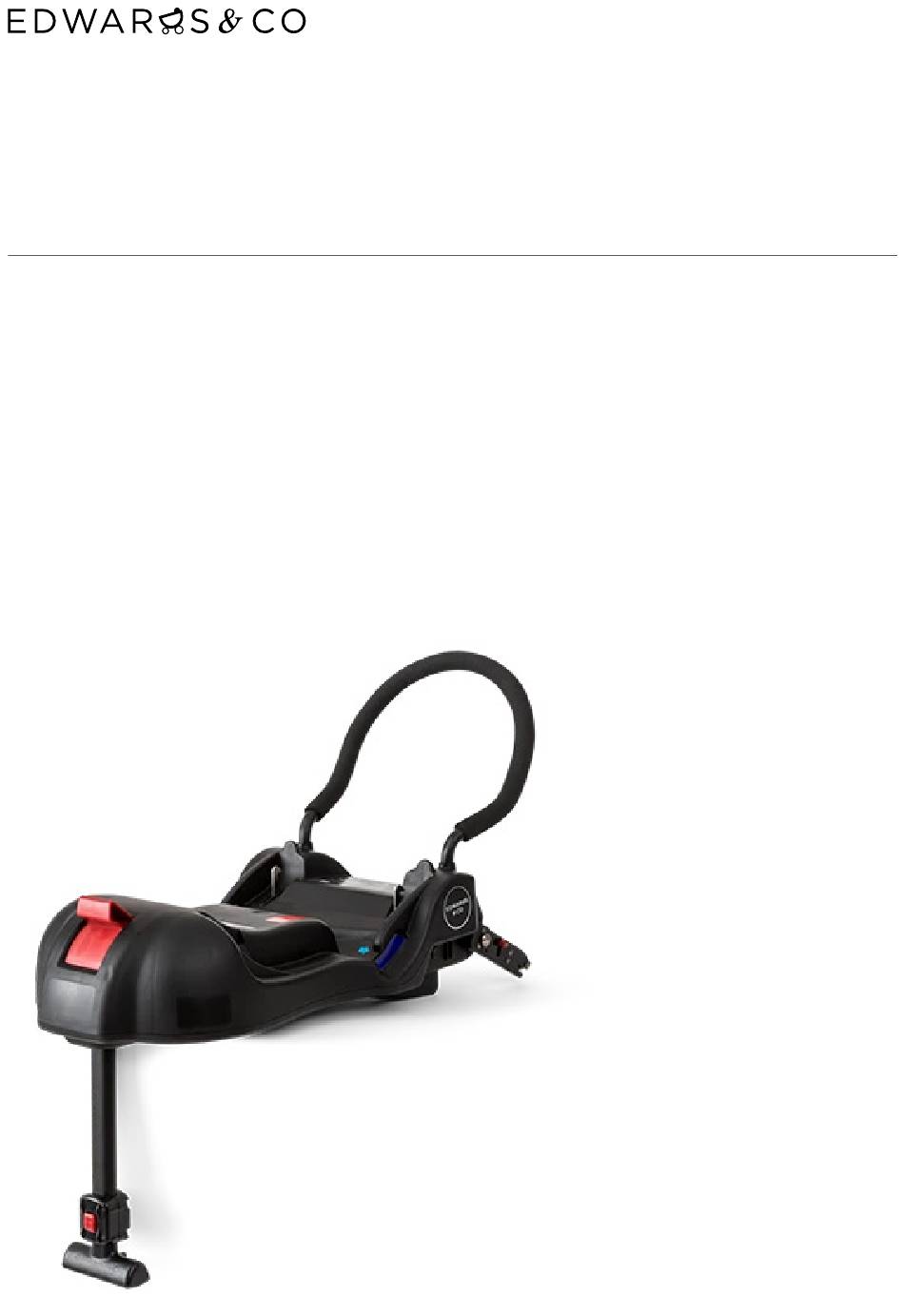

  • Page 1 Use + Care Guide Avery Base Unit FA0062...
  • Page 2 • Keep these instructions for future reference. • Always follow the manufacturer’s instructions. • Read all instructions carefully before assembly and use of this Avery Base Unit. • The correct use and maintenance of this product is essential. Suitable for 0 to 13 kg (Subject to other fitting criteria as stated in this manual.)
  • Page 3 A VE R Y B A S E UN I T - USE + C A R E G U I DE Welcome Thank you for choosing Edwards & Co; your family is now part of ours. Firstly, thanks for choosing Edwards & Co - it truly means a lot to us that you have chosen one of our child restraints to keep your family safe.

  • Page 4: Table Of Contents

    Installing the Avery Base Unit with the vehicle belt Installing the Avery Base Unit with the ISOFIX system Using the Avery Capsule with the Avery Base Unit Safety checklist How to care for and maintain your Avery Base Unit Determining the base unit’s expiry date WARRANTY...

  • Page 5: Warnings

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Warnings TO A V OID IN J U R Y O R D E A TH To reduce the risk of SERIOUS INJURY or DEATH, read this owner’s manual and your vehicle owner’s manual before installing and using this base unit.
  • Page 6 A VE R Y B A S E UN I T - USE + C A R E G U I DE This product is designed to be installed using ISOFIX OR the vehicle seat belt. NEVER use the product with the ISOFIX anchors and vehicle seat belt together.

  • Page 7: What's In The Box

    AVER Y B ASE UNIT - U SE + CA R E G UI D E What’s in the box Use + Care Guide (this instruction manual) 1 x Base Unit 1 x Stabilising Bar 2 x ISOFIX Guides 1 x Vehicle Belt Locking Device 3 x Screws (inc.

  • Page 8: Avery Base Unit Components

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Avery Base Unit components Vehicle Belt Locking Device Stabilising Capsule Release Lever ISOFIX Connectors Vehicle Belt Guide Support...

  • Page 9: Preparing The Avery Base Unit

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Preparing Avery Base Unit...

  • Page 10: Attaching The Stabilising Bar

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Attaching the stabilising bar Note: Tools required - small “Phillips” screwdriver. Important: This base unit cannot be used without the stabilising bar in place.

  • Page 11: Extending The Support Leg

    A VE RY BA S E UN I T - USE + C A RE GU ID E Illustrate the left side then duplicate Replicate previous illustration and and reflect to create the right. Make extend leg Extending the support leg sure buttons, labels etc are present where they are shown in photo 1 .

  • Page 12: Storing The Support Leg

    A VE RY BA S E UN I T - USE + C A RE GU ID E Storing the support leg Illustrate the left side then duplicate and reflect to create the right. Make sure buttons, labels etc are present where they are shown in photo 1 .
  • Page 13 A VE R Y B A S E UN I T - USE + C A R E G U I DE Illustrate the left side then duplicat and reflect to create the right. Make sure buttons, labels etc are present where they are shown in photo 5 .

  • Page 14: Installing The Avery Base Unit

    AVER Y B ASE UNIT - U SE + CA R E G UI D E Installing Avery Base Unit...

  • Page 15: Where To Install The Avery Base Unit

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Where to install the Avery Base Unit WARNING: This Avery Base Unit is only suitable for use in...

  • Page 16: Important Installation Information

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Important installation information This base unit may be installed in your vehicle using the 3-point seat belt OR the ISOFIX method (if lower anchors are fitted in your vehicle). Important: Do not install this base unit using both the vehicle belt and the ISOFIX system at the same time.

  • Page 17: Installing The Avery Base Unit With The Vehicle Belt

    AVER Y B ASE UNIT - U SE + CA R E G UI D E Installing the Avery Base Unit with the vehicle belt Tip: For ease of installation - before starting the installation, pull your vehicle belt out to its full extent and,...
  • Page 18 A VE R Y B A S E UN I T - USE + C A R E G U I DE 3 . Extend the base unit’s 4 . Place the base unit on the “Extending support leg. See vehicle seat with the support the support leg”.
  • Page 19 A VE R Y B A S E UN I T - USE + C A R E G U I DE xtend illustration even though the hoto reference isn’t wide enough. 8 . While holding tension on the Pull on the sash/shoulder portion of the vehicle belt vehicle belt, and ensuring the to establish tension on the...
  • Page 20 A VE R Y B A S E UN I T - USE + C A R E G U I DE Important: 1 1 . Once the base unit has been Do not over- installed securely, press the extend the support leg. Ensure it support leg adjuster and does not push the base unit up extend the support leg foot...
  • Page 21 AVER Y B ASE UNIT - U SE + CA R E G UI D E Notes to ensure a safe installation using the vehicle belt. Ensure the correct angle is achieved When the capsule is clipped into the base unit, it must sit at an angle which ensures your baby can rest with their head back and their airways open.
  • Page 22 AVER Y B ASE UNIT - U SE + CA R E G UI D E Alternative Belt Locking Device If the length of vehicle belt doesn’t allow for the vehicle belt locking device to be positioned alongside the belt buckle, you may use a metal H Clip to lock the belt.

  • Page 23: Installing The Avery Base Unit With The Isofix System

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Installing the Avery Base Unit with the ISOFIX system Installing the base unit 1 . Attach the stabilising “Attaching the...
  • Page 24 AVER Y B ASE UNIT - U SE + CA R E G UI D E 4 . Extend the base unit’s support “Extending the leg. See support leg”. 5 . Place the base unit on the vehicle seat with the support leg positioned towards the floor of the vehicle.
  • Page 25 A VE R Y B A S E UN I T - USE + C A R E G U I DE 7. Push the base unit towards the rear of the vehicle until the connectors lock onto the lower anchors. You will hear a distinct CLICK! when the connectors lock securely.
  • Page 26 A VE R Y B A S E UN I T - USE + C A R E G U I DE Important: Once the base unit has been Do not over- installed securely, press the extend the support leg. Ensure it support leg adjuster and does not push the base unit up extend the support leg foot...
  • Page 27 A VE R Y B A S E UN I T - USE + C A R E G U I DE Notes to ensure a safe installation using the ISOFIX system. Ensure the correct angle is achieved When the capsule is clipped into the base unit, it must sit at an angle which ensures your baby can rest with their head back and their airways open.
  • Page 28 A VE R Y B A S E UN I T - USE + C A R E G U I DE Removing the base unit 1 . Locate the red connector 2 . Push one of these downwards release button on both until the connector releases.

  • Page 29: Using The Avery Capsule With The Avery Base Unit

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Using the Avery Capsule with the Avery Base Unit Connecting the capsule to the base unit 1 . Position the capsule 2 .
  • Page 30 A VE R Y B A S E UN I T - USE + C A R E G U I DE Removing the capsule from the base unit 1 . Press the red capsule 2 . While holding the release release lever downwards.

  • Page 31: Safety Checklist

    Child Restraint Movement A securely installed child restraint reduces your child’s movement in a crash as safely as possible. Ensure your Avery Base Unit is installed with little to no sideways movement. Avery Capsule checklist: Maximum Weight Limit: 13kg The Avery Capsule has a weight limit of 13kg.

  • Page 32: How To Care For And Maintain Your Avery Base Unit

    Avery Base Unit IM P OR T A N T • NEVER lubricate or oil any part of the Avery Base Unit. • NEVER use solvents, harsh detergents or washing up liquids. • NEVER allow the Avery Base Unit to come into contact with corrosive substances such as battery acid or petroleum products.
  • Page 33 Store when dry, not damp or wet. Store away from direct sunlight. Direct sunlight could cause material damage and fading of manufacturer’s stickers. NEVER place heavy items on top of the Avery Base Unit. This may distort the plastic. Check regularly for wear and tear Check regularly for wear and tear on all Avery Base Unit parts.

  • Page 34: Determining The Base Unit's Expiry Date

    The Avery Base Unit has a 7 year life from its date of manufacture. Therefore, this example has an expiry date of 15 October 2028. The Avery Base Unit must not be used if it has passed its expiry date. Note: The date above is an example only and does not indicate the manufacture date of the base unit purchased with this manual.

  • Page 35: Warranty

    A VE R Y B A S E UN I T - USE + C A R E G U I DE Warranty All Edwards & Co products are guaranteed for two years from the date of shipping against defects in material and workmanship.
  • Page 36 Designed with love Watch helpful Come along instructional videos on the journey youtube.com/c/EdwardsCo @edwardsandcobaby Visit our comprehensive support centre online edwardsandcobaby.zendesk.com/hc/en-us EDWARDSANDCOBABY.COM...
