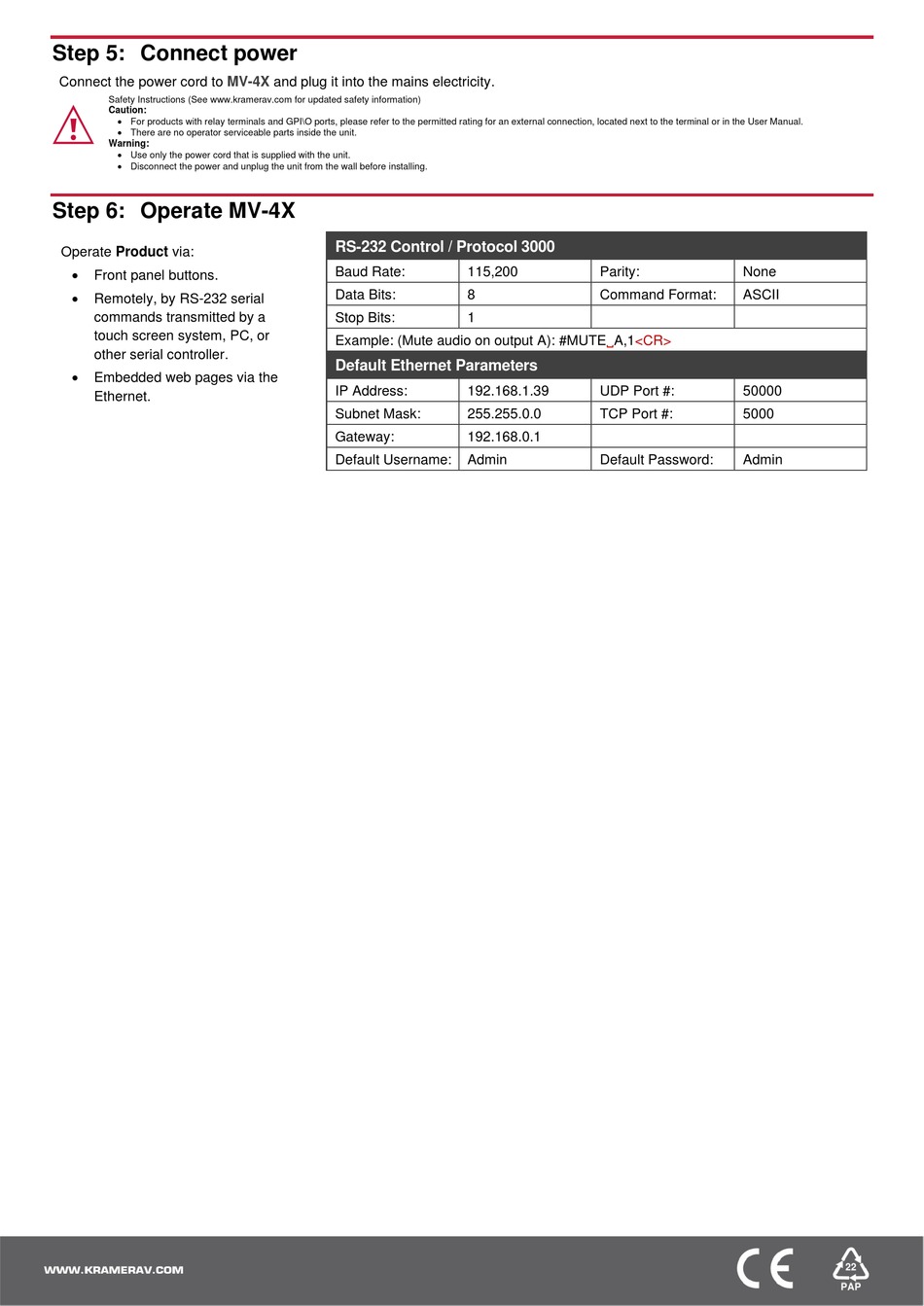

Kramer MV-4X Quick Start Manual page 4

Step 5: Connect power
Connect the power cord to MV-4X
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
Step 6: Operate MV-4X
Operate Product via:
•
Front panel buttons.
•
Remotely, by RS-232 serial
commands transmitted by a
touch screen system, PC, or
other serial controller.
•
Embedded web pages via the
Ethernet.
and plug it into the mains electricity.
RS-232 Control / Protocol 3000
Baud Rate:
Data Bits:
Stop Bits:
Example: (Mute audio on output A):
Default Ethernet Parameters
IP Address:
Subnet Mask:
Gateway:
Default Username:
115,200 Parity:
8 Command Format:
1
#MUTEA,1<CR>
192.168.1.39 UDP Port #:
255.255.0.0 TCP Port #:
192.168.0.1
Admin Default Password:
None
ASCII
50000
5000
Admin
