Kramer MV-4X Quick Start Manual page 3

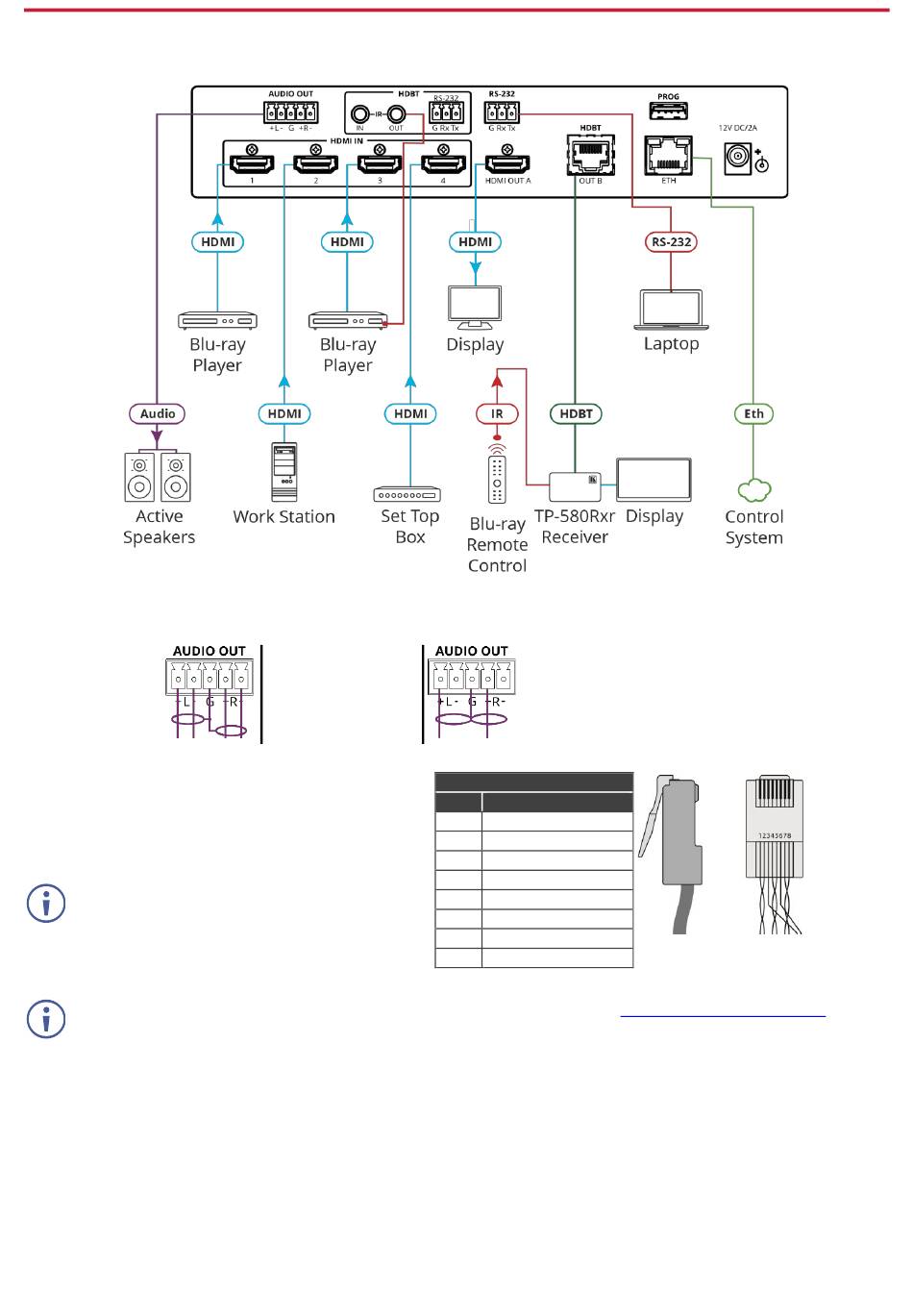

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your MV-4X.
Connecting the audio output
To a balanced
stereo audio
acceptor:
Wiring the RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-
pin cable with RJ-45 connectors.
For HDBT cables, it is recommended that the cable
ground shielding be connected/soldered to the
connector shield.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/MV-4X.
Using third-party cables may cause damage!
To an unbalanced
stereo audio acceptor:
EIA /TIA 568B
PIN Wire Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
