Kramer MV-4X Quick Start Manual page 2

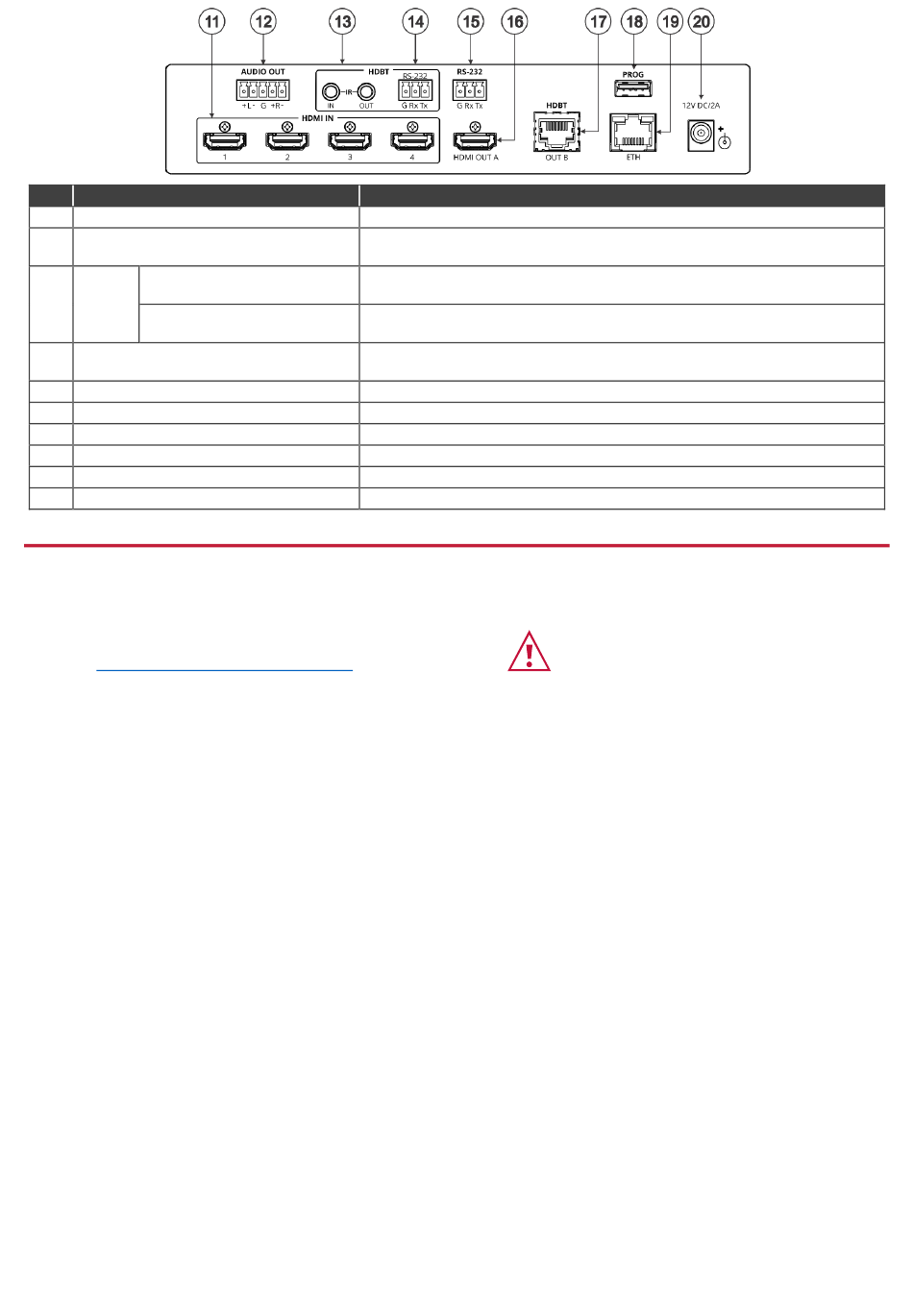

# Feature
11 HDMI IN Connectors (1 to 4)
12 AUDIO OUT 5-pin Terminal Block
Connector
13 HDBT IR IN RCA Connector
IR OUT RCA Connector
14 HDBT RS-232 3-pin Terminal Block
Connector
15 RS-232 3-pin Terminal Block Connector
16 HDMI OUT A Connector
17 HDBT OUT B RJ-45 Connector
18 PROG USB Connector
19 ETHERNET RJ-45 Connector
20 12V/2A DC Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Step 3: Mount MV-4X
Install MV-4X using one of the following methods:
•
Attach the rubber feet and place the unit on a flat surface.
•
Mount the unit in a rack using the recommended rack adapter
www.kramerav.com/product/MV-4X
(see
Function
Connect to up to 4 HDMI sources.
Connect to a balanced stereo audio acceptor.
Connect to an IR sensor to control a device connected to the HDBT receiver
via IR Tunneling.
Connect to an IR emitter to control a device that is connected to
the HDBT receiver side via HDBT tunneling.
Connect to a device for RS-232 HDBT tunneling.
Connect to a PC to control the MV-4X.
Connect to an HDMI acceptor.
Connect to a receiver (for example, TP-580Rxr).
Connect to a USB stick to perform firmware upgrades and/or upload a Logo.
Connect to a PC via a LAN
Connect to the supplied power adapter.
).
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
MV-4X from
