Summary of Contents for Kistler 601C Series
- Page 1 Instruction Manual Piezoelectric Pressure Sensors Type 601C… Type 603C… 60xC_002-741e-08.18...
- Page 2 Instruction Manual Piezoelectric Pressure Sensors Type 601C… Type 603C… 60xC_002-741e-08.18...
- Page 3 Information in this document is subject to change without notice. Kistler reserves the right to change or improve its products and make changes in the content without obli- gation to notify any person or organization of such changes or improvements.
-
Page 4: Table Of Contents
Piezoelectric Pressure Sensor Type 601C/603C Content Introduction ..........................3 General functional description ....................4 PE Pressure sensors ......................5 2.1.1 Measuring chain (PE) ..................... 5 2.1.2 Characteristics of PE sensors and measuring chains ..........6 IEPE pressure sensors ....................... 7 2.2.1 Measuring chain (IEPE) .................. -
Page 5: Introduction
Introduction 1. Introduction First of all we would like to thank you for trusting Kistler and using one of our sensors for your measurements. Please take the time to thoroughly read this instruction manual. It will help you with the installation, maintenance and use of this product. -
Page 6: General Functional Description
At the core of a piezoelectric pressure sensor there’s a synthetic crystal, with quartz being the most used materi- al by sensor manufacturers. Kistler additionally grows own high performance crystals called PiezoStar. Sensors based on PiezoStar crystals show several advantages over quartz based sensors as for example higher operat- ing temperatures, higher sensitivities, etc. -
Page 7: Pe Pressure Sensors
However a special high impedance cable supplied by Kistler is es- sential to transport the incredibly small charges. Kistler offers dual-mode (PE and IEPE) multi-channel... -
Page 8: Characteristics Of Pe Sensors And Measuring Chains
The charge signal of the PE sensor needs to be transmitted through a special high insulation re- sistance cable that can be purchased at Kistler. The use of cheaper standard cables leads to drift and is therefore not recommended. Also, high impedance cables should be protected against humidity. -
Page 9: Iepe Pressure Sensors
IEPE sensors and decouples the subsequent voltage signal. So you just see the pressure signal. Kistler offers dual-mode (PE and IEPE) multi-channel charge amplifiers with integrated IEPE-Coupler and DAQ (digital and analog outputs) which can be connected di- rectly away to a PC through an Ethernet cable or through its analog outputs to an external DAQ system. -
Page 10: Characteristics Of Iepe Sensors And Measuring Chains
Piezoelectric Pressure Sensor Type 601C/603C 2.2.2 Characteristics of IEPE sensors and measuring chains Only dynamic pressure measurements Whilst quasi-static measurements are possible with PE sensors, this is not the case for IEPE due to the fixed time constant in the built-in charge amp. Never- theless IEPE sensors are well suited to measure dy- namic pressures and pressure pulsations. -
Page 11: Equipment

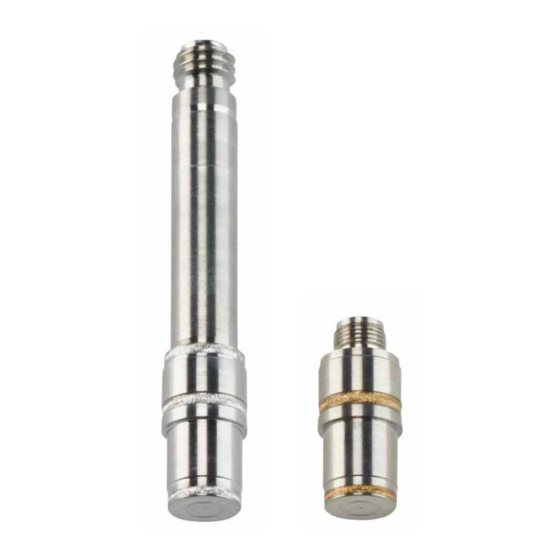

The sensor version with short housing was primarily de- veloped for customers that want to replace their current Kistler PE pressure sensor (e.g. 601A, 6001, 6031, etc.) but still keep using the older accessories (e.g. connecting nipples, adapters). -
Page 12: Sensor Dummy
Five replaceable copper seals of Kistler Type 1131 are part of each sensor delivery. Replacement seals as well as nickel seals of Kistler type 1131A can be ordered sep- arately. It’s recommended to replace the sensor seal each time the sensor get demounted and mounted again. -
Page 13: Adapter
Adapters include one tube of lubrication grease Type 1063. It’s strongly recommended to apply a thin film of lubricating grease of Kistler Type 1063 to the external thread of the adapter before mounting. The lubrication prevents seizing of the threads and surfaces when de- mounting the adapter as well as sealing against high pressures. -
Page 14: Mounting & Installation
Piezoelectric Pressure Sensor Type 601C/603C 4. Mounting & installation 4.1 Mounting options 4.1.1 Direct mounting When the mounting location space is restricted, the sen- sor can be located in an appropriately dimensioned mounting bore, and then held in place with a floating clamp nut. -
Page 15: Passage Mounting
Nominally, the suggested passage diameter would be equal or greater than 20% of the passage length. For more information on this please contact Kistler. 60xC_002-741e-08.18 Page 13... -
Page 16: Adapter Mounting
Piezoelectric Pressure Sensor Type 601C/603C 4.1.3 Adapter mounting Fitting sensors into a mounting adapter greatly simplifies the installation process (when space and wall thickness are not a premium). Use of a mounting adapter will elimi- nate the need to provide a precise mounting configura- tion and allow the installer to provide only a threaded hole of the size and depth required for the adapter se- lected. -
Page 17: Installation
It’s strongly recommended to apply a thin film of lubricat- ing grease of Kistler Type 1063 to the external thread of the adapter before mounting. The lubrication prevents seizing of the threads and surfaces when demounting the adapter as well sealing against high pressures. -
Page 18: Manufacturing Of Mounting Hole
4.3 Manufacturing of mounting hole 4.3.1 Direct mounting (ISO) The following procedure is recommended for the manu- facturing of the direct mounting bore with Kistler step drill type 1331 and for use with ISO floating clamp nut 6423B00 with a M7x0.75 thread. - Page 19 Mounting & installation 4. Stepped bore, use the Kistler step drill type 1331 to obtain the final dimensions of the direct mounting bore. The residual wall thickness is 5.9 mm. The sealing surface (shoulder) created by the step drill must meet following requirements: A surface flatness of 30 μm or less, no radial chatter marks and a...
-
Page 20: Direct Mounting (Ansi)
Piezoelectric Pressure Sensor Type 601C/603C 4.3.2 Direct mounting (ANSI) The following procedure is recommended for the manu- facturing of the direct mounting bore with Kistler step drill type 1331 and for use with ANSI floating clamp nut 6423B11 with a 5/16-24 UNF thread. - Page 21 Mounting & installation 4. Stepped bore, use the Kistler step drill type 1331 to obtain the final dimensions of the direct mounting bore. The residual wall thickness is 0.232″. The sealing surface (shoulder) created by the step drill must meet following requirements: A surface flatness of 0.001″...
-
Page 22: Adapter Mounting (Iso)
Piezoelectric Pressure Sensor Type 601C/603C 4.3.3 Adapter Mounting (ISO) The following drawings show the mounting bore for all of the available ISO adapters. Fig. 11: Mounting bore for 6503C0A adapter Fig. 12: Mounting bore for 6507B0A adapter 4.3.4 Adapter Mounting (ANSI) The following drawings show the mounting bore for all of the available ANSI adapters. -
Page 23: Maintenance And Calibration
Long time constant mode. Kistler pro- vides special insulation testers, such as Type 5493, to measure insulation resistance of high impedance cables. - Page 24 However never use air-blast to clean the connectors; it will unavoidably deposit a film of water vapour. Instead Kistler strongly recommends the use of cleaning spray Type 1003. Please contact your local sales centre should, after cleaning all connectors, drift or measure- ment of low insulation persist after cleaning all connect- ors.
-
Page 25: Calibration
(sensor, cable, charge amplifier and data acquisition unit) should be considered. Re-calibration can be done in one of Kistler’s local tech offices or centres or by the customer itself if the appropri- ate calibration equipment has previously been bought. -
Page 26: Conformity Declaration
EC Declaration of Conformity EG-Konformitätserklärung Déclaration de conformité CE The manufacturer / Der Hersteller / Le Fabricant: Kistler Instrumente AG, Eulachstrasse 22, CH-8408 Winterthur, Switzerland hereby declares that the product / erklärt hiermit, dass das Produkt / déclare que le présente produit:...
