  • Page 1 Instruction Manual Correvit SF-Motion: non-contact optical sensors Type 2059A... 2059A_002-956d-07.21...
  • Page 3 © 2021 Kistler Group. Kistler Group products are protected by various intellectual property rights. For more details visit www.kistler.com. The Kistler Group includes Kistler Hold- ing AG and all its subsidiaries in Europe, Asia, the Ameri- cas and Australia.

  • Page 4: Table Of Contents

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... Contents Introduction ..........................4 Important remarks ........................5 For your safety ........................5 Disposal instructions for electrical and electronic equipment ..........6 Software upgrades and updates ..................6 Product description ........................7 General ..........................7 Features ..........................8 Application ..........................8 Accessories ........................8 Technical data ...........................10 Specifications ........................10 Pin assignments .......................12...
  • Page 5 KiCenter Software ........................29 Toolbar ..........................29 6.1.1 Explanation of the buttons in the toolbar .............30 S-Motion sensor settings ....................32 6.2.1 Sensor node ......................33 6.2.2 Measurement display ..................34 6.2.3 Sensor configuration ...................35 6.2.4 Digital output .......................38 6.2.5 Analog output ......................39 6.2.6 CAN Bus ......................40 6.2.7 Input channel settings ..................43 6.2.8...

  • Page 6: Introduction

    Where permitted by law, Kistler accepts no liability if this instruction manual is disregarded or if products other than those listed under accessories are used.

  • Page 7: Important Remarks

    2. Important remarks 2.1 For your safety Observe the following remarks before you commission the device. Kistler accepts no responsibility for damages that could arise from improper use of this product. Prerequisite for the proper and safe use of the device...

  • Page 8: Disposal Instructions For Electrical And Electronic Equipment

    Should it be necessary to use your own cables, always pay attention to the correct pin assignment. Kistler accepts no liability for damages caused by the use of cables other than those supplied by Kistler. For further information, please contact Kistler: +49 70 31 30 90 0 info.de@kistler.com...

  • Page 9: Product Description

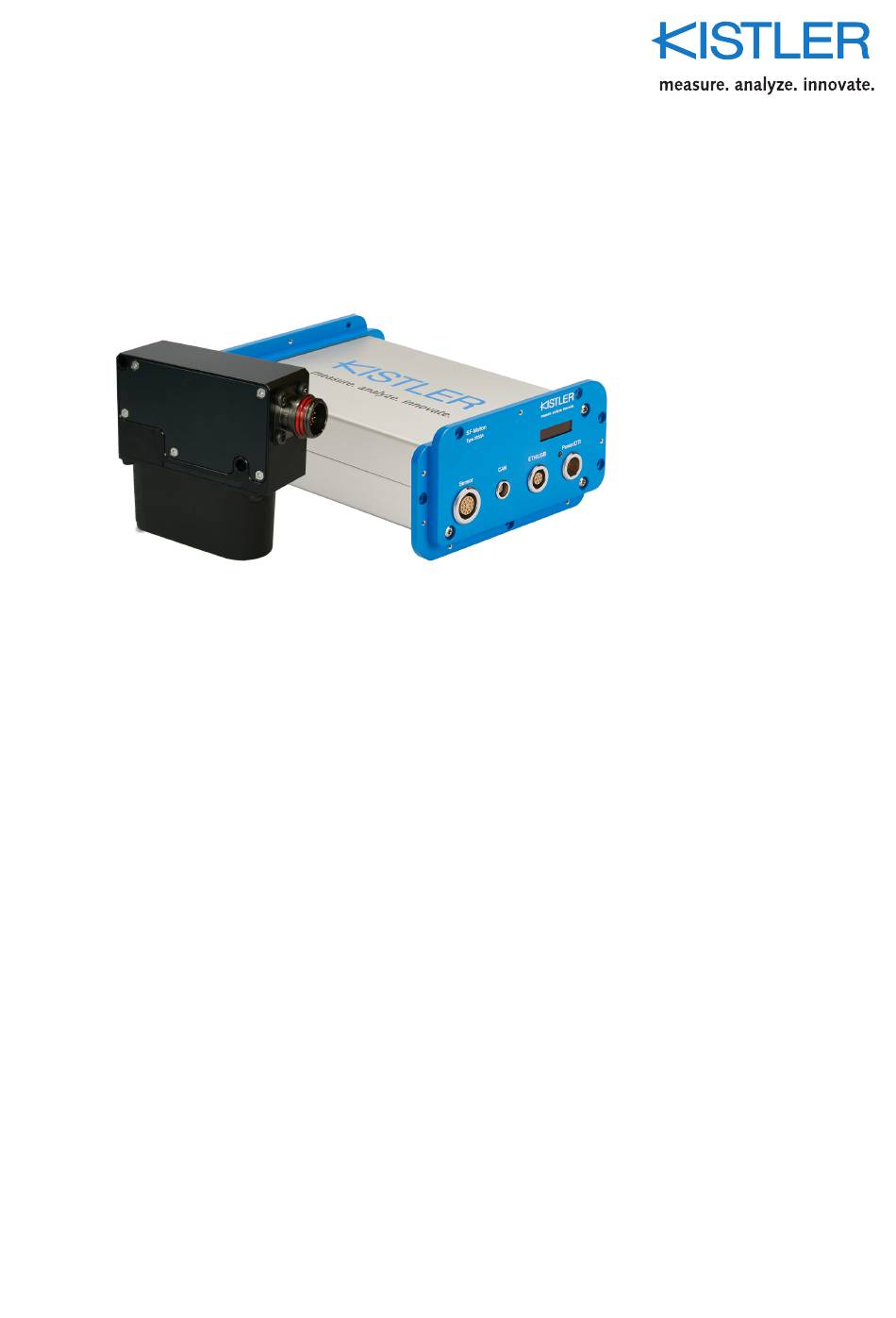

    Product description 3. Product description 3.1 General Correvit SF-Motion sensors are especially designed for motor sports applications to measure longitudinal and transverse vehicle dynamics. Correvit SF-Motion sensors use the proven Correvit technology. A special algorithm significantly reduces the signal noise. This algorithm and the high measurement frequency of 500 Hz enable a minimal signal delay of 6 ms.

  • Page 10: Features

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 3.2 Features ƒ Reduced signal noise of speed and side-slip angle ƒ Low signal delay of 6 ms ƒ Conversion of measurands to any point of the vehicle ƒ Capable of detecting driving direction – forward or backward ƒ...

  • Page 11: Technical Data

    Technical data 4. Technical data 4.1 Specifications Performance specifications Speed km/h ±400 Distance resolution ≤1 Measurement accuracy %FSO <±0.2 Angle ° ±30 Angle resolution ° <±0.01 Measurement accuracy angle Typical <±0.1 Guaranteed ° <±0.2 Angular speed °/s ±2,000 Acceleration ±16 Non-linearity Angle speed %FSO...

  • Page 12: Pin Assignments

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 4.2 Pin assignments Fig. 1: SF-Motion electronics, Type 2059A, connector view front plate Power/DTI, 8-pin LEMO 1B, connector Signal internal use internal use internal use internal use Vin_Ext Vin_Ext GND_Ext GND_Ext ETH/USB, 7-pin LEMO 1B, socket Signal TX–...
  • Page 13 Technical data CAN, 7-pin LEMO 0B, socket Signal CAN high CAN low A description of the pin assignments for sensor connector and GPS connector is not necessary for the intended use of the sensor. 2059A_002-956d-07.21 Page 11...

  • Page 14: Mounting And Connection

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 5. Mounting and connection 5.1 Mounting options With Kistler mounting equipment (see below: optional accesso ries). When mounting the sensor at the vehicle, the mounting distance from the lower surface of the sen- sor body (not including the spray guard) to the road must be 180 ±50 mm.

  • Page 15: Sensor Mounting Diagram

    Mounting and connection 5.2 Sensor mounting diagram Plug: male 19 pol. Key N Lemo M2 Mounting hohles Montagebohrungen Ø5 (2x) 65,8 26,3 Fig. 3: Correvit SF-Motion sensor head dimensions 2059A_002-956d-07.21 Page 13...

  • Page 16: Coordinate Systems

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 5.3 Coordinate systems 5.3.1 Body coordinate system Fig. 4: Body coordinate system X-axis: forward direction of the car Y-axis: perpendicular to the X-axis, left direction of the car Z-axis: perpendicular to the X-axis, up direction of the car 5.3.2 Horizontal coordinate system Fig.

  • Page 17: Bandwidth Or Cut-Off Frequency

    Mounting and connection 5.3.3 Bandwidth or cut-off frequency The bandwidth of the SF-Motion sensor is limited by the processor clock. The processor location clock rate is 500 Hz. With the filter deactivated, the processor has an approximate bandwidth of 220 Hz. The following formula can be used as a rule of thumb: Bandwidth = 220 Hz * 2 ms / filter time.

  • Page 18: Mounting Instructions

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 5.4 Mounting instructions 5.4.1 Installing with magnetic holder Magnet release device Stabilizing rod 1 Stabilizing rod 2 Locking lever Magnet Spirit level Mounting plate incl. screws Magnet release device Fig. 6: 6-point magnetic holder, part. no. 18012545 You can attach the magnetic holder either horizontally or vertically.
  • Page 19 Mounting and connection Fig. 8: Lateral mounting with 6-point magnetic holder Mount the stabilizing element on the magnetic plate holder. Take the pre-mounted magnetic plate holder and place it on the side of the vehicle body. The magnets adhere to the vehicle body on their own, provided it is not made of plastic or aluminum.
  • Page 20 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... Adjust the sensor mounting plate with the help of the built- in spirit level so that it is perpendicular to the road surface and then tighten the lever. Fig. 10: Installation with magnetic holder, step 2 Attach the SF-Motion sensor to the lower mounting plate.

  • Page 21: Installing With Suction Holder

    Mounting and connection 5.4.2 Installing with suction holder Pump piston Suction holder Stabilizing rod 1 Locking lever Stabilizing rod 2 Locking lever Suction holder Spirit level Mounting plate incl. screws Pump piston Fig. 13: 3-point suction holder, part no. 18012551 The mounting surface must be clean and free of grease and oil, as the suction holder will not otherwise adhere completely, if at all.
  • Page 22 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... pistons several times until suction is fully applied to the suction holders. If the red warning ring is no longer visible, the suction holder can be used. Fig. 14: Lateral mounting with 3-point suction holder Page 20 2059A_002-956d-07.21...
  • Page 23 Mounting and connection Check the pump pistons frequently during the application to make certain that the suction holders are still securely attached! If the red warning ring becomes visible, this means that the suction holders are beginning to loosen. Interrupt use and actuate the pistons until the red ring is no longer visible.

  • Page 24: Installing The Safety Line

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 5.4.3 Installing the safety line Place the safety line around the stabilization element. Fig. 15: Installing the safety line, step 1 Mount the metal clamp. Fig. 16: Installing the safety line, step 2 Adjust the line length as required.
  • Page 25 Mounting and connection Secure the safety line to the vehicle, for example, to the side window as shown to the left Fig. 18: Installing the safety line, step 4 Make sure the that metal clamp of the safety line does not come into contact with the car body, as paint damage may otherwise occur.

  • Page 26: Connecting The Sensor

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 5.5 Connecting the sensor Fig. 19: SF-Motion Elektronik Typ 2059A, Steckeransicht Frontplatte ƒ Take the sensor cable and connect the sensor signal output to the signal input of the electronics. ƒ Connect the electronics and the data acquisition with: - Connecting cable DTI or - Connecting cable CAN or The CAN bus of the SF-Motion electronics is equipped...

  • Page 27: Kicenter Software

    KiCenter Software 6. KiCenter Software 6.1 Toolbar The toolbar is divided into three categories ƒ Database Operations ƒ Connection ƒ Tools Fig. 20: Device Center, toolbar 2059A_002-956d-07.21 Page 25...

  • Page 28: Explanation Of The Buttons In The Toolbar

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 6.1.1 Explanation of the buttons in the toolbar 1. Database operations Transferring the current settings from KiCenter to the device. Reads the current settings from the device. Changes that were made in KiCenter but were not then transferred to the device are lost in the process.
  • Page 29 KiCenter Software Config serial All devices that have only USB or USB and RS-232C on the front panel, regardless of the connection used (USB or RS-232C). Config net All devices that have a network port on the front pan- el, regardless of the connection used (LAN or USB). Using the checkboxes, even more precise searching is possible.

  • Page 30: S-Motion Sensor Settings

    The KiCenter software is needed to configure and calibrate the sensor. The software can be found on the included USB stick or at www.kistler.com. To connect the sensor to KiCenter, it must be connected to the computer using either the USB connecting cable or a LAN cable.

  • Page 31: Sensor Node

    KiCenter Software 6.2.1 Sensor node If the SF-Motion sensor (serial number) node is selected, the status page appears in the work area. Displayed here are the most important pieces of information and settings for the connected SF-Motion sensor. The illumination can be switched either on or off during configuration.

  • Page 32: Measurement Display

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 6.2.2 Measurement display On the “Measurement Display” page, the current measurement values of the SF-Motion sensor are displayed. This is used to monitor the function of the sensor. If no or implausible values are received on a given signal output, the measurement display can be used to perform a comparison.

  • Page 33: Sensor Configuration

    KiCenter Software 6.2.3 Sensor configuration Various options for the use of the sensor can be set on the “Sensor Configuration” page. Fig. 23: Screen view of the sensor configuration page 1. Calibration settings Distance calibration factor Displays the values calculated during calibration on the “Device Calibration”...
  • Page 34 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 2. Filter settings Filter activate Activation of a moving average filter that is applied to all output signals. Average time Affects all output signals. The filter time results from the set number of measured values multiplied by the sensor measuring cycle of 2 ms.
  • Page 35 KiCenter Software Standstill angular velocities The sensor detects a standstill if the maximum ampli- tudes of the angular velocities are within the specified range. While at a standstill, the offsets are automatically adjusted. Base setting: ±3.0 °/s Mounting direction Select from “Normal” and “Reverse”. If the sensor is mounted opposite the normal alignment (arrow on the sensor), the “Reverse”...

  • Page 36: Can Bus

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 6.2.4 CAN Bus On the “CAN Bus” page you can configure the CAN Bus according to your requirements. Fig. 24: Screen view of the "CAN Bus" page 1. CAN settings Baud rate Presetting: 1 MBaud Rate of transmission of the CAN bus protocol.
  • Page 37 KiCenter Software If multiple S-Motion sensors are in use, they may be dif- ferentiated by setting individual sensor IDs. This may be needed, for example, to identify later which sensor was used for a measurement. 2. Send modes Continuous send mode Data is continuously sent with the set interval time.
  • Page 38 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 4. Create CAN DB KiCenter provides the option to create CAN database files (CAN DB). Only the status page provides the option for generating CAN DB files. To start the generation of a CAN DB file, click the “Create CAN DB”...

  • Page 39: Firmware Update

    KiCenter Software 6.3 Firmware update Due to the continuous development of our sensors, an update of the sensor firmware is sometimes necessary. This chapter describes how this is done using KiCenter. Before you start the firmware update, please be sure that the data connection between the computer and the sen- sor as well as the power supply of the computer and sen- sor are correct.
  • Page 40 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... Fig. 27: Screen view: “Firmware Update”, step Please make sure that both, the data connections and the power supply, are correct and then confirm this message by clicking “OK”. Step 2: selecting the firmware file Next, you will be prompted to select the firmware file (*.fwu) you want to write to the sensor.

  • Page 41: Troubleshooting

    Troubleshooting 7. Troubleshooting 7.1 Cables and power supply ƒ Check all connections to determine that each one is complete and that the system is connected to a power supply that provides voltage output within the specified range. ƒ Check that the correct cables have been used for all connections.

  • Page 42: Operating Range

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 7.5 Operating range Mounting the sensors outside of the recommended mounting height leads to sensor standstill while the vehicle is moving, i.e., no signals can be output. Please check mounting height and change if necessary. 7.6 Software ƒ...

  • Page 43: Environmental Conditions

    The manufacturer's calibration is valid for a period of 12 months. With the SF-Motion sensor you have purchased a premium, high-precision product. To assure continued optimum performance, we recommend that you send it to Kistler once a year for inspection, maintenance, and calibration. 2059A_002-956d-07.21 Page 41...

  • Page 44: Appendix

    SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 8. Appendix A. Dimensions 1. Sensor head Plug: male 19 pol. Key N Lemo M2 Montagebohrungen Ø5 (2x) 65,8 26,3 Page 42 2059A_002-956d-07.21...
  • Page 45 Appendix 2. Electronics 125,4 2059A_002-956d-07.21 Page 43...
  • Page 46 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... B. Connection problems KiCenter/PC Please always use the latest KiCenter version. You will find it at www.kistler.com. 1. Overview The following flow charts show the possible ways to solve connection problems between KiCenter and PC.
  • Page 47 "!" in front of its name? (Section 3 on page 49) Solution: Device driver is missing! Hardware damage! Please install the driver using the Please contact alternate method. Kistler support. (Section 4 on page 51) 2059A_002-956d-07.21 Page 45...
  • Page 48 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... Flow chart 3: Ethernet troubleshooting Ethernet troubleshooting Is DHCP activated in I don't know the device? Solution: Check the network settings of the device via USB! How is the device connected? Is the static address conform with the network? (Please contact your system administrator.)
  • Page 49 Software (KiCenter)" visible in the firewall? (Section 5 on page 53) Solution: Add KiCenter to Is the checkbox "Public your firewall. networks ..." checked? (Section 6 on page 55) Solution: Please contact Kistler support Assign the required rights in KiCenter. 2059A_002-956d-07.21 Page 47...
  • Page 50 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 2. Is the device visible in the adapter settings? Open system control/network and internet/network connections. Here you will find the entry “MFB2” or “Kistler Device”. Page 48 2059A_002-956d-07.21...
  • Page 51 3. Using the USB connection with Windows 10 When a device is first connected, Windows recognizes Kistler sensors of the latest generation (e.g. S-Motion type 2055A.../2053A..., MSW type 5612A..., etc.) as „USB Serial Port”, which does not allow communication with KiCenter.
  • Page 52 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... For each additional device in the same group, it is not necessary to perform this step again. Page 50 2059A_002-956d-07.21...
  • Page 53 Appendix 4. Were the network address and alternate network address obtained automatically from the PC? If so, right-click on the network connection (see below) and select “Properties”. Bild: DE_Netzwerkeinstellungen.png The following screen appears: E_Netzwerkeinstellungen2 Select Internet Protocol Version 4 (TCP/IPv4) and click on “Properties”. 2059A_002-956d-07.21 Page 51...
  • Page 54 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... The follwing screen appears: Make sure that “Obtain an IP address automatically” is selected. Click on “Alternate Configuration” ..and make sure that “Automatic private IP address” is also selected here. Page 52 2059A_002-956d-07.21...
  • Page 55 Appendix 5. Firewall settings If no connection comes about although a network connection via USB RNDIS or Ethernet is established, the firewall maybe blocks the connection. The description applies to the Windows firewall. Other firewalls differ regard- ing look and handling; the functions, however, should be identical. If in doubt, please contact your system administrator.
  • Page 56 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... 2. Select “Allow an app or feature through Windows Firewall”.. Bild: DE_Firewall_allowed_Apps_public Check if the list of the allowed programms contains the entry “Configuration Software”. 3. If “Configuration Software” is not included in the list, it may added manually (see next sec- tion).
  • Page 57 “Change settings” at the top right to allow changes. A list of programs appears. Bild: DE_Firewall_allowed_Apps_add_KiCenter2 If the list does not contain “Configuration Software”, click on “Browse...” and search the “ KiCenter.exe” file. The usual path is C:\Program Files (x86)\Kistler\KiCenter. 2059A_002-956d-07.21 Page 55...
  • Page 58 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... Bild: DE_Firewall_allowed_Apps_add_KiCenter After clicking on “Open”, the entry “Configuration Software” should appear in the list. Before you click “Add” to finish the process, you should check the “Network Types” settings. Bild: DE_Firewall_allowed_Apps_add_KiCenter All entries should be checked. Page 56 2059A_002-956d-07.21...
  • Page 59 Appendix C. Signalbeschreibung Correvit SF-Motion Type 2059A... Non-contact optical sensors calculation applies horizontal cordinate system SF-Motion signal description body coordinate system Signal name Unit Description Direction B H P VelX km/h Longidudinal velocity. Generated from optical velocity and IMU signals forward VelY km/h Transverse velocity.
  • Page 60 SF-Motion: non-contact optical sensors, Type 2059A..., 2059A... calculation applies SF-Motion signal description horizontal cordinate system body coordinate system Signal name Unit Description Direction B H P AngVelX_hor °/s Angular velocity around X-axis right AngVelY_hor °/s Angular velocity around Y-axis. Pitch rate forward AngVelZ_hor °/s...
  • Page 61 Appendix SF-Motion signal description Signal name Description SensorID User-specific number that can be set in KiCenter on page "CAN Bus" Temperature Temperature inside the sensor head LampCurrent Current consumption of halogen lamp FilterSetting Number of samples used for averaging if filter is activated 0 –...
