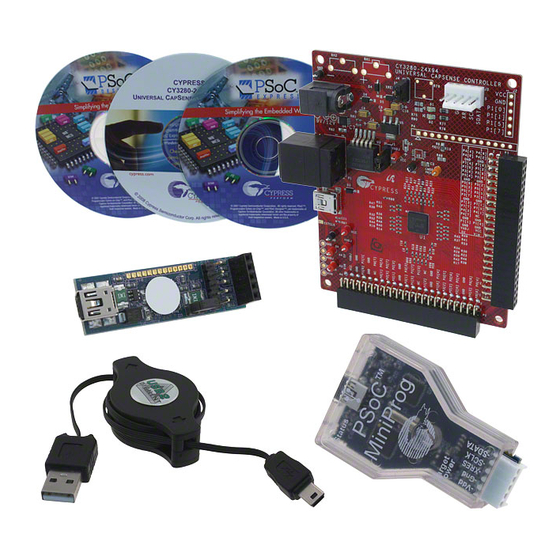

CY3280-24x94 UNIVERSAL CAPSENSE
1

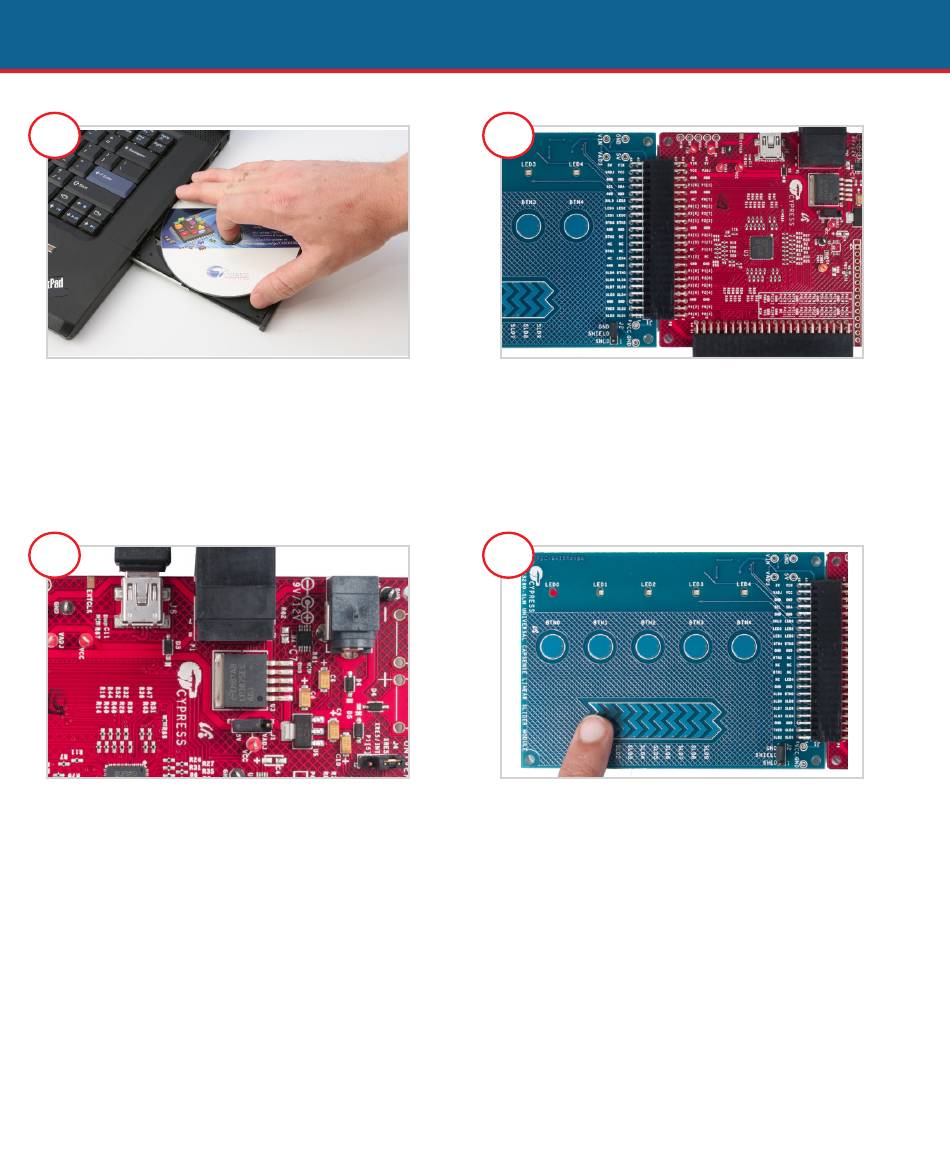

1. Insert the DVD in the DVD drive.
2. Install the kit contents, PSoC
Designer, and PSoC Programmer.
3. After the installations, you can use
PSoC Designer to customize existing
code examples or to create new ones.
3
1. Place the shunt between 5 V and
VCC of jumper J1.
2. Plug in the USB cable to the
CY3280-24x94 UCC board.
QUICK START GUIDE
2
1. Unpack the CY3280-24x94
Universal CapSense Controller (UCC)
Board.
2. Connect the CY3280-SLM board (to
be purchased separately) to the P2
connector.
4
1. Touch the CapSense button or slider.
2. The respective LEDs light up.
®
CONTROLLER KIT
