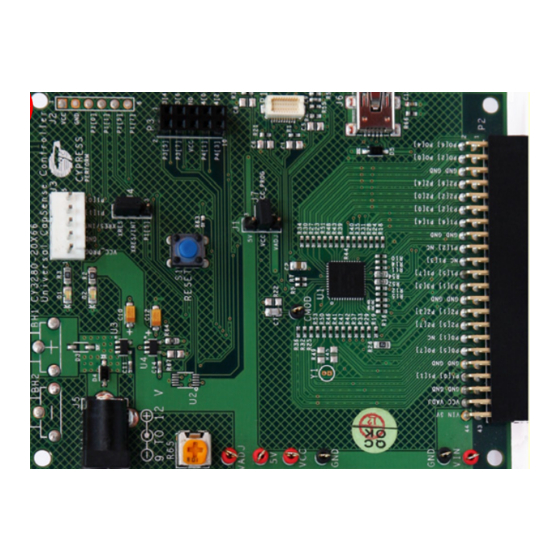

CY3280-20X66 UNIVERSAL CAPSENSE CONTROLLER KIT
1
Remove CY3280-20x66 Universal
CapSense Controller Board from package.
Connect the CY3280-SLM board (to be
purchased separately) to the P2 connector.
3
Touch the CapSense button or slider. The
respective LEDs lights up.
QUICK START GUIDE
2
Ensure that shunt is placed between 5 V
and VCC of jumper J1. Plug in the USB
cable to the CY3280-20x66 Universal
CapSense Controller Board.
4
Insert the kit CD into the CD drive of your
PC. Install the kit contents, PSoC Designer,
PSoC Programmer, and Bridge Control
Panel. After the kit contents and software
are installed, PSoC Designer can be used
to customize existing example projects or
create new ones.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cypress CY3280-20X66
Summary of Contents for Cypress CY3280-20X66
- Page 1 CY3280-20X66 UNIVERSAL CAPSENSE CONTROLLER KIT QUICK START GUIDE Remove CY3280-20x66 Universal Ensure that shunt is placed between 5 V CapSense Controller Board from package. and VCC of jumper J1. Plug in the USB Connect the CY3280-SLM board (to be cable to the CY3280-20x66 Universal purchased separately) to the P2 connector.
- Page 2 Mini B USB Connetor CapSense Module Connector For the latest information about this kit visit www.cypress.com/go/CY3280-20x66 © 2011 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the properties of their respective owners. DOC#: 001-53020 REV *A...
