Cypress CY3280-BK1 Quick Start Manual

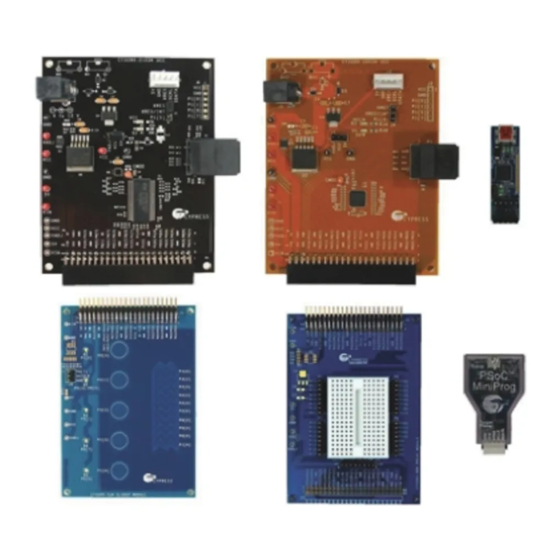

CY3280-BK1 UNIVERSAL C
1

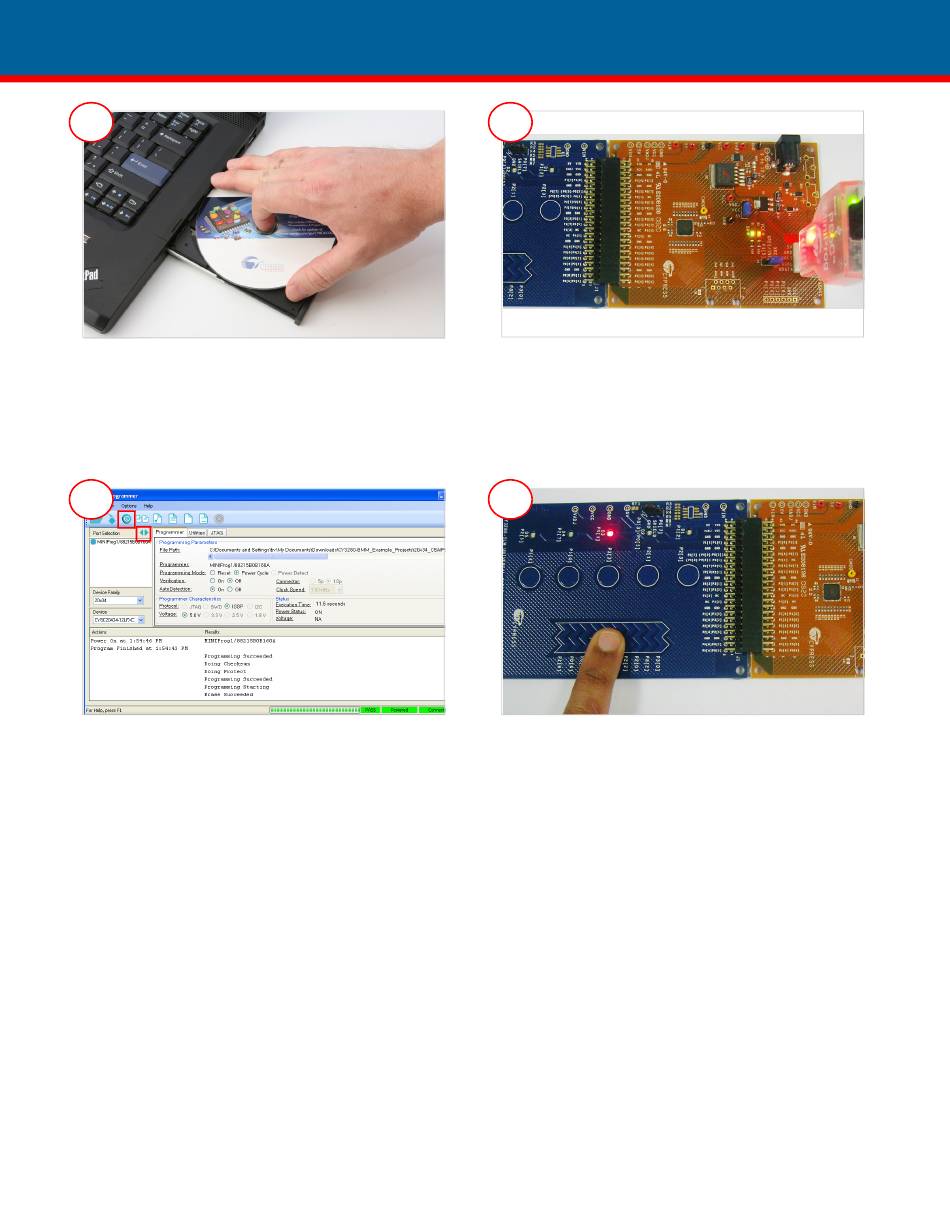

1. Insert the kit CD/DVD into the CD/DVD drive of your PC.
2. Install the kit contents, PSoC Designer, and PSoC Programmer,
by clicking on the Install CY3280-BK1... button.
After installation, the kit contents are available at
<Install_Directory>:\Cypress\CY3280-BK1\<version>
3
1. Connect the MiniProg1 to the CY3280-20x34 UCC board's
ISSP connector (J3). Connect it to your PC using an USB A to
mini-B cable.
2. Open PSoC Programmer.
3. Click Connect; connect MiniProg1 to your PC.
4. Click the Toggle button to power the board.
Repeat steps 2, 3, and 4 to test the CY3280-21x34 CapSense Controller.
For assistance, go to http://www.cypress.com/go/support, or contact our customer support at +1 (800) 541-4736 Ext. 8 (in the USA) or
+1 (408) 943-2600 Ext. 8 (International)
®
S CONTROLLER BASIC KIT 1
AP ENSE
QUICK START GUIDE
2
1. Connect the CY3280-SLM board to the CY3280-20x34 UCC
board's P2 connector.
2. In the CY3280-20x34 board, ensure that the jumper is placed
on header J1 to short pins 2 and 3 (Vcc and 5 V).
3. In the CY3280-SLM board, ensure that the jumper is placed on
header J2 to short pins 2 and 3 (Shield and Ground pins).
4
1. Touch and move your finger over the linear slider on the
CY3280-SLM module board. The corresponding LEDs on the
CY3280-SLM board light up.
2. Touch a button. The corresponding LED on the CY3280-SLM
module board lights up.
3. You can touch multiple buttons simultaneously. The linear slider
and buttons can be used at the same time.
