Sodex Sport S12119 Quick Start Manual

DESCRIPTION

Steel structure Ø80
Powder coated
5.00m x 2.00m
CONFORM
European norm
EN 748
The assembly time for this goal is estimated at 30 minutes with 2 people (without sealing).
According to the regulation above, this product has to be tested like below:
- Put 180kg at 20cm from the ground and in the middle of the crossbar during 1min.
- Apply an horizontal force of 110 kg on the middle of the crossbar, thanks to a 3 meters rope, during 1min.
After these tests, the equipment and the fixation system should not have break, move or show residual defor-
mation.
During the first installation, stability and strength tests are compulsory.
Every time you install the equipment, a visual check of the stability and strength must be realized.
The owner of this equipment must usually control the product.
For an optimal use of our products, we advise to follow the installation and maintenance instructions.
The equipement has to be regularly maintained by the owner. It is adviced to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to be done
within the legal period of the reception of the material. The warranty will not apply to:
- All degradation during the transport.
- All degradation due to use differing from which was intended.
- All degradation due to poor maintenance.
- Any defect claimed after the end of the legal period.
- Any damaged due to a faulty installation and assembly of the module.

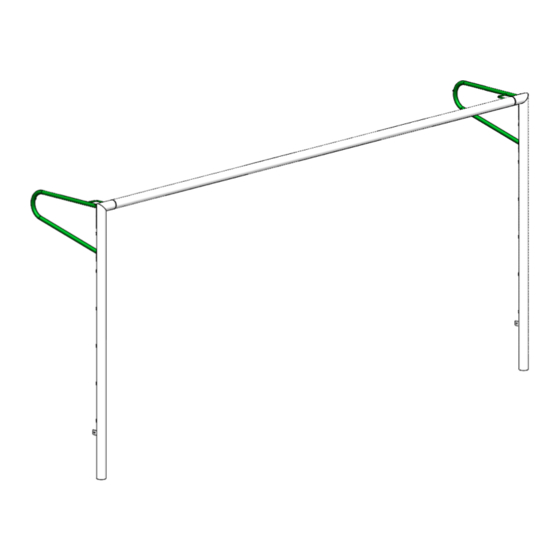

STEEL FOOTBALL GOALS 5x2M WITH
TOP NET SUPPORT, SOCKETED
PRODUCT REF
Assembly TIME

TEST AFTER INSTALLATION

MAINTENANCE

WARRANTY

PRODUCT SHEET
S12119
:
PAIR
