Pro Fitness 302/1512 Assembly Instructions

Punchbag wall bracket

Download this manual

Punchbag Wall Bracket

302/1512

Components - Parts

Components - Fixings

Assembly Instructions

Important: Ensure there are no

electrical cables or water pipes

in the wall before drilling any

holes.

Ensure that the wall or beam

that you attach the Punchbag

bracket to, is of sound

construction.

Mark and drill fixing holes using

a 12mm drill bit. Attach the

bracket and Chain link to the

wall.

The bracket must be fixed to a

solid surface and not a cavity

or plaster board wall.

Ensure the Punchbag bracket

is securely attached before

each use.

Ensure the Punchbag is

securely attached to the Safety

hook.

Each expansion bolt shall

support at least 75kg loading.

Page 1 Punchbag Wall Bracket 302/1512 Components - Parts Components - Fixings Assembly Instructions Important: Ensure there are no electrical cables or water pipes in the wall before drilling any holes. Ensure that the wall or beam that you attach the Punchbag bracket to, is of sound construction.

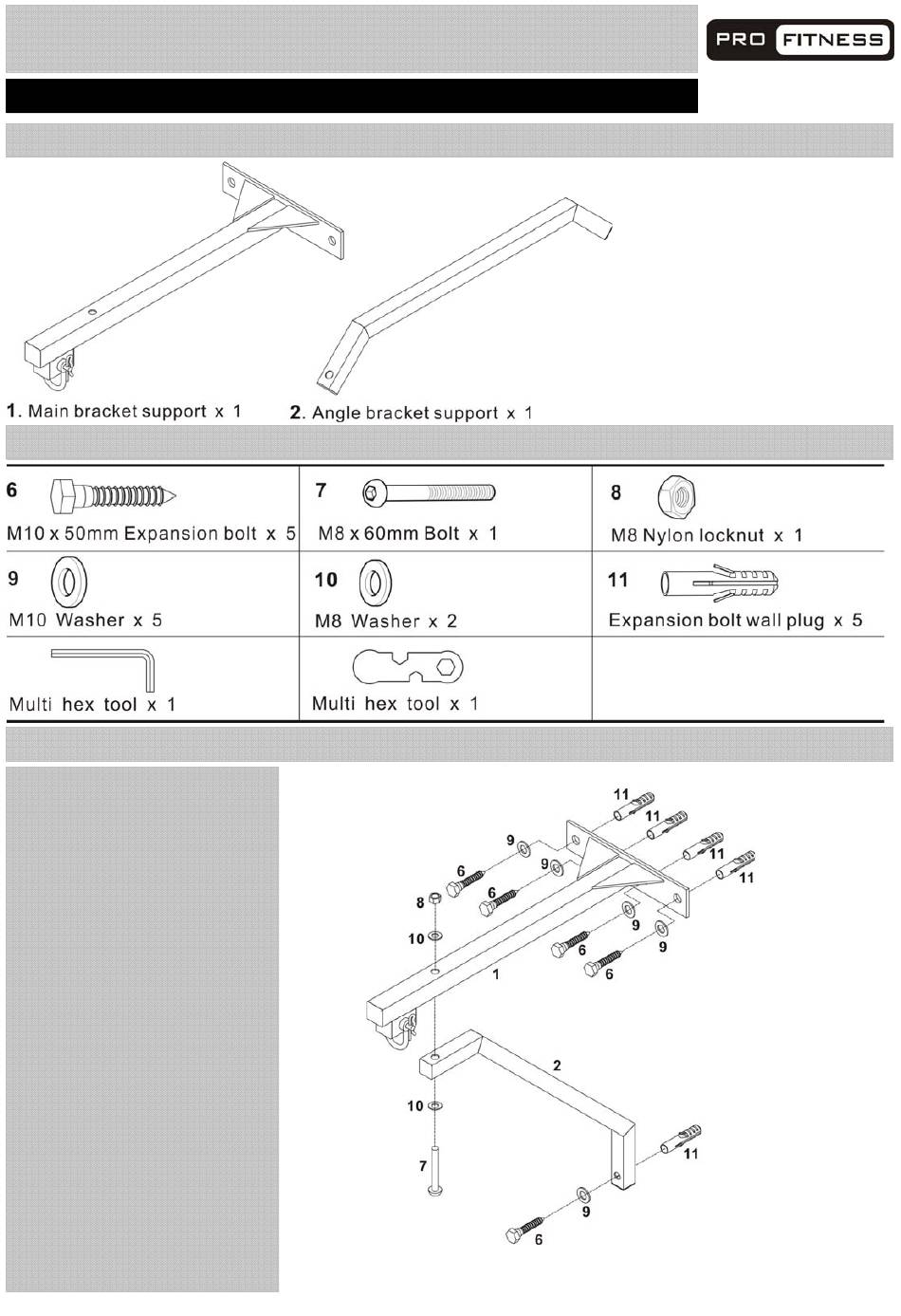

Page 2 Punchbag Wall Bracket Exploded Parts Diagram List Part Description Main bracket support Angle bracket support Sliding bracket Locking pin Cotter pin M10 x 50mm Expansion bolt M8 x 60mm Bolt M8 Nylon locknut M10 Washer M8 Washer Expansion bolt wall plug 25mm Square inner cap 20mm Square inner cap Exploded Parts Diagram...
Page 3 Safety Information Warnings This product weights about 1.3kg and occupies 0.8 square foot when fully assembled. The hanging load for this equipment, MUST not be over 100kg. Check and make sure all parts are fastened before usage. The product shall be placed and used on a flat wall surface. The safety level of the equipment can be maintained only if it is examined regularly for damage and wear, e.g.
