    English Manual PAN MV-690A / MV-690B Voltage tester with LED Display / LCD Display Contents Introduction .................... 3 Scope of delivery ..................3 Safety Instructions .................. 4 Symbols Description ................5 Panel Description ..................6 General Specifications ................9 Operating Instructions ................11 Maintenance ..................

  • Page 3: Introduction

    English 1. Introduction Thank you for purchasing PANCONTROL. Since 1986, the PANCONTROL brand has stood for practical, innovative and professional measuring instruments. We hope you enjoy using your new product and we are convinced that it will serve you well for many years to come.

  • Page 4: Safety Instructions

    English 3. Safety Instructions To ensure the safe use of the device, please follow all the safety and operating instructions given in this manual. Before using the device, make sure that it is intact and is functioning properly. The device must no longer be used if the housing is damaged, if one or more functions fail if no function is displayed, or if you suspect that something is not right.

  • Page 5: Symbols Description

    English 4. Symbols Description Conforms to the relevant European Union directive (EN-61010) Product is protected by double insulation Risk of Danger. Important information See instruction manual Attention! Hazardous voltage. Risk of electric shock. This product should not be disposed along with normal domestic waste at the end of its service life but should be handed over at a collection point for recycling electrical and electronic devices.

  • Page 6: Panel Description

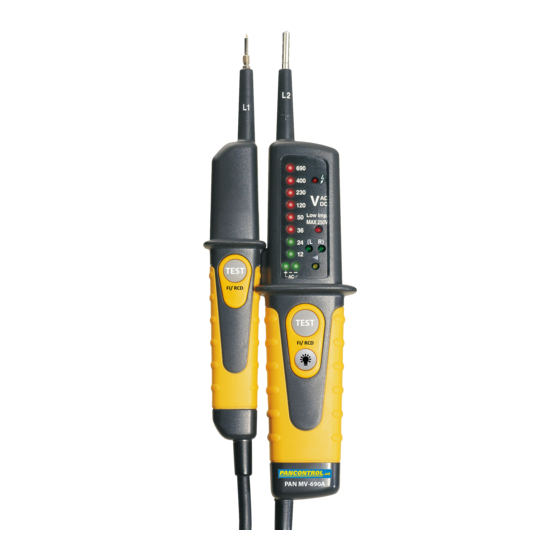

    English 5. Panel Description MV-690 A...
  • Page 7 English MV-690 B...
  • Page 8 LED flashlight (Point Illumination) LED Display (PAN MV-690 A) LCD Display (PAN MV-690 B) Indicator of the live phase LED Voltage testing with reduced impedance (only PAN MV-690A) Rotating field counter-clockwise Rotating field clockwise Display Continuity test Test button (Testing of an residual current circuit breaker.)

  • Page 9: General Specifications

    100 – 400 V (50/60 Hz) Category CAT III 690 V Overload protection PAN MV-690A: 400 V (AC/DC) or 690 V (DC) PAN MV-690B: 690 V (AC/DC) Maximum value (MAX) < 0,2 A (1s); < 3,5 mA (5s) Test current 5 μA (Continuity test)
  • Page 10 English Accuracy of the value Function Range displayed in % 12 V 24 V 36 V 50 V DC voltage -30% to 0% (V =) 120 V 230 V 400 V 690 V 12 V 24 V 36 V AC voltage 50 V (V ) -30% to 0%...

  • Page 11: Operating Instructions

    English 7. Operating Instructions Be aware of the Safety Instructions. Note: Before each measurement check the correct funktion at a known power source. Close the probes briefly. The "Audible continuity" (9) LED lights up and a beep can be heard. If the device does not respond during the function test replace the battery.
  • Page 12 English DC Voltage measurement / AC Voltage measurement with reduced impedance For the voltage test with reduced impedance press both test buttons (10) during the measurement. The impedance of about 7.7 kΩ is reduced, whereby inductive and capacitive stray voltages are suppressed. With this function you can choose between "real"...
  • Page 13 English Continuity test Note: This measurement can only be performed when functional batteries are inserted. Connect the test prods of the leads to the resistance or circuit to be tested. To avoid influence disconnect the resistant to be tested from the circuit.

  • Page 14: Maintenance

    English 8. Maintenance Only authorized service technicians may repair the instrument. Note: If the instrument is malfunctioning, please test: - Battery condition and polarity - Condition of the fuse(s) if available. - Condition of the test leads. Changing the battery(s) If the device does not respond during the function test replace the battery.

  • Page 15: Guarantee And Spare Parts

    This device is covered by the statutory warranty of 2 years after date of purchase (according to purchase receipt). Further information on complaint handling can be found at: www.pancontrol.at/complaints In case of spare part requirement or in case of queries or problems, please get in touch with your vendor or: Changes as a result of technical development, as well as errors and printing errors reserved.

This manual is also suitable for:
