WARNING: Refer to the System Installation Manual for information on limitations regarding product use and function, and information on the limitations as to liability of the manufacturer.
These instructions shall be used with the appropriate Control Panel Installation Manual with which this equipment is intended to be used. Operating Instructions shall be made available to the user.
This Installation Sheet applies to the following models: WT5500-433 / WT5500-868 / WT5500P-433 / WT5500P-868.
Do not dispose the waste battery as unsorted municipal waste. Consult your local rules and /or laws regarding recycling of this battery; it will help protect the environment by reducing the number of bat-
teries consumed. Some of the materials that are found within the battery could become toxic if not disposed properly and/or may affect the environment, and indirectly everybody's health.
Page 1

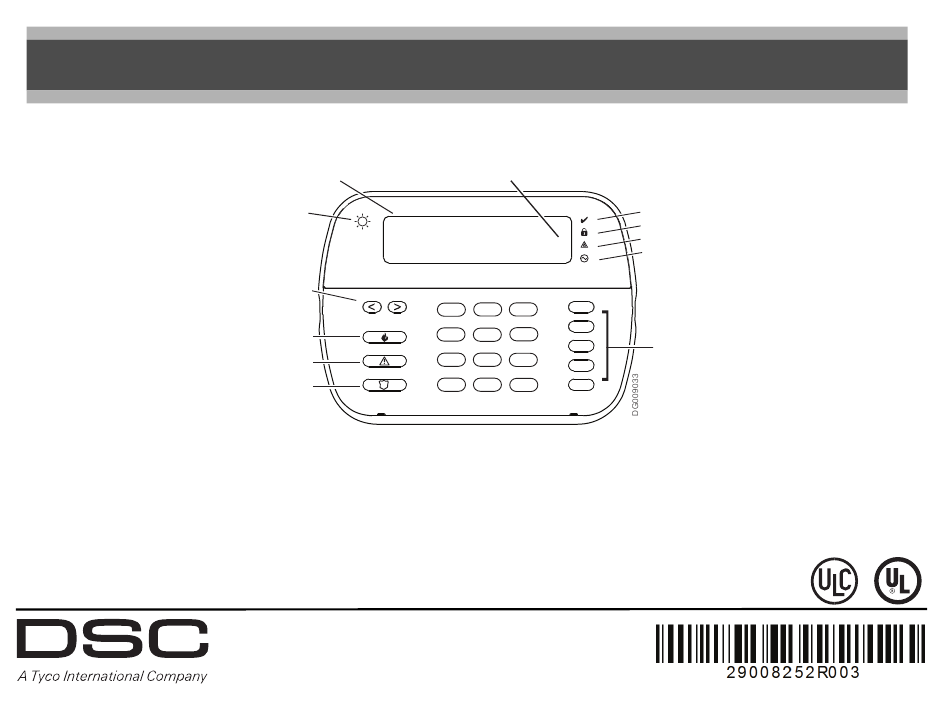

WT5500 v1.4 Installation Instructions English, Français, Español, Português < > indicates user can scroll through options LED Indicators Ambient Light Ready Sensor Armed System is Trouble Ready to Arm < > AC Power Scroll Keys Emergency Keys Fire Function Keys Auxiliary Panic WARNING: Refer to the System Installation Manual for information on limitations regarding product use and function, and information on the limitations as to liability of the manufacturer.
CAUTION: Do not mix old batteries with new ones. Mounting Installation Instructions You should mount the keypad where it is accessible from designated points of entry and exit. Once you have selected a dry and secure location, perform Mounting The WT5500 Wireless Keypad is compatible with the PC9155 and the following steps to mount the keypad.
Page 3
Keypad LED Symbols Deleting Proximity Tags Enrolling the Keypad Delete the prox tags from the system when they are lost or no longer needed. The WT5500 must be configured in tandem with your panel in order for the Symbol Description system to function as desired.
[066] Fail to Arm Event Message Keypad Function Key Programming Enter keypad programming by pressing [,][8][Installer Code][,][000]. Press 1 through 5 for individual Default: ‘System_Has_Failed_to_Arm’ function key programming. I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I [066] [1]-[5] Function Key Assignment I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I...
Page 6
This number represents the number of times the downloaded message is cleared by pressing any key [075] Second Keypad Options after the message has timed out. Default Opt. ON [100] CO Detector Alarm Label Local Clock Display ON Local Clock Display OFF I_____I Default: ‘CO_Alarm_Evacuate_Area’...
Page 7
Label Library Programming Labels 1. Use this section to assign a meaningful name (e.g., Front Door, Hallway, etc.) to each zone. The Label Library is a database of words commonly used when programming labels. Individual words can be combined as ,][8][Installer Code][,].
Page 8
Words Item # Text Item # Text Item # Text Item # Text Item # Text Item # Text Item # Text Item # Text Item # Text Aborted Bypass Downstairs Gallery Light Panic Shed Window Bypassed Drawer Garage Lights Partition Shock Zone...
Page 9
Instructions d’installation du WT5500 v1.4 < > indique que l’utilisateur peut faire défiler les options Voyants Capteur lumière Prêt ambiante MES (Armé) Système prêt Trouble à armer Alimenté CA Touches de défilement Touches d’urgence Touches de fonction Auxiliaire Panique MISE EN GARDE : Ce manuel contient des renseignements sur les limites de l’utilisation et du fonctionnement de ce produit ainsi que des renseignements sur les limites relatives à la responsabi- lité...
Attention – Ne pas mélanger de nouvelles batteries avec les vieilles. Installation Instructions d’installation Il convient d’installer le clavier à un endroit accessible aux points d’entrée et de sortie désignés. Une fois que vous avez sélectionné un endroit sec et sûr, effectuez Trous de montage Le clavier WT5500 a été...
Page 11
Enregistrement du clavier Symboles des voyants LED sur le clavier Suppression des tags de proximité Le WT5500 doit être configuré en même temps que la centrale (PC9155/ La suppression des tags de proximité du système lorsqu’ils sont perdus ou Symbole Description SCW9055/9057) pour que le système fonctionne bien.
Page 13
[066] Texte Défaut d’armement Paramétrage des touches de Fonction des claviers Saisissez le paramétrage du clavier en appuyant sur [ ][8][Code Installateur][ ][000]. Saisissez 1 à 5 Défaut: « Système a Echec d’Armement» pour le paramétrage individuel des touches de fonction des claviers. _ ____ _ ____ _ ____...
Page 15
Paramétrage des textes Bibliothèque de textes 1. Utilisez cette section pour assigner un nom significatif (par ex. porte d’entrée, couloir, etc.) pour chaque zone. La bibliothèque de textes est une base de données de mots fréquemment utilisés lors de la programmation des textes. Les ,][8][Code Installateur][,].
Page 16
Mots n° Texte n° Texte n° Texte n° Texte n° Texte n° Texte n° Texte n° Texte n° Texte Accès Défaut Faible Lumières Patio Téléphone ê Actif Calendrier Degrés Famille Maintenant Père Tiroir ç Activité Canalisation Délai Fenêtre Maison Pile Totale î...
Page 17
Instrucciones de instalación del WT5500 v1.4 < > indican que el usuario puede desplazarse por las opciones Indicadores LED Sensor de luz Listo ambiental Armado Sistema Listo Fallo Para Armar <> CA (Red) Teclas de desplazamiento Teclas de emergencia Incendio Teclas de función Auxiliar...
Page 18
Montaje Cuidado – No utilice baterías viejas junto con baterías nuevas. Instrucciones de instalación Usted debe instalar el teclado en un lugar accesible teniendo en cuenta los pun- tos designados como entrada y salida. Una vez usted haya seleccionado una ubi- Orificios de El teclado inalámbrico WT5500 ha sido diseñado para ser utilizado con el montaje...
Page 19
Símbolos LED del teclado Eliminar llaves de proximidad Enrolar el teclado Elimine del sistema las llaves de proximidad que se hayan perdido o ya no sean El WT5500 debe configurarse junto con el Panel para que el sistema funcione Símbolo Descripción necesarias.
Page 21
[065] Etiqueta de alarma de incendios (28 caracteres) Programación de la teclas de función del Predeterminado: ’Zona_de_Fuego’ teclado I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I Acceda a la programación del teclado presionando [,][8][Código del instalador][,][000].
Page 22
[075] Segundo grupo de opciones del teclado [078] Duración del mensaje LCD descargado Predeter- Predeterminado: 003 I_____I_____I_____I (Entrada válidas son 000-255), 000=Mensajes en pantalla ilim- Opc. Activado Desctivado minado itados Este número representa las veces que el mensaje descargado ha sido borrado al presionar cualquier tecla tras Activado Mostrar hora local Activado Mostrar hora local Desactivado...
Page 23
Programación de etiquetas Biblioteca de identificaciones 1. Utilice esta sección para asignar un nombre significativo (p.ej. Puerta principal, Entrada, etc.) a cada zona. La Biblioteca de identificaciones es una base de datos de palabras comúnmente usadas en el momento de la pro- 2.
Page 25
WT5500 V1.4 Instruções de Instalação < > indica que o usuário pode percorrer as opções LEDs indicadores Sensor de luz Pronto ambiente Armado Problema Alimentação CA Teclas de rolagem Teclas de emergência Incêndio Teclas de função Auxílio Pânico Leia o Manual de Instalação do Sistema para obter informações sobre o uso e a funcionalidade do produto, bem como informações sobre as limitações de ADVERTÊNCIA: responsabilidade do fabricante.
Montagem Atenção – Não misture baterias novas com usadas Instruções de Instalação É necessário montar o teclado em local acessível a partir de pontos desig- nados de entrada e saída. Uma vez selecionado um local seco e seguro, Orifícios de execute os procedimentos a seguir para montar o teclado.
Page 27
Tag de proximidade (somente WT5500P) Registro do teclado Transmissão de identificações do LCD O teclado WT5500 deve ser configurado em conjunto com o Painel para que o sistema funcione como desejado. A programação do LCD é feita com o Teclado 1 se um SCW9055/9057 estiver Leitora de tag 1.
Page 29
[066] Mensagem de evento falha ao armar Programação das teclas de função do teclado Padrão: “Sistema_Tem_Nao_Armou” Entre na programação do teclado pressionando [,][8][código do instalador][,][000]. Pressione os I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I _ ____I números de 1 a 5 para a programação de teclas de função individuais.
Page 30
[075] Segundo grupo de opões do teclado [078] Duração do download de mensagens no LCD Padrão Opção ON Default: 003 I_____I_____I_____I (As entradas válidas são 000-255), 000 = Exibição ilimitada de mensagens Exibição do relógio local Ativada Exibição do relógio local Desativada I_____I Esse número representa o número de vezes que a mensagem descarregada será...
Page 32
NOTAS 2749-09-3215 (01)07899029303543 modelo WT5500-433 (01)07899029303550 2749-09-3215 modelo WT5500P-433 Este equipamento opera em caráter secundário, isto é, não tem direito a proteção contra interferência prejudicial, mesmo de estações do mesmo tipo, e não pode causar interferência a sistemas operando em caráter primário.” firealarmresources.com...
