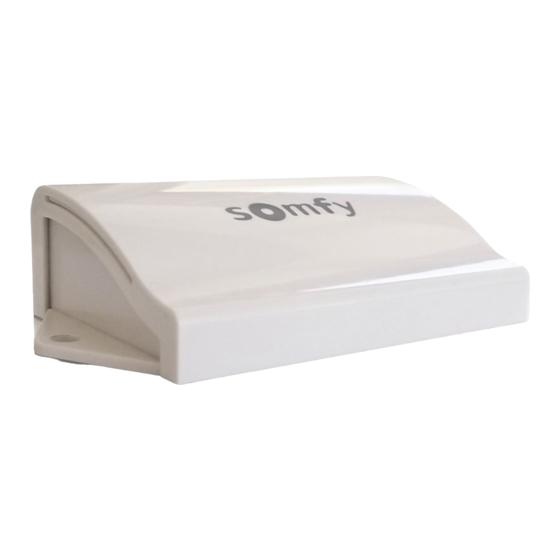

Digital motor interface (dmi)
Hide thumbs Also See for CONTROL4:
Table of Contents

Advertisement

Quick Links

Download this manual
PROGRAMMING GUIDE
TO
DIGITAL MOTOR INTERFACE (DMI)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CONTROL4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOMFY CONTROL4

Summary of Contents for SOMFY CONTROL4

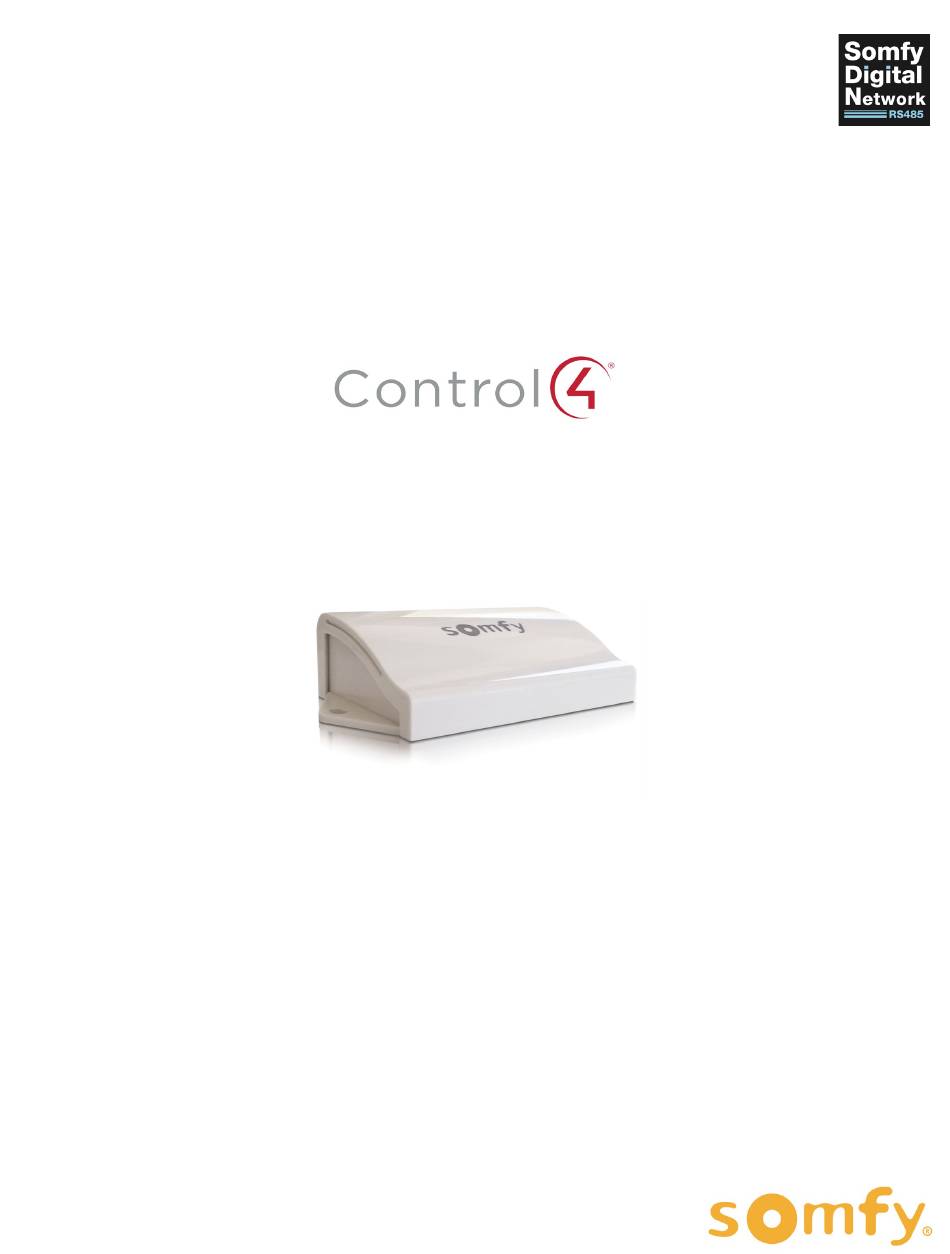

  • Page 1 PROGRAMMING GUIDE DIGITAL MOTOR INTERFACE (DMI)

  • Page 2: Table Of Contents

    PROGRAMMING GUIDE CONTROL4 TO DIGITAL MOTOR INTERFACE (DMI) V E R S I O N 1 . 0 J U N E 2 0 2 2 | P r e p a r e d b y P R O J E C T S E R V I C E S TABLE OF CONTENTS I.

  • Page 3: Overview

    When installing the Digital Motor Interface (DMI) with DC motors, the Data & Power Adaptor Cable (Ref # 9027112, sold separately) is required for proper installation. Using the DMI with AC SDN RS485 motors requires the Somfy Grey Motor Data Cables (sold separately).

  • Page 4: Installation

    II. INSTALLATION M O U N T I N G The Control4 to Digital Motor Interface utilizes mounting tabs with screw holes for installation. P O W E R This device is powered by a line voltage AC SDN RS485 motor or a 24V DC power supply.

  • Page 5: Wiring To System For Operation

    W I R I N G T O S Y S T E M F O R O P E R A T I O N W I T H A C R S 4 8 5 M O T O R W I T H G L Y D E A U L T R A M O T O R NOTE: Irismo™...

  • Page 6: Set

    A D D B L I N D D E V I C E T O P R O J E C T Prior to Control4 programming, confirm that the DMI Push Button properly operates the individually connected SDN motor.
  • Page 7 A Somfy Control4 to Digital Motor Interface driver is required for each DMI installed. 1) The Control4 to DMI is automatically in Identify mode upon power up. For systems with multiple units, it is recommended to power up and identify the units one at a time.

  • Page 8: Set Blind Device Properties

    2) In the Properties tab, SELECT the appropriate Blind Type for the product in the dropdown 3) SELECT the appropriate Blind Movement for the product in the dropdown In the View/Modify Level Binding, set Control4 keypad button properties and connect the driver button links in Control & AV Connections. When complete, Refresh Navigators.

  • Page 9: Appendix

    APPENDIX F I R M W A R E U P D A T E [ A P P E N D I X A ] A V A I L A B L E C O M M A N D S & A C T I O N S DIGITAL MOTOR INTERFACE COMMANDS Close Moves blind to the fully closed position...
  • Page 10 Over 270 million users worldwide enjoy the more than 170 million motors produced by Somfy. During the past 50 years, Somfy engineers have designed products for both the commercial and residential markets to motorize window coverings such as interior shades, wood blinds, draperies, awnings, rolling shutters, exterior solar screens and projection screens.
