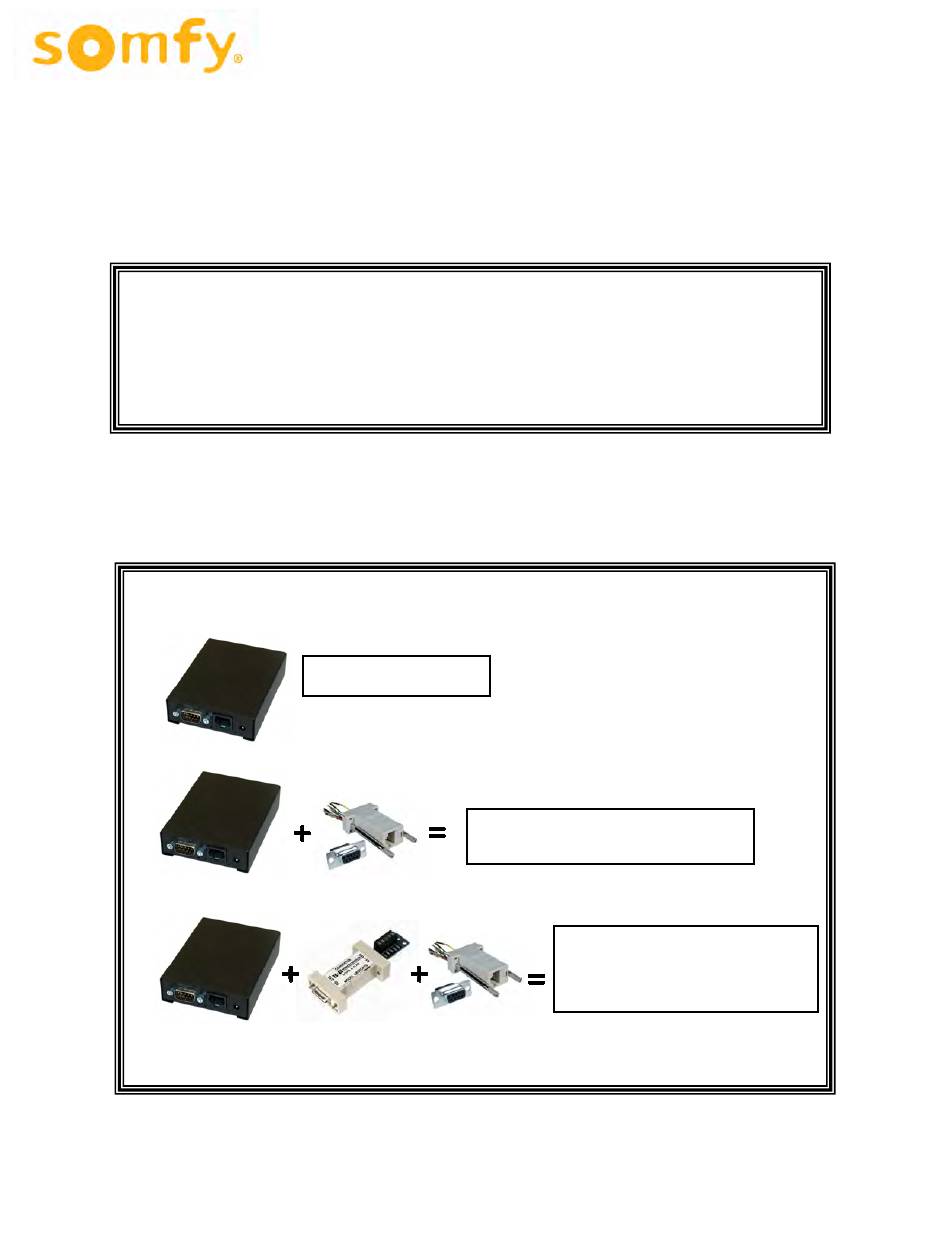

IP Interface for the
Somfy Digital Network (SDN)
& RS485 URTSII
Internet Protocol (IP) Interface Product Options
Cat # 1810815
IP Interface Only
Cat # 1810870: Interface and DB9/RJ45
Adapter (9015028)
Use for Single URTSII (RS232)
Cat # 1810850: Interface, RS232/RS485
Adapter (1810496)and DB9/RJ45
Adapter (9015029)
Use for SDN and multiple URTSII's
over RS485 network
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SOMFY 1810815
Summary of Contents for SOMFY 1810815
- Page 1 IP Interface for the Somfy Digital Network (SDN) & RS485 URTSII Internet Protocol (IP) Interface Product Options Cat # 1810815 IP Interface Only Cat # 1810870: Interface and DB9/RJ45 Adapter (9015028) Use for Single URTSII (RS232) Cat # 1810850: Interface, RS232/RS485...
- Page 2 1 IP Interface for the SDN The IP interface for the Somfy Digital Network (SDN) is a serial device server used to connect Somfy ILT2 motors and control devices to an IP network. The firmware is remotely upgradeable through HTTP port 80, un- proxied.
- Page 3 Select Upgrade: Select Somfy under Node Name:...
- Page 4 A page similar to the one shown will appear. Select Auto Update: A wait message will appear and then this page: Select Restart.
- Page 5 3 Choose SDN IP Type (for addressable URTSII see section 5) Select Devices: Select Somfy:...
- Page 6 This page will display: Choose unique node name such as the customer name (City Hall) Choose device name such as SDN Choose Somfy_ILT2 from drop down menu and select Next This page will display: Select Configure and then City_Hall...
- Page 7 This page will display. Select Add. This page will display: Choose unique Control Page Name, number of panels (e.g. 2), headings and addresses. For further information on Addresses and Functions, see SDN instructions. When complete select Done.
- Page 8 This page is displayed: (Note: this is the page to return to if an existing GUI needs editing) At this point the system should be tested. Select Save Settings. This page is displayed: Select Save...
- Page 9 This page is displayed after 10 seconds: Select Exit Setup and load Control Pages This page is displayed: Select East Elevation...
-
Page 10: Time Schedules
Activate a function by selecting one of the buttons on the GUI. 4 Time Schedules (Internet access is required for time schedules) Choose Configure from the menu on the left and then click on the node name. The following page will display. (type somfy/setup in I.E.) Choose Schedule. - Page 11 This page will display: Enter the required information for the timed event: Month and Day(s) Time Address (group or individual) Command Unique event name When done then click Add. Repeat the process for each timed event. When all events are entered, click Done. Click Done again.
- Page 12 The Schedule screen is the same screen used to edit previously entered events To edit an event, click copy and make the necessary changes. Enter unique event name Click Add. Delete the original event. Click Done when editing is complete. Click Done again.
- Page 13 5 IP For Addressable URTSII Select Devices Select Somfy...
- Page 14 This page will display: Choose unique node name such as the customer name (Library) Choose device name such as URTSII Choose Somfy_URTSI(16_2) from drop down menu and select Next This page will display: Select Configure and then Library...
- Page 15 This page will display. Select Add This page will display: Choose unique Control Page Name, number of panels (e.g. 2), headings and URTSII addresses. For further information on Addresses and Functions, see URTSII instructions. When complete select Done.
- Page 16 (Note: this is the page to return to if existing GUI needs editing) At this point the system should be tested. Select Save Settings. This page is displayed: Select Save...
- Page 17 This page is displayed after 10 seconds: Select Exit Setup and load Control Pages This page is displayed: Select Main...
- Page 18 Activate a function by selecting one of the channels and then a command on the GUI 6 Time Schedules (Internet access is required for time schedules) Choose Configure from the menu on the left and then click on the node name. The following page will display. (type somfy/setup in I.E.) Choose Schedule.
- Page 19 This page will display: Enter the required information for the timed event: Month and Day(s) Time URTSII Address (1-16) RTS Channel Command Unique event name When done then click Add. Repeat the process for each timed event. When all events are entered, click Done. Click Done again.
- Page 20 Click on “Exit Setup and Load Control pages” A list of GUI pages is shown. Time events are active There are no other areas of the Setup that should be accessed. For technical support call Somfy @ 609-395-1300 #112691, 112143 or 112662.
