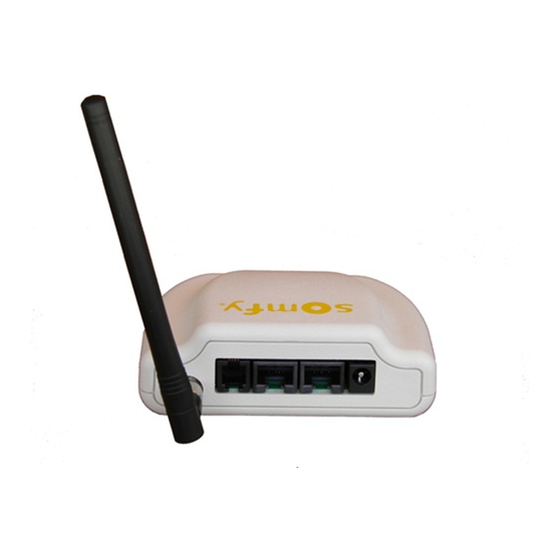

UNIVERSAL RTS INTERFACE
Window covering control made simpler
This 16-channel interface allows users to convert
infrared, RS-232 and RS-485 protocol into Radio
Technology Somfy (RTS) for RF control of interior
R
and exterior window coverings, powered by
Somfy motors.
Advertisement
Related Manuals for SOMFY 1810872
Summary of Contents for SOMFY 1810872

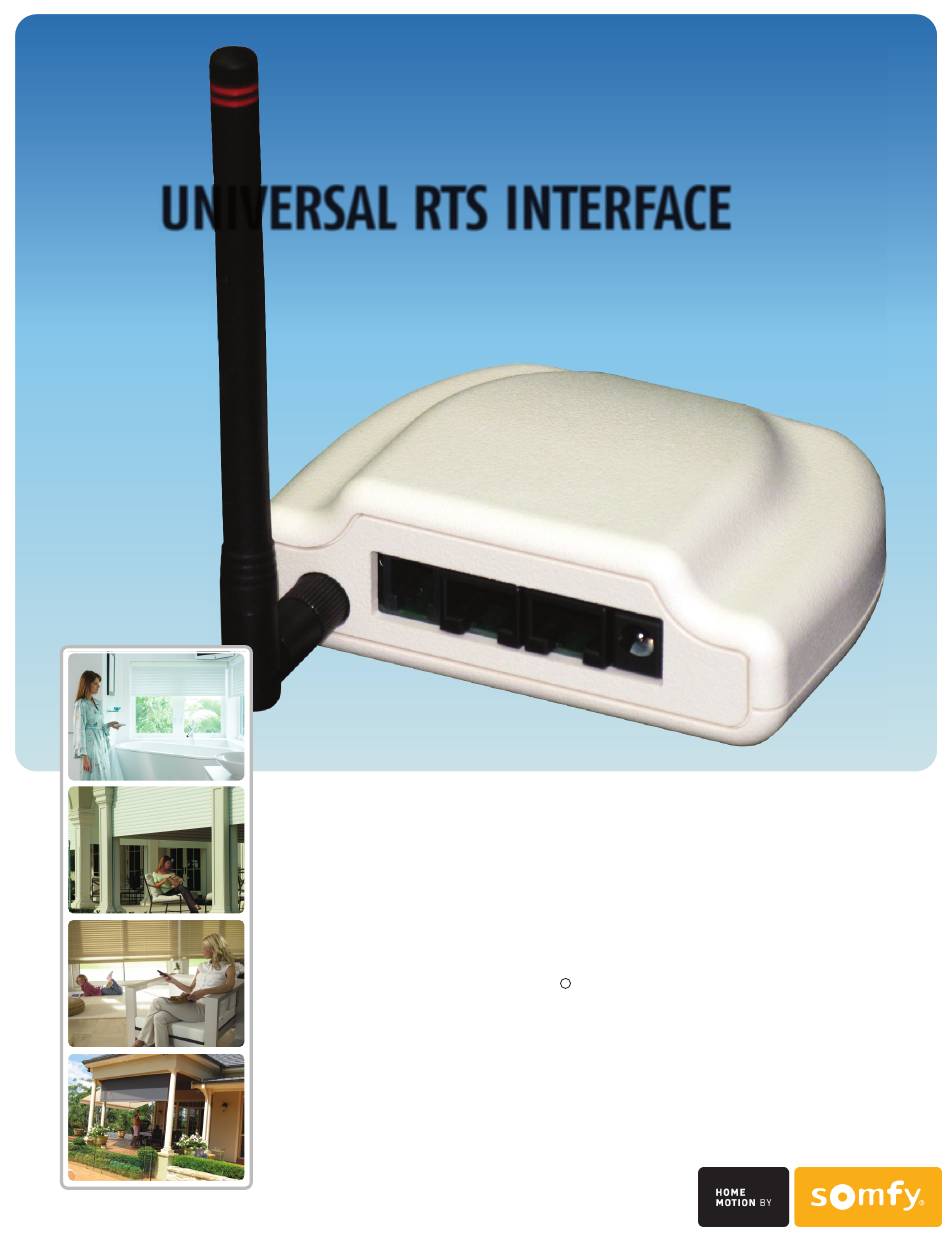

- Page 1 UNIVERSAL RTS INTERFACE Window covering control made simpler This 16-channel interface allows users to convert infrared, RS-232 and RS-485 protocol into Radio Technology Somfy (RTS) for RF control of interior and exterior window coverings, powered by Somfy motors.
- Page 2 Infrared Control Capability**: Pin 3: Transmit (TX) # of Ports: 1-RJ9 Pin 4,5: DC+ Compatible with Somfy's 24 channel IR transmitter Pin 6: Receive (RX) Pin 7,8: DC- (Ground for RS232) ** Optional IR sensor required - Cat. #9012871 *** Optional DB9 to RJ45 adapter - Cat. #9015028 - RS232 Pins 1&2, 4&5, 7&8 internally connected...
