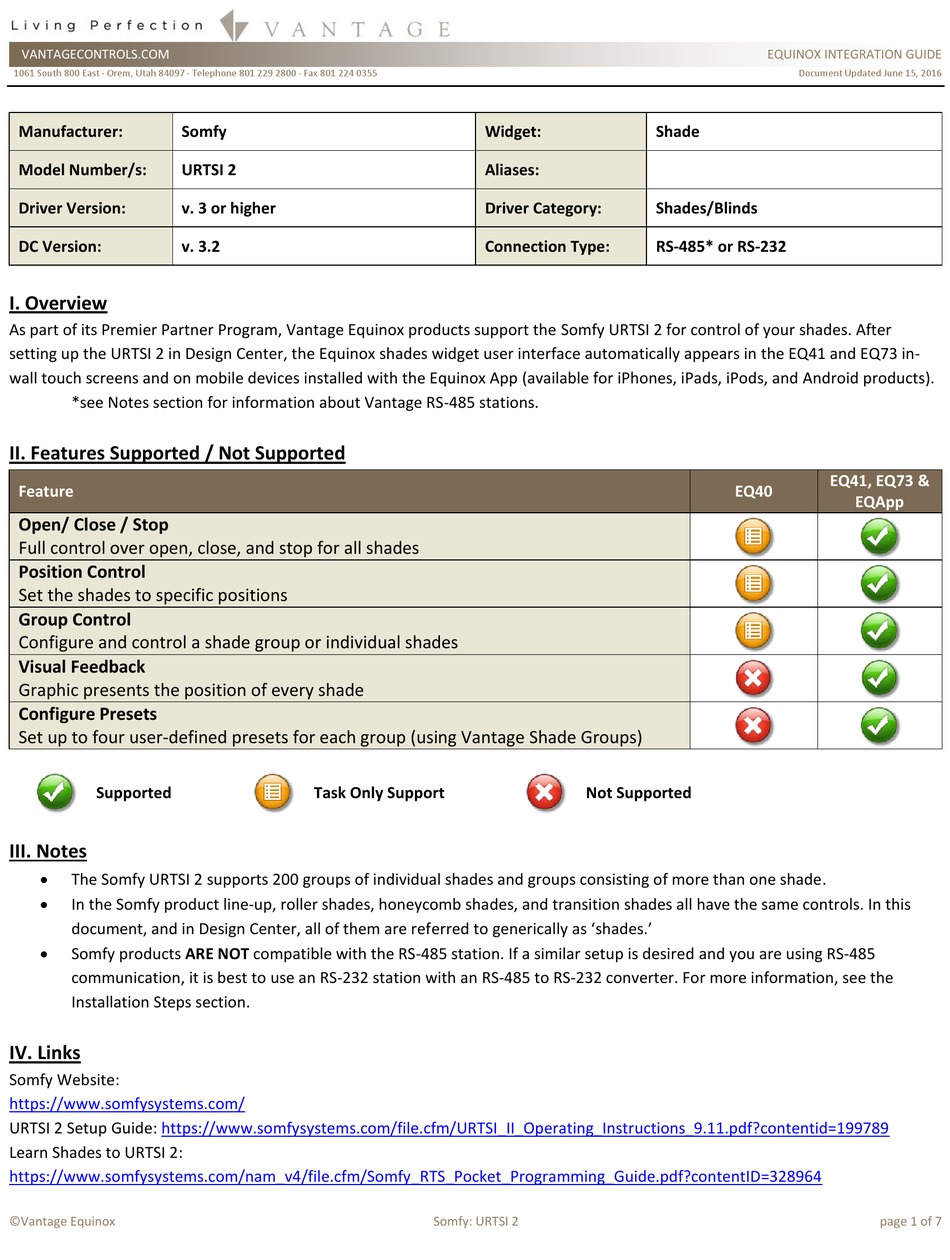

VANTAGECONTROLS.COM
1061 South 800 East · Orem, Utah 84097 · Telephone 801 229 2800 · Fax 801 224 0355

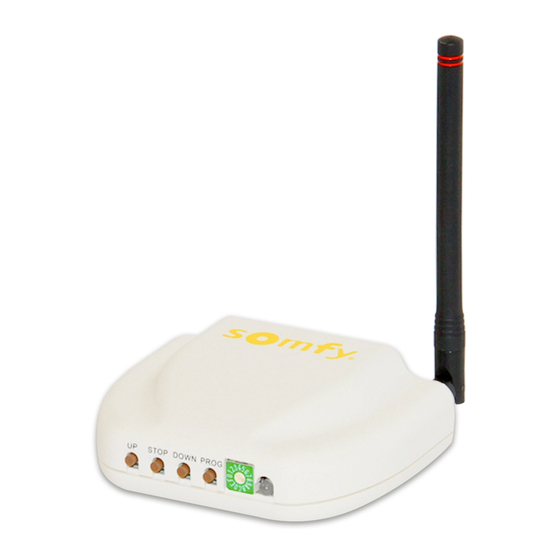

Manufacturer:
Somfy
Model Number/s:
URTSI 2
Driver Version:
v. 3 or higher
DC Version:
v. 3.2
I. Overview
As part of its Premier Partner Program, Vantage Equinox products support the Somfy URTSI 2 for control of your shades. After
setting up the URTSI 2 in Design Center, the Equinox shades widget user interface automatically appears in the EQ41 and EQ73 in-
wall touch screens and on mobile devices installed with the Equinox App (available for iPhones, iPads, iPods, and Android products).
*see Notes section for information about Vantage RS-485 stations.
II. Features Supported / Not Supported
Feature
Open/ Close / Stop
Full control over open, close, and stop for all shades
Position Control
Set the shades to specific positions
Group Control
Configure and control a shade group or individual shades
Visual Feedback
Graphic presents the position of every shade
Configure Presets
Set up to four user-defined presets for each group (using Vantage Shade Groups)
Supported
III. Notes
The Somfy URTSI 2 supports 200 groups of individual shades and groups consisting of more than one shade.
In the Somfy product line-up, roller shades, honeycomb shades, and transition shades all have the same controls. In this
document, and in Design Center, all of them are referred to generically as 'shades.'
Somfy products ARE NOT compatible with the RS-485 station. If a similar setup is desired and you are using RS-485
communication, it is best to use an RS-232 station with an RS-485 to RS-232 converter. For more information, see the
Installation Steps section.
IV. Links
Somfy Website:
https://www.somfysystems.com/
URTSI 2 Setup Guide:
https://www.somfysystems.com/file.cfm/URTSI_II_Operating_Instructions_9.11.pdf?contentid=199789
Learn Shades to URTSI 2:
https://www.somfysystems.com/nam_v4/file.cfm/Somfy_RTS_Pocket_Programming_Guide.pdf?contentID=328964
©Vantage Equinox
Widget:
Aliases:
Driver Category:
Connection Type:
Task Only Support
Somfy: URTSI 2
Shade
Shades/Blinds
RS-485* or RS-232
EQ40
Not Supported
EQUINOX INTEGRATION GUIDE
Document Updated June 15, 2016
EQ41, EQ73 &
EQApp
page 1 of 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the URTSI 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SOMFY URTSI 2

Summary of Contents for SOMFY URTSI 2

  • Page 1 As part of its Premier Partner Program, Vantage Equinox products support the Somfy URTSI 2 for control of your shades. After setting up the URTSI 2 in Design Center, the Equinox shades widget user interface automatically appears in the EQ41 and EQ73 in- wall touch screens and on mobile devices installed with the Equinox App (available for iPhones, iPads, iPods, and Android products).

  • Page 2: Installation Steps

    Hold the “PROG” button until the shade jogs. Somfy products ARE NOT compatible with the Vantage RS-485 station. If a station is wanted or needed and you are using the RS-485 communication, you will need to use an RS-232 station with an RS-485 adapter, both are pictured below. We recommend the B&B converter with a null modem attached for two way communication.
  • Page 3 EQUINOX INTEGRATION GUIDE VI. Design Center Setup Follow these instructions to add the Somfy URTSI 2 to your Design Center project and configure its settings appropriately. Project Settings – Click on Settings | Project 6. Add Groups – Add the number of groups you Information| Owner programmed during installation.
  • Page 4 IX. Equinox Widget Navigation Once a URTSI 2 is added to the project, the shades widget will normally appear on the EQ73, EQ41, and Equinox Apps. If the widget is not visible, go to Profile Settings and select the widget to make it visible. Note that if the shades widget is already on the Equinox device, but the URTSI 2 Group is not visible;...
  • Page 5 (EQ-APP-X) quantities of Equinox devices. Also, each EQ73 station adds one more license (EQ73TB-T1). Ensure Step 1 of the Design Center Setup was completed, as the Equinox App will not run without the Equinox Mobile Passcode. Launch the App, and follow the on-screen prompts in the Setup Wizard. ©Vantage Equinox Somfy: URTSI 2 page 5 of 7...

  • Page 6: Connection Diagram Example

    Wireless Router Luxul XWR-1750 Ethernet / Wi-Fi Cat 5 (RJ45) Gigabit Switch w/ PoE Luxul XGS-1008P Ethernet w/PoE Cat 5 (RJ45) Shade/Blind Somfy URTSI 2 Ethernet Cat 5 (RJ45) Controller Interface ©Vantage Equinox Somfy: URTSI 2 page 6 of 7...
  • Page 7 XIII. Design Center Task Procedure Table The following table shows the most common procedures that are available for programming Design Center tasks with the URTSI 2. Tasks can be assigned to keypad buttons and Equinox scenes.
