I. OVERVIEW
The Control4 to Digital Motor Interface (DMI) receives and sends bi-directional commands and feedback
connected between Somfy wired SDN RS485 motors and a Control4 Zigbee system as a wireless end node.
It receives Control4 Zigbee transmissions and converts them to motor control commands for Somfy's line of
SDN Motor limits must be set prior to installing Digital Motor Interface
NOTE: Refer to the respective motor instructions on how to set the limits
All connections must be properly made according to the wiring diagrams on the product instructions
LED BEHAVIOR:
(LEFT)
OFF
NO POWER TO DEVICE
GREEN
POWER TO DEVICE
Power Input
Input port for 24V DC
power from power supply
When installing the Digital Motor Interface (DMI) with DC motors, the Data & Power Adaptor Cable (Ref # 9027112, sold separately) is required
for proper installation. Using the DMI with AC SDN RS485 motors requires the Somfy Grey Motor Data Cables (sold separately).
Control4 Digital Motor
Interface Connection
Connect to SDN Port on the
Digital Motor Interface
Digital Motor
Connection
Connect to SDN RS485
Digital Motor Cable(s)
line voltage (AC) and low voltage (DC) SDN RS485 motors.
S Y S T E M R E Q U I R E M E N T S
Fully commissioned Control4 system
Control4 Composer Software OS 2.9.0 or higher
Somfy Control4 to Digital Motor Interface driver

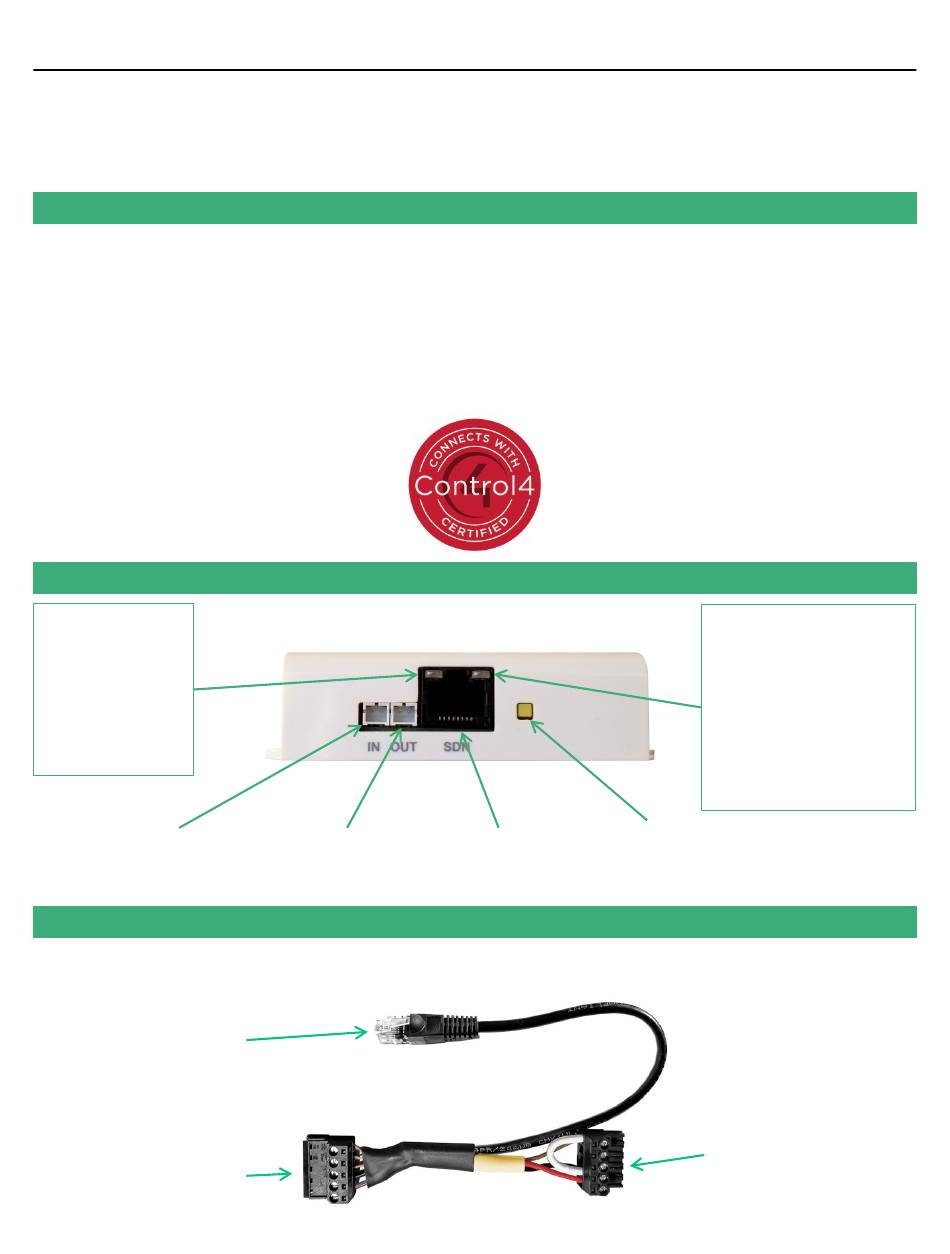

C O N N E C T I O N S & I N D I C A T O R S
Each DMI is limited to one SDN RS485 motor connection
Power Output
Output port for 24V DC
power to motor
M O T O R A D A P T O R C A B L E
Push Button
SDN Port
Leaving the Zigbee
Connect to motor or
network, restart identify
Data & Power Cable
& manual operation
LED BEHAVIOR:
(RIGHT)
ORANGE
>
GREEN
(Solid>Flashing)
SDN MOTOR ACTIVITY
GREEN
(Flashing)
NO MOTOR FEEDBACK
ORANGE
(Flashing)
INCLUSION MODE
ORANGE
(Solid)
CONNECTED TO ZIGBEE NETWORK
During power-up, the RIGHT
LED will flash indicating the
firmware version.
Refer to product instructions for
more detail.
Power Supply
Connection
Connect to the power
supply to provide power
