Summary of Contents for SOMFY TAHOMA

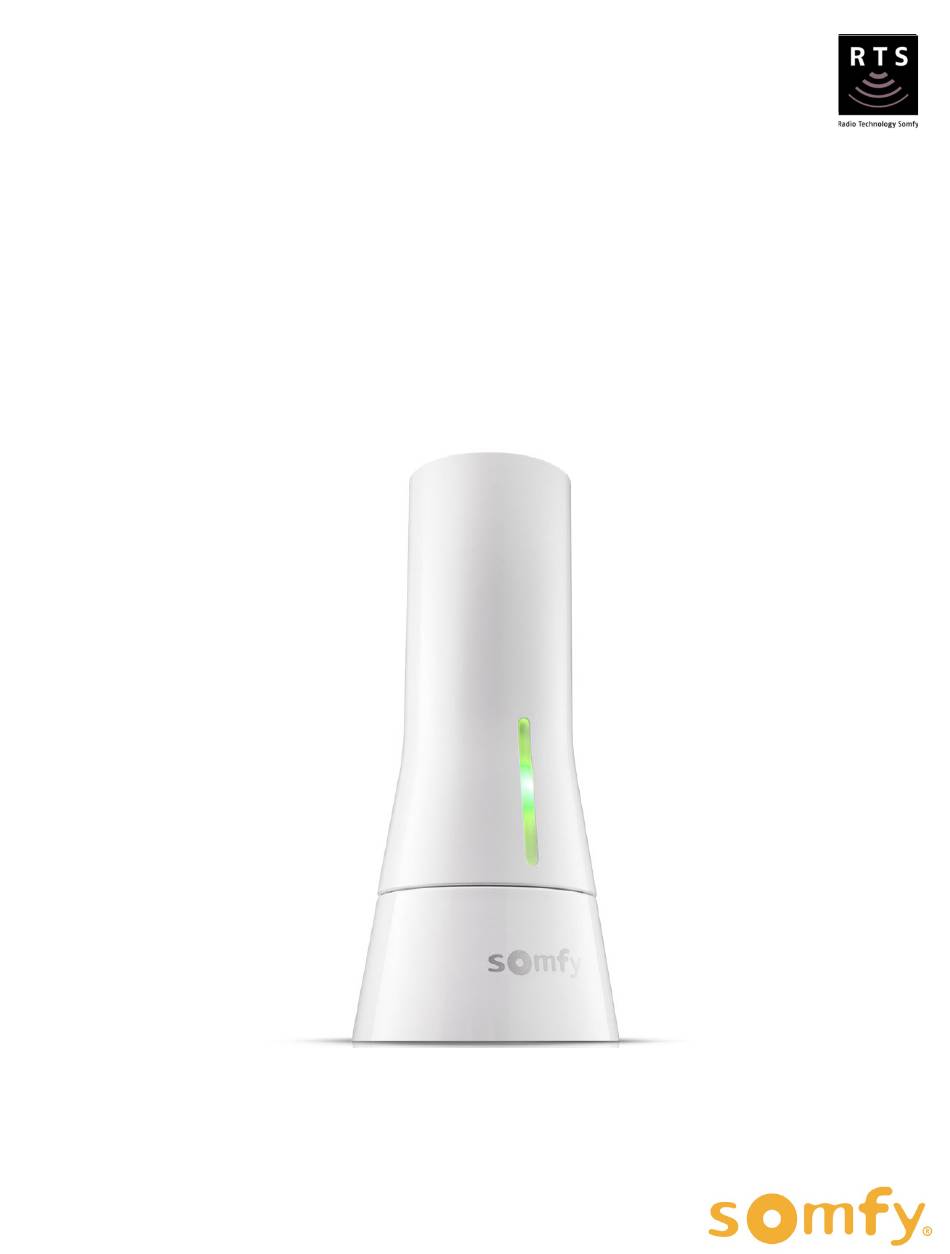

- Page 1 PROGRAMMING GUIDE SOMFY TAHOMA® RTS Smartphone & Tablet Interface...
-
Page 2: Table Of Contents
PROGRAMMING GUIDE TAHOMA® RTS SOMFY V E R S I O N 1 . 2 A U G U S T 2 0 2 1 P r e p a r e d b y P R O J E C T S E R V I C E S... -
Page 3: Overview
S Y S T E M C O N F I G U R A T I O N All RTS motors must be fully operational and programmed with limits prior to TaHoma programming. The TaHoma Interface supports up to 40 channels of RTS. -
Page 4: Installation
II. INSTALLATION P L A C E M E N T Place the TaHoma using the following criteria when installing one or more Interfaces: • Single Zone control (Room Control) • Whole House Control (up to 10 TaHoma Interfaces) • Stay within 25-35’ of the RTS motors for best performance... -
Page 5: Set Up
The PIN code is 3 series of digits on the TaHoma Interface and the packaging. IMPORTANT: When scanning the QR code of a TaHoma Interface, only scan the QR code on the base of the TaHoma Interface. 5 of 23... - Page 6 Conditions," SELECT "Confirm” 9. SELECT “Close the window” • An email from (info@somfy.com) will be sent summarizing your TaHoma offer with a link to your account • Click on the link within 24hrs to finalize TaHoma activation and customize your interface •...
-
Page 7: Connect Via Wi-Fi
NOTE: An internet connection is required. TaHoma does not support local control to operate any RTS products without an internet connection Follow the steps below to connect TaHoma using a 2.4 GHz Wi-Fi connection: An Ethernet connection method provides more reliability and stability when compared to a Wi-Fi connection. - Page 8 To change the Wi-Fi network, Refer to Change Wi-Fi Network in Appendix E. CHECK TAHOMA CONNECTION STATUS CHECK WI-FI STRENGTH The TaHoma icon in the top right corner of the TaHoma From the TaHoma app home page, SELECT menu page will indicate connection status: the Menu button in the bottom right corner, SELECT "My Setup”...
-
Page 9: Connect Via Ethernet
NOTE: An internet connection is required. TaHoma does not support local control to operate any RTS products without an internet connection. Follow the steps below to connect TaHoma using the TaHoma® Ethernet Adaptor: An Ethernet connection method provides more reliability and stability when compared to a Wi-Fi connection. -
Page 10: Settings
M O V E M E N T S My Product is used to add, delete, edit RTS products and other devices. 1. From the TaHoma app home page, SELECT the Menu icon in the bottom right corner 2. SELECT “My Products”... -
Page 11: Activity History
Activity History is used to view all commands sent from Android or IOS devices and any schedules that have launched. 1. From the TaHoma app home page, SELECT the Menu icon in the bottom right corner 2. SELECT “Activity History”... -
Page 12: Third-Party Integration
3. Follow the prompts and refer to the integration guides at https://www.somfypro.com/tahoma- documentation An Integration Report is generated in the TaHoma App which will include the TaHoma Interface PIN and IP address. Third-Party Integration must first be enabled in the TaHoma App. 12 of 23... -
Page 13: Commissioning
V. COMMISSIONING A D D A N R T S P R O D U C T 1. From the TaHoma app home page, SELECT the Menu icon in the bottom right corner, SELECT "My Products” 2. SELECT the “+” icon in the top right corner 3. - Page 14 An RTS product has been added. IMPORTANT: When adding an RTS product to a multi-gateway system, scan the TaHoma QR code closest to that RTS product. To favorite the RTS product, SELECT the “Star” icon. To edit the product, SELECT the “Pencil” icon.
-
Page 15: Add A Scene
A D D A S C E N E A TaHoma system can support a maximum of 40 scenes with schedules. 1. SELECT the “Scene” icon from the bottom menu 2. SELECT the “+” icon in the top right corner 3. -
Page 16: Add A Schedule To A Scene
A D D A S C H E D U L E T O A S C E N E A TaHoma system can support a maximum of 40 scenes with schedules. NOTE: Scheduled scenes will continue to operate at the scheduled time even after internet connection has been lost. -
Page 17: Create A Room
C R E A T E A R O O M Create rooms to organize RTS products. A maximum of 50 rooms can be created. 1. SELECT the “Home” icon from the bottom menu 2. SELECT the “Gear” icon in the top right corner 3. -
Page 18: Add Additional Gateways
A D D A D D I T I O N A L G A T E W A Y S Add additional gateways for whole home control or single room control. 1. From the TaHoma app home page, SELECT the Menu icon in the bottom right corner 2. -
Page 19: Appendix
[ A P P E N D I X B ] S H A R E T A H O M A To Share TaHoma with a family member, the same login credentials used to create the account must be used to login with another device. -
Page 20: Change Wi-Fi Network
Follow the steps below to change to a different Wi-Fi network, to update the Wi-Fi password for the network or to switch from an Ethernet (wired) connection: 1. From the TaHoma app home page, SELECT the Menu icon in the bottom right corner, SELECT "My... -
Page 21: Delete An Rts Product
[ A P P E D N I X F ] D E L E T E A N R T S P R O D U C T Follow the steps below to delete an RTS Product: 1. From the TaHoma app home page, SELECT the Menu icon in the bottom right corner, SELECT "My Products”... - Page 22 5. PRESS and HOLD the programming button on the back of the RTS remote until the motor moves up and down briefly or LED light kit slow blinks Make sure both TaHoma and RTS remote are NOTE: in range of the motor.
- Page 23 ABOUT SOMFY SOMFY® has been improving everyday life for more than 270 million people by designing and manufacturing intelligent motorization solutions for interior window coverings and exterior solar protections. Somfy innovates to automate and connect shades, blinds, draperies, awnings, rolling shutters, exterior screens &...
