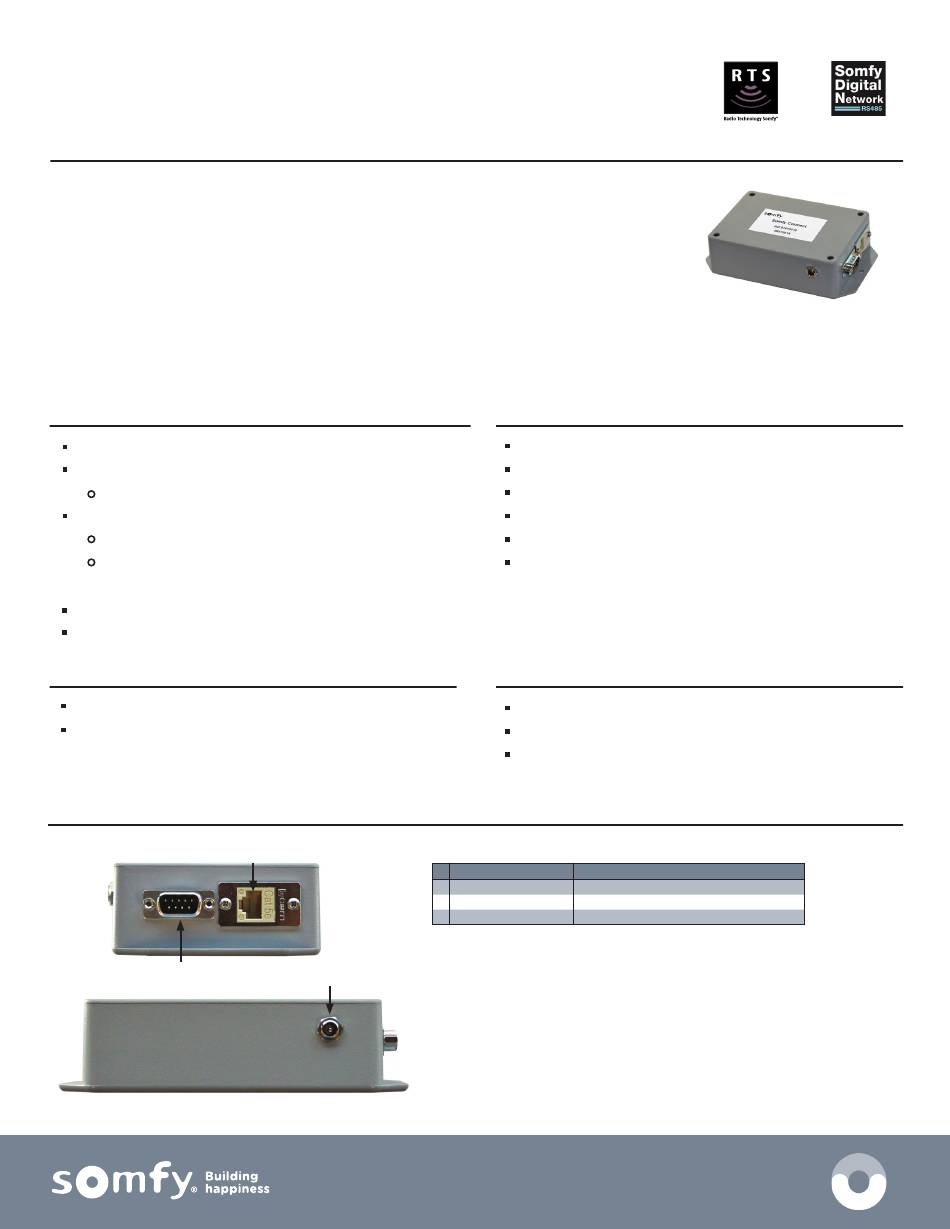

SOMFY Connect UAI Quick Start Manual

Overview:

The Somfy Connect™ Universal Automation Interface (UAI) offers a single point of communication between third
party automation systems and Somfy motorized shading systems. It is compatible with Somfy's Application
Programming Interface (API) which makes it easy to integrate custom automation programming. Only one Somfy
Connect™ UAI is required per system, and can be used with both Radio Technology Somfy® (RTS)* and Somfy
Digital Network (SDN) installations.
Somfy Connect Range Overview:
TM
The Somfy Connect™ product line expands the functionality of Somfy motorization systems, providing a communication gateway for Radio Technology
Somfy® (RTS) and Somfy Digital Network (SDN) systems to easily integrate with third party control systems in both residential and commercial jobsites.

Features Summary:

Single integration point for third party automation systems
Compatible with both RTS and SDN systems
An URTSI (1810872) is required for use with RTS systems
Works with Somfy's API for easy integration
Readable JSON format
Flexibility to create more custom user interfaces
Only one required per system
RS232 in, RS485 out
What's in the Box:

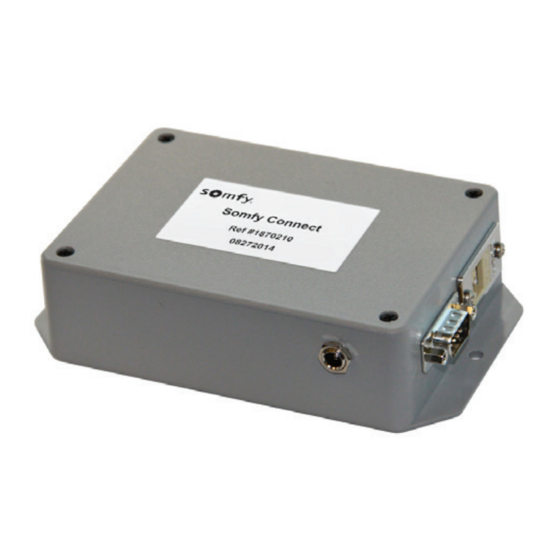

Somfy Connect UAI
TM
DB9 cable (6'; male to female; straight through) RX

Connections and Indicators:

2
Somfy Connect
Part #1870264
1
3
UAI
TM

Technical Specifications:

Input: 9-24v DC
Power Consumption: 100ma
Material: ABS
Dimensions: 6" x 3.5" x 1.5"
Operating Temperature Range: ambient
Shipping Weight: 1 Lb.

Optional Accessories:

USB to RS485 Adapter
URTSI
Power Supply
ELEMENT FUNCTION
SDN BUS
1 RS485 - Connect to SDN system or URTSI
Integration Port
2 RS232 - Connect to third party controller
Power
3 3.5mm Barrel connector (female)
9015260
1810872
1822440
