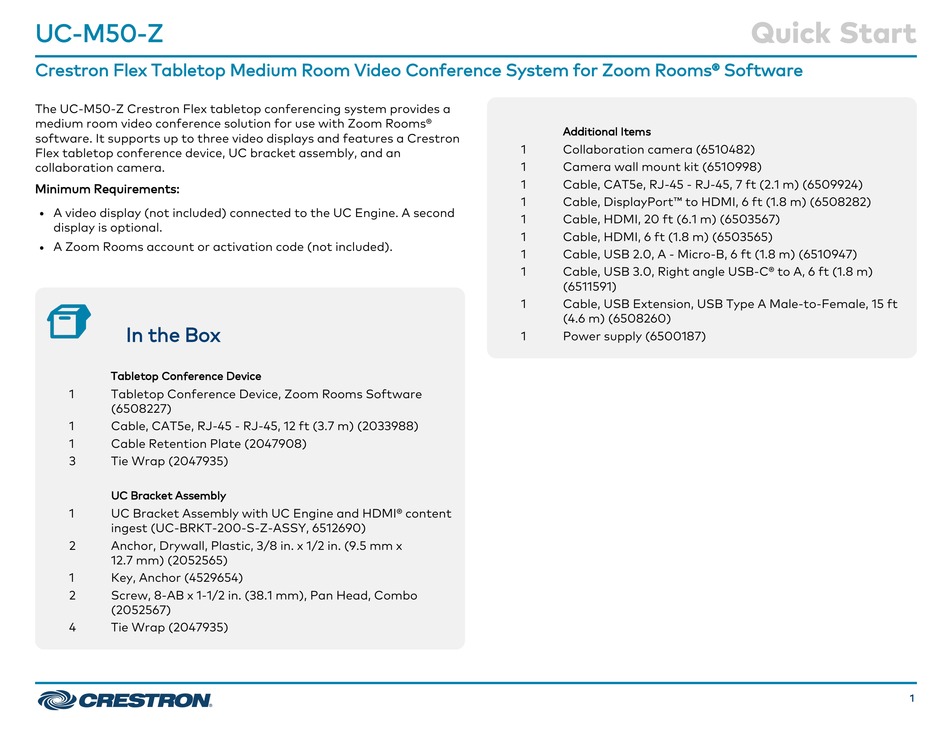

UC-M50-Z
Crestron Flex Tabletop Medium Room Video Conference System for Zoom Rooms® Software
The UC-M50-Z Crestron Flex tabletop conferencing system provides a
medium room video conference solution for use with Zoom Rooms®
software. It supports up to three video displays and features a Crestron
Flex tabletop conference device, UC bracket assembly, and an
collaboration camera.
Minimum Requirements:
A video display (not included) connected to the UC Engine. A second
l
display is optional.
A Zoom Rooms account or activation code (not included).
l
In the Box
Tabletop Conference Device
1 Tabletop Conference Device, Zoom Rooms Software
(6508227)
1 Cable, CAT5e, RJ-45 - RJ-45, 12 ft (3.7 m) (2033988)
1 Cable Retention Plate (2047908)
3 Tie Wrap (2047935)
UC Bracket Assembly
1 UC Bracket Assembly with UC Engine and HDMI® content
ingest (UC-BRKT-200-S-Z-ASSY, 6512690)
2 Anchor, Drywall, Plastic, 3/8 in. x 1/2 in. (9.5 mm x
12.7 mm) (2052565)
1 Key, Anchor (4529654)
2 Screw, 8-AB x 1-1/2 in. (38.1 mm), Pan Head, Combo
(2052567)
4 Tie Wrap (2047935)
Additional Items
1 Collaboration camera (6510482)
1 Camera wall mount kit (6510998)
1 Cable, CAT5e, RJ-45 - RJ-45, 7 ft (2.1 m) (6509924)
1 Cable, DisplayPort™ to HDMI, 6 ft (1.8 m) (6508282)
1 Cable, HDMI, 20 ft (6.1 m) (6503567)
1 Cable, HDMI, 6 ft (1.8 m) (6503565)
1 Cable, USB 2.0, A - Micro-B, 6 ft (1.8 m) (6510947)
1 Cable, USB 3.0, Right angle USB-C® to A, 6 ft (1.8 m)
(6511591)
1 Cable, USB Extension, USB Type A Male-to-Female, 15 ft
(4.6 m) (6508260)
1 Power supply (6500187)
Quick Start
1
