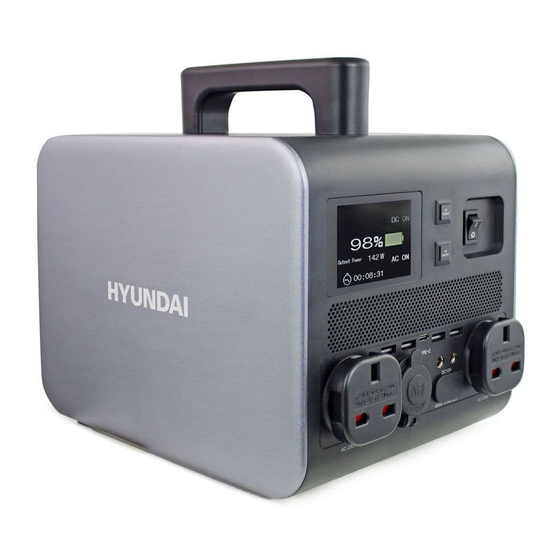

Hyundai HPS-300 User Manual

Power station
Hide thumbs Also See for HPS-300:

Advertisement

Quick Links

USER MANUAL
HPS-300/600/1100/1600
POWER
STATION
HPS-300/600/1100/1600
For Your Safety
Read and understand this manual before use.
Keep this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPS-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai HPS-300

Summary of Contents for Hyundai HPS-300

  • Page 1 USER MANUAL HPS-300/600/1100/1600 POWER STATION HPS-300/600/1100/1600 For Your Safety Read and understand this manual before use. Keep this manual for future reference.
  • Page 2 HPS-300/600/1100/1600 We are still constantly improving this power station, therefore, some parts of this power station may be changed in order to achieve the better quality, but the main functions and operations will not be alternated and changed. Your understanding would be greatly appreciated.

  • Page 3: Table Of Contents

    HYUNDAI Table of Contents SAFETY ................................. GENERAL DESCRIPTION ............................. MAIN PARAMETERS ............................OPERATION CONTROL AND DESCRIPTION ..................... OPERATION ................................STORAGE AND DOWNTIME MAINTENANCE .....................

  • Page 4: Safety

    HPS-300/600/1100/1600 1. SAFETY Please pay attention to the following before using this product, otherwise it may damage your electronic devices or cause a danger. To avoid fire or electrical shock hazard, observe all ratings on unit and products you intend to use.

  • Page 5: General Description

    DC 12V Cigarette Port: 12V appliances, etc. AC Output Port: Electric appliances such as Televisions, Laptops, Cooker, etc. * Electric appliances which you intend to use must be less than the device’s continuous output power. (HPS-300: 300W / HPS-600: 500W / HPS-1100: 1000W / HPS-1600: 1500W)

  • Page 6: Main Parameters

    HPS-300/600/1100/1600 3. MAIN PARAMETERS Model HPS-300 HPS-600 HPS-1100 HPS-1600 Capacity 24Ah (12.8V) 20Ah (25.6V) 40.5Ah (25.6V) 58.5Ah (25.6V) Battery type Lithium-iron-phosphate (LiFePO4) AC output Port 230/240V, 50Hz, Pure sine wave output (2×AC Port) Continue power 300W 500W 1000W 1500W Peak power...

  • Page 7: Operation Control And Description

    HYUNDAI 4. OPERATION CONTROL AND DESCRIPTION FRONT 1 DC ON/OFF status 2 AC/Solar charging indicator 3 Battery display 4 AC output power 5 Operating time 6 AC ON/OFF status 7 TYPE-C output port 8 USB output port 9 AC output port...

  • Page 8: Operation

    HPS-300/600/1100/1600 5. OPERATION 1) Using power station a. Press power switch (12) to turn on the power station, then LCD indicator (13) will be launched. b. Press AC ON/OFF (14) button to turn it on, AC ON character (6) will display.
  • Page 9 2. Solar charging will be halted automatically for the protection of solar charger during the night when there is no light. In order to resume solar charging, please disconnect and re-connect the solar charger. 3. For solar charging, it is recommended to use HYUNDAI solar charger or unless must use solar charger as following specification.
  • Page 10 HPS-300/600/1100/1600 3) EC5 Port a. The power station has enough power to assist start a vehicle's engine, while before using the EC5 , please make sure the remaining battery capacity is at least 60%. b. Connect the positive and negative polarities of the battery clamps to the positive and the negative polarities of car battery (Red to +, black to -).
  • Page 11 HYUNDAI 4) Alarm information description a. Overload When the using output power is more than specific output power which the model can be applied, the alarm area will display “OVERLOAD”. It is necessary to reduce the power of the electronic devices. If the AC output is turned off at this time, Press the AC ON/OFF button again and restart.

  • Page 12: Storage And Downtime Maintenance

    HPS-300/600/1100/1600 6. STORAGE AND DOWNTIME MAINTENANCE Failure to maintain your power station by following steps can result in battery damage. 1. Please charge your power station before storage and fully recharge it every 6 months at least. Store it in a cool and dry place.
  • Page 13 HYUNDAI Corporation 25, Yulgok-ro 2-gil, Jongno-gu, Seoul 03143 Korea Declare that the product detailed below : POWER STATION MODEL : HPS-300, HPS-600, HPS-1100, HPS-1600 Satisfies the requirements of the Council Directives : Low voltage directive 2014/35/EU Electromagnetic Compatibility 2014/30/EU ROHS Directive 2011/65/EU & (EU) 2015/863...
  • Page 14 HYUNDAI Corporation 25, Yulgok-ro 2-gil, Jongno-gu, Seoul 03143, Korea, Post Code : 03143 82 2 390 1114 www.hyundaicorp.com Copyright HYUNDAI Corporation All rights reserved. Made in P.R.C...
