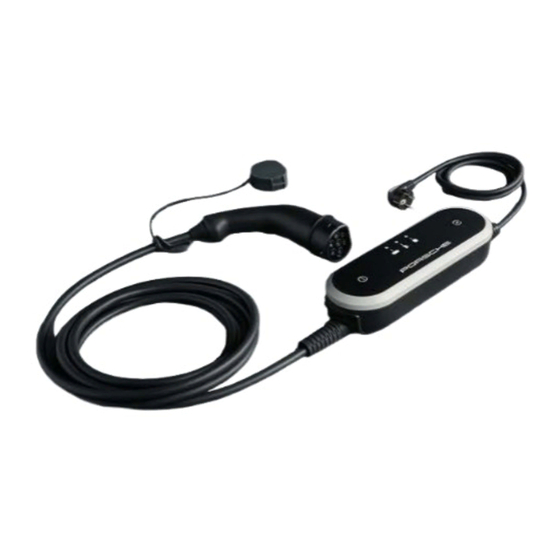

Porsche Mobile Charger
Good to know – Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Charger and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Porsche Mobile Charger

Summary of Contents for Porsche Mobile Charger

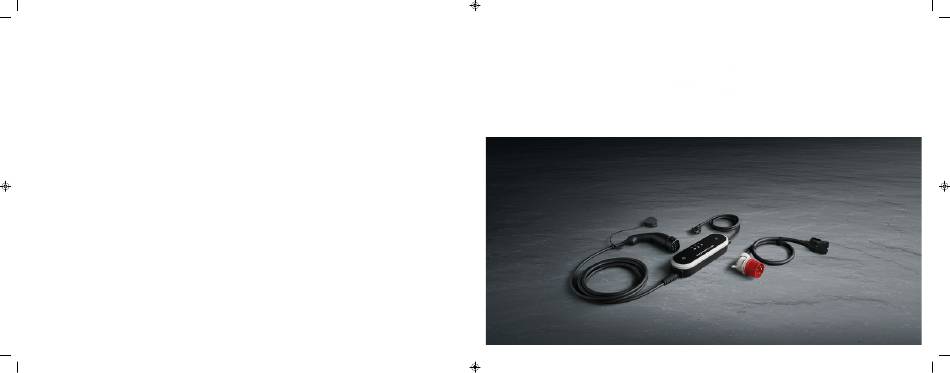

  • Page 1 Porsche Mobile Charger Good to know – Owner’s Manual...
  • Page 2 Dr. Ing. h.c. F. Porsche AG Porsche is fitted with any equipment not described Germany Vertrieb Customer Relations in this manual, your authorized Porsche dealer will be Porscheplatz 1 glad to provide information regarding correct opera- Operating instructions tion and care of the items concerned.
  • Page 3 About this Owner’s Manual 1. Instructions are numbered in cases where a se- quence of steps must be followed. Warnings and symbols 2. Instructions that must be followed on the cen- Different types of warnings and symbols are used in tral display.

  • Page 4: Table Of Contents

    Table of Contents To the Operating instructions Pictogram Explanation......3 Safety Safety instructions....... 4 Intended Use.

  • Page 5: To The Operating Instructions Pictogram Explanation

    To the Operating instructions To the Operating instructions There is a risk of electric shock due Pictogram Explanation to incorrect use. Depending on the country, various pictograms may be depicted on the charger. Observe the associated Owner’s The charger may only be used when the Manual, particularly the warning and temperature lies between –30 °C and safety instructions.

  • Page 6: Safety

    Further information is available from your au- Never immerse the charger or plugs in water or thorized Porsche dealer or your local electricity supplier. spray them directly with water (e.g. high-pres- sure cleaning equipment or garden hoses).

  • Page 7: Intended Use

    8 inches (20 capacity. cm) from all persons. Porsche recommends that you have the electri- cal installations used for charging checked reg- Observe the following instructions and recommenda- ularly by a qualified electrician. Ask a qualified...

  • Page 8: Scope Of Supply

    Scope of supply Scope of supply Fig. 1: Charger overview Supply cable (pluggable to control unit) Plug of the supply cable connection on the control unit Power plug for connecting to the power grid Vehicle plug (connector plug for the vehicle) Vehicle cable (permanently installed on the control unit) Control unit...

  • Page 9: Overview

    Overview g Refer to chapter “Status displays and error mes- Overview sages of the control unit“ on page 19. Charger control unit Fig. 2: Control unit On/Off button with light indicator and additional charging current limitation function Power grid/house connection light indicator Vehicle light indicator Control unit light indicator Reset button with light indicator...

  • Page 10: Requirements And Prerequisites

    Requirements and prerequisites Requirements and prerequi- – In order to ensure secure fastening, check the condition of the wall before installation. sites – Install the Basic wall mount so that it is not near Selecting the installation location pathways and the charging cables do not cross any pathways.

  • Page 11: Installing

    Installing Installing Installing the plug holder Installing the wall bracket Installing the Basic Wall Mount Fig. 5: Drilling dimensions Fig. 4: Distance from wall mount to plug holder 1. Remove plug holder 1 from the cover (Fig. 5) 2 (Fig. 5). When installing the plug holder, ensure a distance of 2.
  • Page 12 Installing Inserting the control unit in the wall mount Fig. 6: Inserting control unit 1. Guide the vehicle cable through the lower open- ing in the basic wall mount, fit the bottom of the control unit on the locking lug and engage it by pushing it to the rear.

  • Page 13: Setup

    Setup Setup Country Supply ca- Supply ca- bles for in- bles for do- Vehicle charging and supply cables dustrial mestic elec- Information on vehicle charging cables electrical trical outlets and plugs outlets Different vehicle charge ports A and vehicle plugs B Peru 5, 6, 7, 8 are available depending on country-specific vehicle...
  • Page 14 Setup Supply cables for industrial electrical out- lets IEC 60309-2 CEE 7/5; CEE 7/7 CEE 400 V/16 A Type E/Type F NEMA 14-30 6 h (shockproof) IEC 60309-2 BS 1363 CEE 400 V/32 A Type G NEMA 14-50 6 h Supply cables for domestic electrical out- NEMA 6-50/NEMA 14-50 (additional infor- lets mation)
  • Page 15 Setup General safety instructions Suitable power outlet/power plug types Requirements for the cable installation Electric shock and fire! Unsuitable power cable NEMA 6-50 DANGER DANGER Socket/plug Improper use of the charging equipment and failure Using unsuitable power cables or excessively high to comply with the installation and safety instruc- currents may cause a short circuit, electric shock, tions may cause a short circuit, electric shock, explo-...
  • Page 16 2. Lift the lever A (Fig. 8). 3. Pull out the plug B (Fig. 8) until resistance is first felt. 4. Close the lever A. 5. Pull out the plug B fully. 1. Time of printing. Further information is available from your authorized Porsche dealer.
  • Page 17 Setup Securing supply cables and plugs Fig. 9: Securing cables and plugs b The lever A (Fig. 9) is closed. 1. Insert the plug B (Fig. 9) into the control unit until resistance is first felt. 2. Lift the lever A. 3. Push in the plug B fully. 4.

  • Page 18: Operation

    “Technical Data“ on page 27. – Temperature of the high-voltage battery and control unit – Passenger compartment precooling/heating ac- tivated 1. Time of printing. Further information is available from your authorized Porsche dealer.
  • Page 19 DANGER cuit, fire, explosion full charging performance not being available. Further 3. Charging starts automatically. information is available from your authorized Porsche �� The light indicator of the On/Off button Using the charger without active ground wire moni- dealer. pulsates green.
  • Page 20 Operation Reset is off. 1. Press the buttons On/Off and Reset Release the buttons after the control unit light indicator has flashed six times. 2. After 1 second, press the On/Off and Reset buttons again. Release the buttons after the control unit light indicator has flashed six times.

  • Page 21: Status Displays And Error Messages Of The Control Unit

    Status displays and error messages of the control unit Status displays and error messages of the control unit Light indicators Meaning Remedy On/Off lights green. The charger is ready to charge, but does not Start the charging process. g Refer to chapter “Starting charging“ on page 17. charge.
  • Page 22 Control unit lights up yellow. If the fault persists, have the control unit checked by a Reset is off. qualified specialist dealer/authorized Porsche dealer. On/Off lights up red. The power plug is overheated. After the power plug has cooled down, the fault will be auto- matically reset and the charging process continued.
  • Page 23 Reset is off. g Refer to chapter “Starting charging“ on page 17. If the fault persists, have the vehicle checked by a quali- fied specialist dealer/authorized Porsche dealer. On/Off lights up red. The charging infrastructure of the power Disconnect the charger from the power supply and recon- grid/house connection has overvoltage.
  • Page 24 17. Reset is off. Only grounded power grids: Have the control unit checked by a qualified specialist dealer/authorized Porsche dealer and have the power grid/house connection checked by a qualified electrician. On/Off lights up red.
  • Page 25 If the fault persists, have the control unit checked by Vehicle lights up red. a qualified specialist dealer/authorized Porsche dealer The charging process is interrupted. Control unit lights up red. and have the power grid/house connection checked by Reset lights up red.

  • Page 26: Transport

    Transport Transport Securing the bag (example: Panamera 4 E- Hybrid) Unsecured load WARNING An unsecured, incorrectly secured or incorrectly posi- tioned charger can slip out of place and endanger occupants when braking, accelerating, changing di- rection or in the event of an accident. Never transport the charger unsecured.

  • Page 27: Cleaning And Maintenance

    Cleaning and maintenance Cleaning and maintenance Check the charger for damage and soiling at regular intervals and clean it if necessary. Electric shock, fire DANGER Risk of serious or fatal injury due to fire or electric shock. Never immerse the charger or plugs in water or spray them directly with water (e.g.

  • Page 28: Disposal

    Do not throw electrical/electronic devices in with household waste. Dispose of electrical/electronic devices in ac- cordance with the applicable environmental pro- tection regulations. If you have questions about disposal, contact an authorized Porsche dealer.

  • Page 29: Technical Data

    Technical Data Technical Data Electrical data MCB36U1 MCB96U1 Power 3.6 kW 9.6 kW Rated current 16 A, 1-phase 40 A, 1-phase Mains voltage 120 V – 240 V, 120 V to ground 120 V – 240 V, 120 V to ground Mains frequency 50 Hz/60 Hz 50 Hz/60 Hz...

  • Page 30: Production Information

    IC-CPD: CNC ID: C-24292 visit https://www.porsche.com/international/ac- Great Britain cessoriesandservice/porscheservice/vehicleinforma- Production Information tion/documents/ or contact a Porsche Partner. Date of Manufacture Importers The charger’s date of manufacture can be found on the identification plate following the abbreviation Abu Dhabi: Ali & Sons Co. L.L.C “EOL”.
  • Page 31 Technical Data Phone: +7-495-580-9911 Singapur: Porsche Singapore Porsche Asia Pacific Pte Ltd 20 McCallum Street #12-01 Tokyo Marine Centre Singapore 069046...

  • Page 32: Index

    Index Index Installing the plug holder......9 Intended Use........5 Vehicle charging cable Cable and plug types.
