Installation and Conversion Instructions
LED Headlights (I-no. 8EX, 8EY, 8IS)
Revision:
This bulletin replaces bulletin Group 9, #31/16, dated June 23, 2016.
Information under "Restriction" was amended with "(I-no. 8BE/8EA/8EE/8EF/8EG/8JE)".
Model Year:
As of 2016
Concern:
Retrofitting
Restriction:
Only for vehicles with Bi-Xenon main headlights incl. Porsche Dynamic Light System (PDLS), (I-no.
8BE/8EA/8EE/8EF/8EG/8JE).
Information:

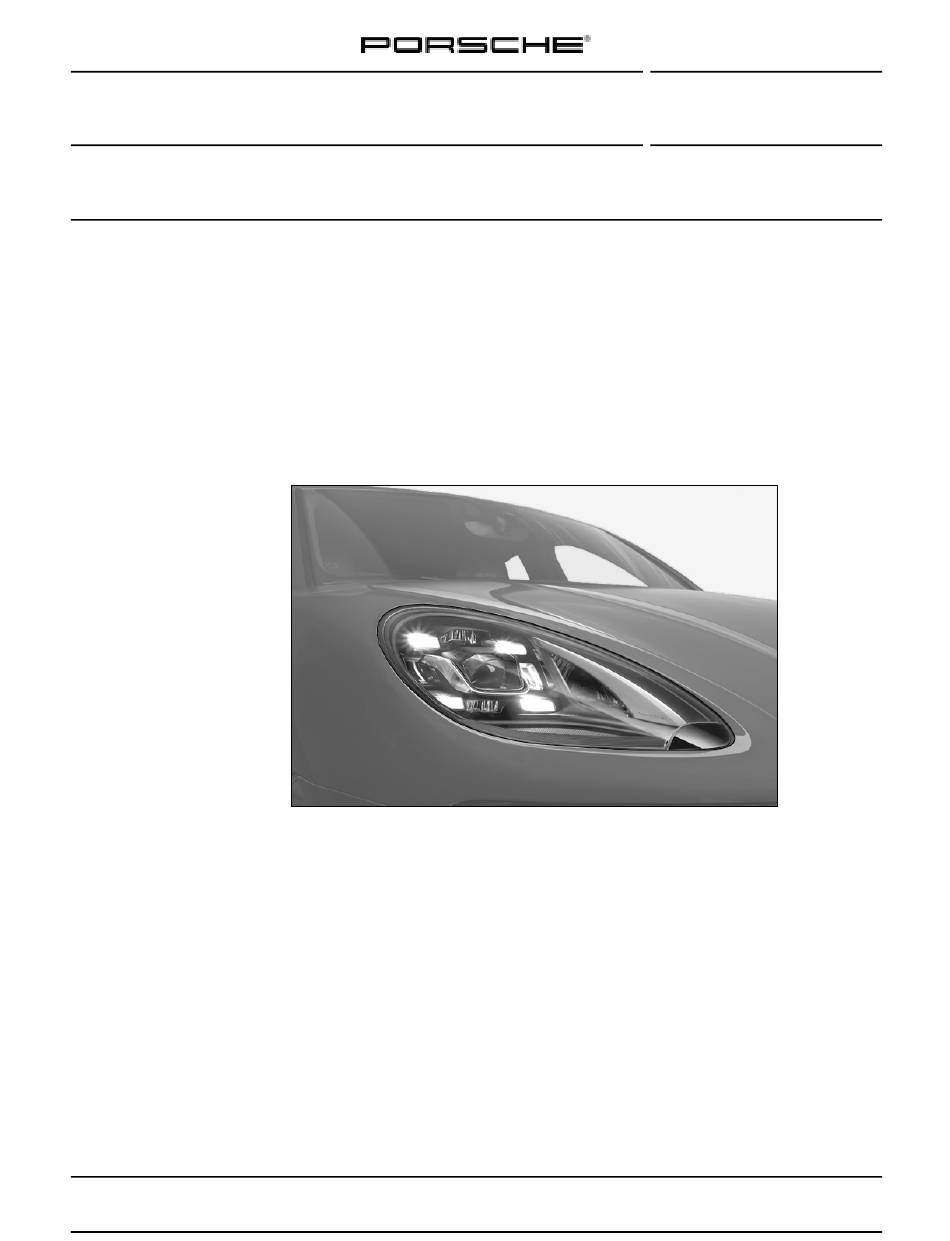

The LED headlights incl. PDLS Plus have an unmistakable Look with the 4-point LED spots.
Parts Info:
95B.044.900.92
2017© Porsche Cars North America, Inc.
LED headlights, USA, right-hand traffic, set
Tequipment
Macan (95B)
31/16
9415
ENU
Feb 9, 2017
Page 1 of 10
