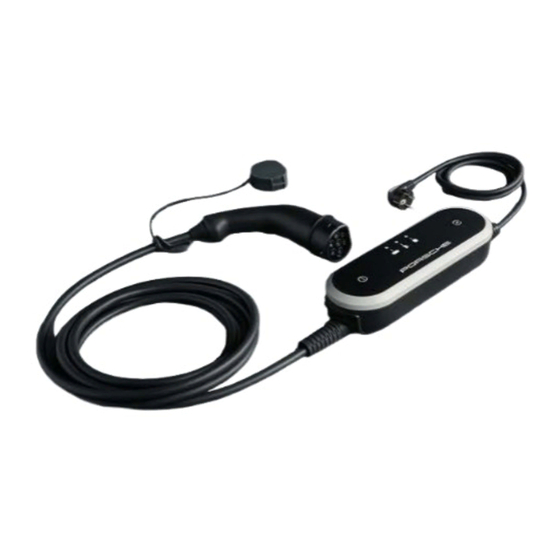

Porsche Mobile Charger
Good to know – Driver's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Charger and is the answer not in the manual?

Questions and answers

Related Manuals for Porsche Mobile Charger

Summary of Contents for Porsche Mobile Charger

  • Page 1 Porsche Mobile Charger Good to know – Driver’s Manual...
  • Page 2 Because of different legal requirements in individual countries, the equipment in your vehicle may vary 70435 Stuttgart Germany from what is described in this manual. If your Porsche Germany is fitted with any equipment not described in this Driver’s Manual...
  • Page 3 You can access the full Driver's Manual at the follow- Possible serious injury or WARNING ing web address: death https://tinyurl.com/porsche-e-help Failure to observe Warning notices in the "Warning" category can result in serious injury or death. Possible moderate or mi- CAUTION nor injury Failure to observe Warning notices in the "Caution"...

  • Page 4: Table Of Contents

    Table of contents To the Driver's Manual Key to pictograms....... 3 Security Safety instructions.

  • Page 5: To The Driver's Manual

    To the Driver's Manual To the Driver's Manual Risk of electric shock due to uninten- Key to pictograms ded use. Depending on the country, various pictograms may be attached to the charger. Observe the operating instructions Operate the charger within a temperature provided, particularly the warnings range from -30 °C to +50 °C.

  • Page 6: Security

    Driver’s Manual. installation with an energy management system. – The charger should preferably be operated in earthed mains supply systems. The protective conductor lead must be properly installed. 1. Time of printing. Further information is available from your Porsche partner.

  • Page 7: Intended Use

    When charging the high-voltage battery via the household/industrial electrical outlet, the elec- trical installation may be loaded to its maximum capacity. Porsche recommends that you have electrical installations used for charging checked regularly by a qualified electrician. Ask a qualified electri- Fig. 2: Control unit cian which inspection intervals are appropriate for your installation.

  • Page 8: Requirements And Conditions

    Requirements and conditions Installing – The indicator lights A – C (Fig. 2) indicate the op- Do not install the basic wall mount under sus- erating state of the control unit, whether charging pended or hanging objects. Installing the wall mount current limiting is set and possible faults by means of –...
  • Page 9 Installing Installing the connector fastener Attaching the control unit to the wall mount Fig. 5: Drilling dimensions Fig. 4: Distance between wall mount and connector fastener 1. Remove the connector fastener 1 (Fig. 5) from the cover 2 (Fig. 5). Fig. 6: Attaching the control unit When installing the connector fastener, ensure a dis- 2.

  • Page 10: Set Up

    Set up Set up Country Supply cables Supply cables for industrial for household Vehicle charging cables and supply electrical out- electrical out- cables lets lets Information on vehicle charging cables Russia, Uk- 5, 6, 7, 8 and plugs raine Different vehicle charge ports A and vehicle plugs B are available depending on the vehicle equipment.
  • Page 11 WCZ8 20 A NEMA 6-50 CEE 7/5; CEE 7/7 Type E/type F (Safety plug) IEC 60309-2 BS 1363 CEE 230 V/16 A 6 h Type G 1. Time of printing. Further information is available from your Porsche partner. 2. for Mexico: 12 A...
  • Page 12 Set up NEMA 6-50 / NEMA 14-50 (additional in- Power socket requirements formation) Unsuitable mains sockets DANGER M09A-15 Information Type I An unsuitable mains socket can cause a short circuit, Scope electric shock, explosion, fire, or burns. This usage recommendation applies only to regions Only use only a type of mains socket that is with NEMA 6-50 / NEMA 14-50 standard.
  • Page 13 The cable must have a 50-amp fuse. Only use copper cables with a minimum cross- section of 8 AWG, or preferably 6 AWG. 1. Time of printing. Further information is available from your Porsche partner.

  • Page 14: Operating

    5. Pull out plug B fully. Contact your Porsche partner or local power Operating instructions supplier. NOTICE Risk of damage to the charger 1. Time of printing. Further information is available from your Porsche partner.

  • Page 15: Charge

    Further 3. Charging starts automatically. For information on connecting and disconnecting the information is available from your Porsche partner. �� The indicator light on the ON/OFF button vehicle cable to and from the vehicle charge port and pulses green.
  • Page 16 Operating Deactivating and activating protective After the control unit indicator light flashes 6 times, release the buttons. conductor monitoring 2. After 1 second, press the ON/OFF and Reset Electric shock, short cir- DANGER buttons again. cuit, fire, explosion After the control unit indicator light flashes 6 Using the charger without active protective conduc- times, release the buttons.

  • Page 17: Control Panel Status Indicators And Error Messages

    Control panel status indicators and error messages Control panel status indicators and error messages Pilot lights Meaning Remedy ON/OFF lights up green. The charger is ready but not charging. Start charging process. g Refer to chapter "Starting charging" on page 13. Power supply/household connection is off.
  • Page 18 Until it has cooled, charging is only at reduced power. Vehicle is off. If the fault persists, have the control panel checked by a Control panel lights up yellow. specialist dealer/ Porsche Partner. Reset is off. ON/OFF lights up red. The power plug is overheated.
  • Page 19 Power supply/household connection is off. The charging process is interrupted. If the fault persists, have the vehicle checked by a spe- Vehicle flashes yellow. cialist dealer/Porsche Partner. Control panel is off. Reset is off. ON/OFF lights up red. The supply or vehicle cable is faulty.
  • Page 20 Control panel is off. rupted the charging process. Only earthed mains supply systems: Have the control Reset is off. panel checked by a specialist dealer/ Porsche Partner and the power supply/household connection checked by a qualified electrician. ON/OFF lights up red.
  • Page 21 Power supply/household connection lights up If the fault persists, have the control unit checked by red. The charging process is interrupted. a specialist dealer/ Porsche Partner and the power sup- ply/household connection checked by a qualified electri- Vehicle lights up red. cian.

  • Page 22: Transport

    ON/OFF is off. The indicator light in the ON/OFF button on Have the control panel replaced by a specialist dealer/ the control panel is defective. Porsche Partner. Power supply/household connection lights up red. The charging process is interrupted. Vehicle lights up red.
  • Page 23 Hand in old batteries and electric and electronic devices at a collection point. The 12-volt lithium battery is hazardous goods. Do not tamper with this battery and never dis- pose of it yourself. For further information on proper disposal: Contact your Porsche partner.

  • Page 24: Technical Data

    Technical Data Technical Data Electrical data 9Y0.971.675… MCB72E2 x MCB96J1 x MCB11E3 x MCB72E1 x MCB36E1 x MCB72S1 x MCB36S1 x MCB36J1 x Power 3.6 kW 7.2 kW 7.2 kW 9.6 kW 11 kW Rated current 16 A, 1-phase 16 A, 2-phase 32 A, 1-phase 40 A, 1-phase 16 A, 3-phase...
  • Page 25 Technical Data Electrical data 9Y0.971.675… MCB72E2 x MCB96J1 x MCB11E3 x MCB72E1 x MCB36E1 x MCB72S1 x MCB36S1 x MCB36J1 x Degree of protection IP55 (NEMA 3) IP55 (NEMA 3) IP55 (NEMA 3) IP55 (NEMA 3) IP55 (NEMA 3) Mechanical data Weight of control panel 2.4 - 3.5 kg Wall mount dimensions...

  • Page 26: Identification Plate

    (e.g. VDE 0702), please re- Dubai: Al Nabooda Automobiles L.L.C fer to https://www.porsche.com/international/ac- Porsche Centre Dubai cessoriesandservice/porscheservice/vehicleinforma- Sheikh Zayed Road E11 tion/documents/ or contact a Porsche partner. Fig. 11: Identification plate (example) Dubai Product name Brazil United Arab Emirates Product number Power and rated current P.O.
  • Page 27 San Lorenzo Almecatla, Cuautlancingo 72700 Puebla Telefon: +52 222 230 9971 Russia Porsche Russland Ленинградское шоссе дом 71A, строение 10 125445, Москва, Россия Telefon: +7-495-580-9911 Singapore Porsche Asia Pacific Pte Ltd 20 McCallum Street #12-01 Tokio Marine Centre Singapore 069046...

  • Page 28: Index

    Index Index Limiting of charging current..... 13 Technical Data....... . . 22 Tools.
