8.2.4. Spectrum Settings

In the Spectrum settings tab, it is possible to specify a large number of settings for the processing of the spectra.

Zero Fill Factor: If not zero, the interferograms will be extended with zeros before the Fourier transform
is applied. A value of one means that the interferogram will be doubled in length and a value of two
means that the interferogram will be quadrupled. This increases the number of data points in the
spectrum and increases the apparent resolution of the spectra.
Page 31

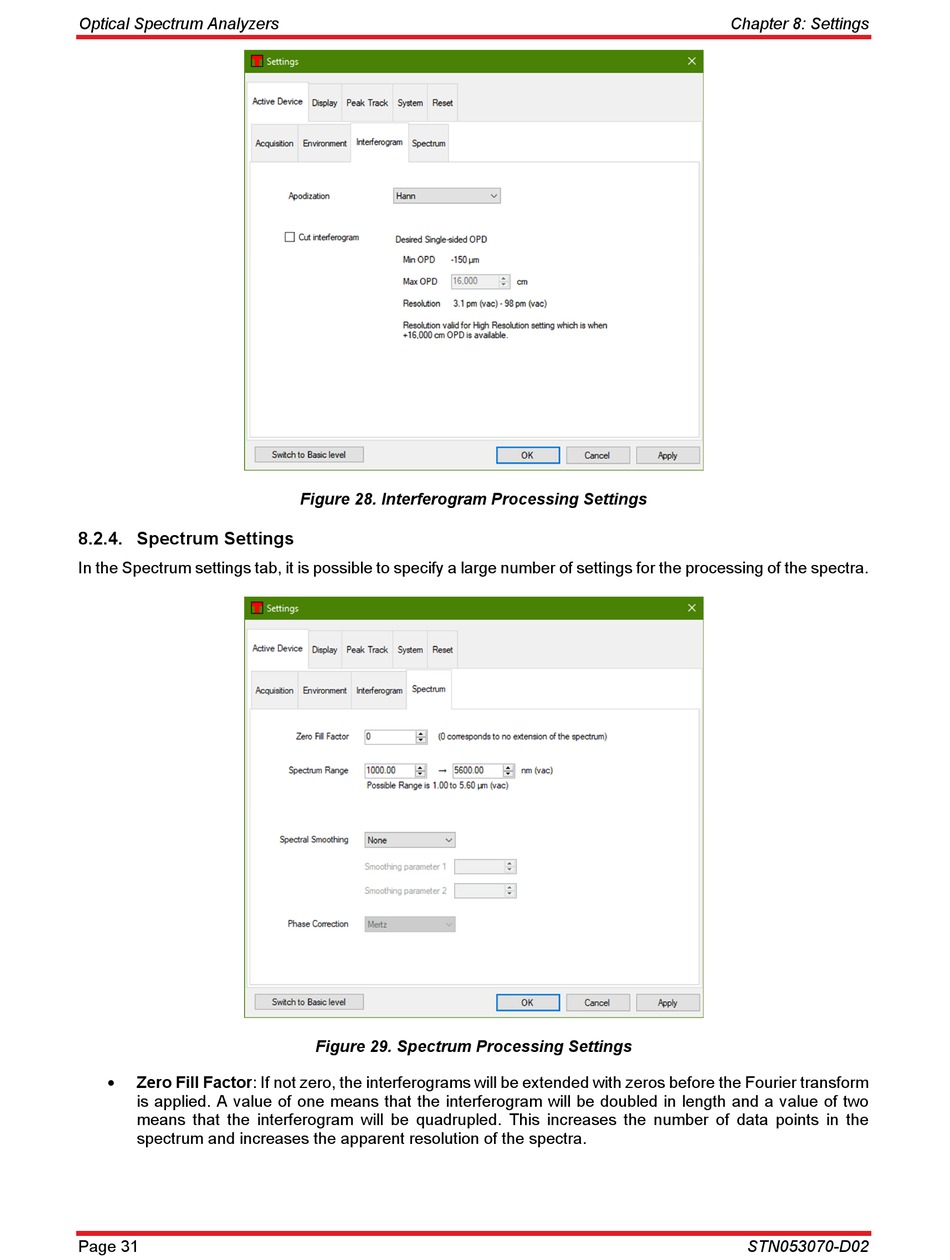

Figure 28. Interferogram Processing Settings
Figure 29. Spectrum Processing Settings
