MIG200 welding machines adopts the latest pulse width modulation (PWM) technology and insulated gate
bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as to replace
the traditional Transistor transformer with the medium frequency transformer. its characterized with portable, small
size, light weight, low consumption and etc. It is also an intelligent and easy-to-operate multi-function welding
machine with MMA, MIG GAS, MIG GASLESS and LIFT TIG. It has the characteristics of strong welding
performance and diversified usage scenarios. It can be used in both gas and gasless conditions, and the welding
effect is excellent. It is highly praised by welding enthusiasts. It is also very friendly to beginners in welding and can
quickly get started.
Part 1: Machine Introduction
electrical connection.
Spool gun switch control socket
10.
Polarity slection plug
11.
In MMA and LIFT TIG state, this plug does not need to be connected; in MIG gas welding state, this plug
is connected to positive terminal 8; in MIG airless welding state, this plug is connected to negative
terminal 9.
Operation Manual

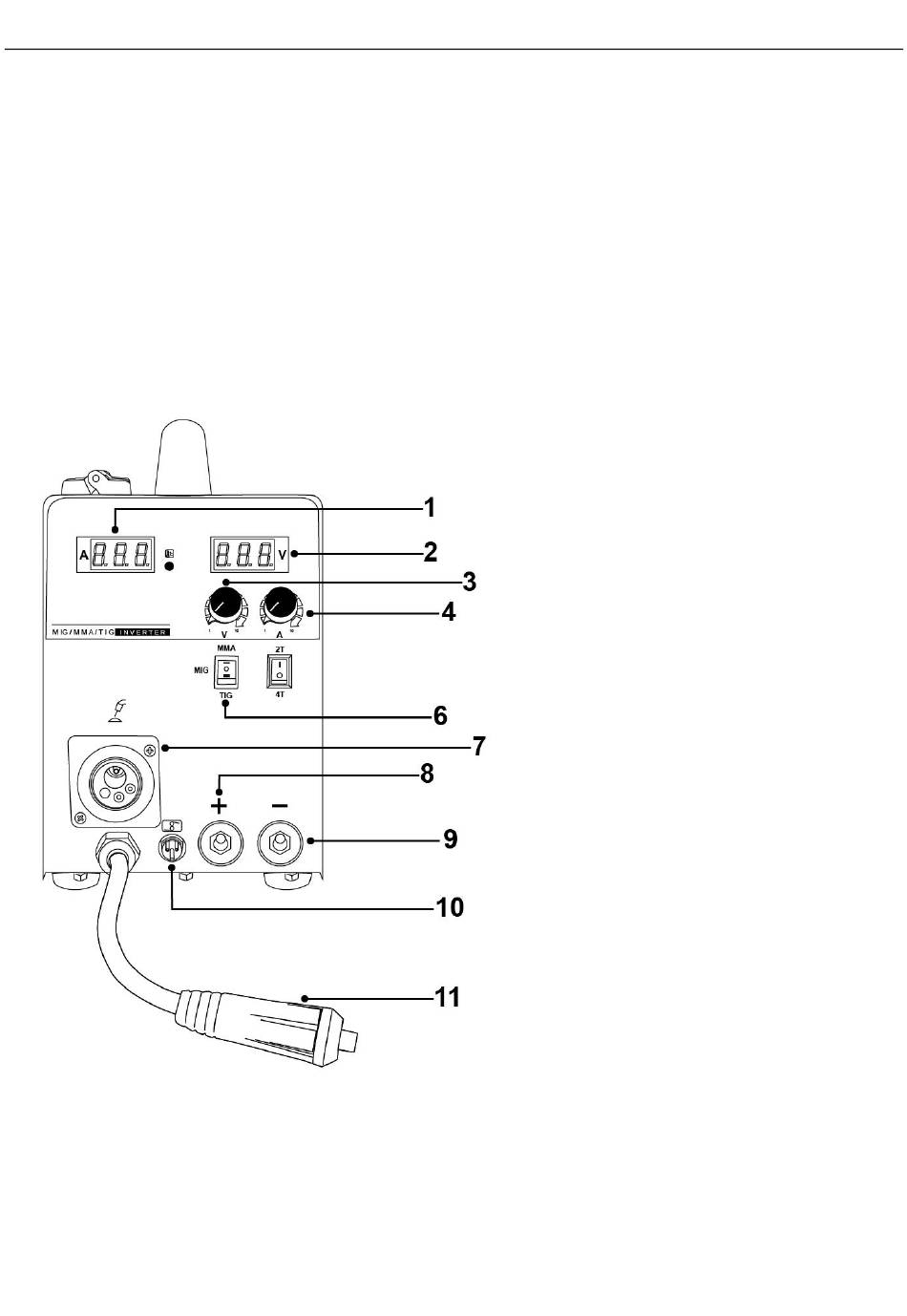

Current display meter.
1.
Digital ammeter is used to display preset
current and actual output current.
Voltage display meter.
2.
Digital ammeter is used to display preset
voltage and actual output voltage.
Adjust the voltage knob
3.
Adjust the current and wire feed speed
4.
Knob
2T/4T function selection
5.
MIG/MMA/LIFT TIG function selection
6.
MIG welding torch and spool gun
7.
connector
Positive terminal
8.
Positive Terminal. Welding current flows
from the power source via heavy duty
bayonet type terminals. It is essential,
however,that the male plug is inserted
and turned securely to achieve a sound
electrical connection.
Positive terminal
9.
Positive Terminal. Welding current flows
from the power source via heavy duty
bayonet type terminals. It is essential,
however,that the male plug is inserted
and turned securely to achieve a sound
