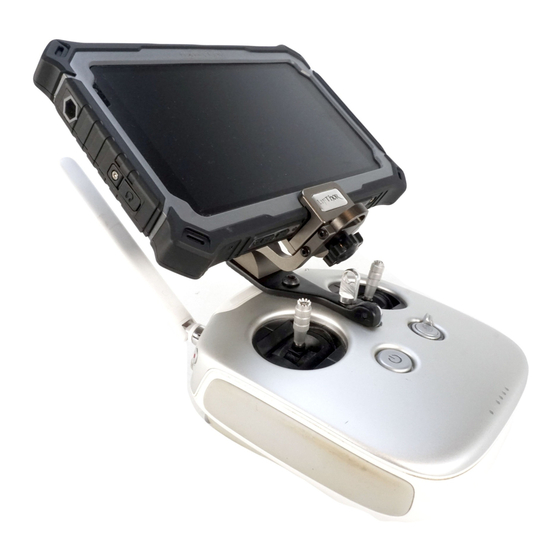

- Page 1 LITE TRIPLTEK mount for Phantom 4 / Inspire / Agras by Thor’s Drone World User’s Manual...
- Page 2 Congratulations on your new LITE the Ultimate Tablet holder for DJI Phantom / DJI Inspire / DJI Agras...
- Page 3 Content: Mounting bracket Screws (x2) & washer Hex Key (x2) Tablet clamp Compatible with 7.9” up to 13” devices Additional tools needed: -Flat Screwdriver...
-
Page 4: How To Assemble
How to assemble: Remove the OEM bracket from the Remote control with the help of a screwdriver. (not included) - Page 5 With the tips of your fingers unscrew the rear support of the bracket to remove the OEM bracket.
- Page 6 Align the LifThor Lite mounting bracket and secure lightly with the smaller screw with the smaller Hex Key (Allen key) provided...
- Page 7 Secure the rear end of the bracket with the bigger screw and washer provided, once secured in place tighten the front screw by pushing down the bracket to align properly.
- Page 8 Unscrew the tightening ring from the back of the tablet clamp and place it on the ball joint tightening ring ...
- Page 9 tightening ring Attach the clamp to the ball joint and screw the ring back to secure the clamp position / angle.
- Page 10 The clamp has two mechanisms to ensure Ratchet part your tablet sit secure to adjust the and in place. height The first mechanism is Lock the ratchet part, to adjust to the size of your tablet. We recommend setting it a little smaller (1”...
- Page 11 Place the tablet in landscape mode by pulling the spring *Scan the QR code mechanism with your phone upwards and for a video tutorial release it to secure the tablet in place. You can adjust the top clamp brackets, if needed, to avoid pressing on any buttons...
- Page 12 All set! Enjoy your flight!
- Page 13 www.lifthor.com...
