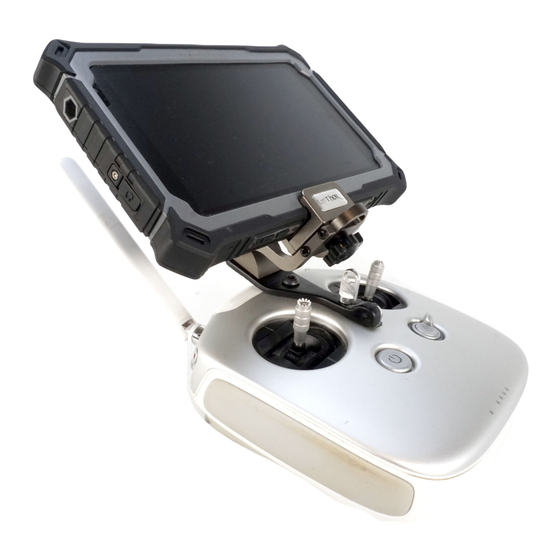

- Page 1 LITE TRIPLTEK mount for Phantom 4 / Inspire / Agras by Thor’s Drone World User’s Manual...
- Page 2 Congratulations on your new LITE TRIPLTEK TRIPLTEK® holder for DJI Phantom / DJI Inspire / DJI Agras...
- Page 3 Content: Mounting bracket Hex Key (x2) TRIPLTEK Screws (x2) bracket & washer Tripod knob Additional tools needed: - Flat screwdriver - 8mm Wrench Key...
-
Page 4: How To Assemble
How to assemble: Remove the OEM bracket from the Remote control with the help of a screwdriver. (not included) - Page 5 With the tips of your fingers unscrew the rear support of the bracket to remove the OEM bracket.
- Page 6 Align the LifThor Lite mounting bracket and secure lightly with the smaller screw with the smaller Hex Key (Allen key) provided...
- Page 7 Secure the rear end of the bracket with the bigger screw and washer provided, tilt the extension arms backwards to access, once secured in place tighten the front screw by pushing down the bracket to align properly. extension arms...
- Page 8 Remove the TRIPLTEK bracket by unscrewing the tripod knob from the mounting bracket.
- Page 9 Unscrew the TRIPLTEK mount from the back with the small Hex Key Provided.
- Page 10 Center the front bracket on the TRIPLTEK tablet and align the back part with the front bracket...
- Page 11 Secure the bracket in place by screwing it back. We recommend placing both screws before securing it tightly, to help to keep it aligned. Once secured your TRIPLTEK tablet is ready to be mounted.
- Page 12 Mount your TRIPLTEK Tablet to your remote control by securing it with the tripod knob provided, make sure to properly adjust the position.
- Page 13 Once you have adjusted the preferred position/height you can tighten the extension arms a little more from the back with the help of a wrench key to secure it in place.
- Page 14 All set! Enjoy your flight!
