Thor’s Drone World TRIPLTEK User Manual

Hide thumbs Also See for TRIPLTEK:

Download this manual

TRIPLTEK

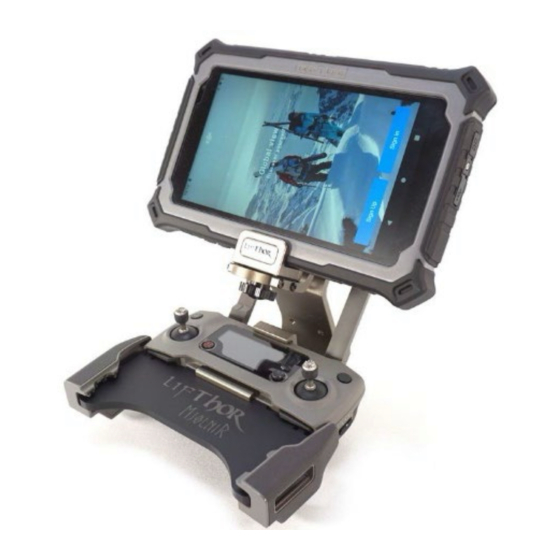

bracket for

by Thor's Drone World

User's Manual

*Compatible with both Mavic & EVO versions

Need help?

Do you have a question about the TRIPLTEK and is the answer not in the manual?

Page 1 TRIPLTEK bracket for by Thor’s Drone World User’s Manual *Compatible with both Mavic & EVO versions...
Page 2 TRIPLTEK mounting bracket...
Page 3 Content: • Mounting bracket TRIPLTEK bracket • 2x Hex Keys • Tripod Knob •...
Page 4: How To Assemble
How to assemble: Remove the TRIPLTEK bracket by unscrewing the tripod knob from the mounting bracket. Mounting Bracket tripod knob TRIPLTEK Bracket...
Page 5 Replace the aluminum ball joint from your LifThor Mjølnir holder with the mounting bracket...
Page 6 Make sure the mounting bracket is properly secured to your LifThor Mjølnir holder. extension arms...
Page 7 Unscrew the TRIPLTEK mount from the back with the small Hex Key Provided.
Page 8 Center the front bracket on the TRIPLTEK tablet and align the back part with the front bracket...
Page 9 Secure the bracket in place by attaching the rear piece. We recommend placing both screws before securing it tightly, to help it keeping it aligned. Once secured your TRIPLTEK tablet is ready to be mounted.
Page 10 Mount your TRIPLTEK Tablet to your remote control by securing it with the tripod knob provided. Make sure to adjust properly the position.
Page 11 Once you have adjusted the prefered position/height you can tighten the extension arms on the back with the help of a 8mm wrench key to secure it in place.
Page 12 All set! Enjoy your flight!
Page 13 www.lifthor.com...
