- Page 1 by Thor’s Drone World User’s Manual...

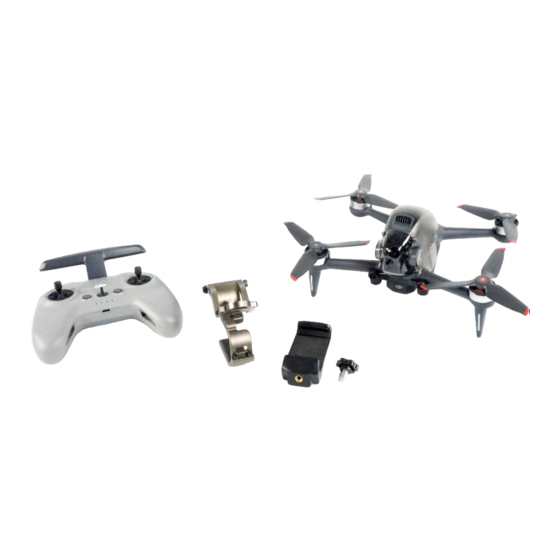

- Page 2 Congratulations on your new Phone / Tablet holder for DJI FPV...
- Page 3 Content: Aluminum body Tripod knob Phone / Tablet Clamp Compatible with Smart phones and tablets up to 10.5” M4 Screw Hex Key / Allen Key (x2)
-
Page 4: How To Assemble
How to assemble: Raise the top bracket from the aluminum body to make access. If needed use the big Hex Key provided to loosen slightly the hinge bolt. *There is no need to unmount the phone/tablet clamp which comes already mounted Using the smaller Hex key provided, unscrew the two small screw located in the... - Page 5 Once the bracket has been disassembled, align it back on the controller...
- Page 6 Replace the screws and tighten them.
- Page 7 Once the mount is positioned, apply light pressure to push it sideways to align it with the RC’s integrated lanyard hook /eyelet.
- Page 8 Secure the mount in place by screwing the M4 screw provided through the lanyard hook onto the LifThor mount...
- Page 9 Lower back the top bracket and mount the phone/tablet clamp by using the tripod knob provided. You can fix the position of the top bracket by tightening the hinge bolt with the big hex key.
- Page 10 This Phone clamp consist of a doble expanding mechanism. The lower mechanism supports the use of any Smart Phone. To unlock the top bracket, push the release bottom located on the top to expand both lower and upper brackets so it can support up to a 10.5”...
- Page 11 Mount your device in place.
- Page 12 All set! Enjoy your flight!
- Page 13 www.lifthor.com...
