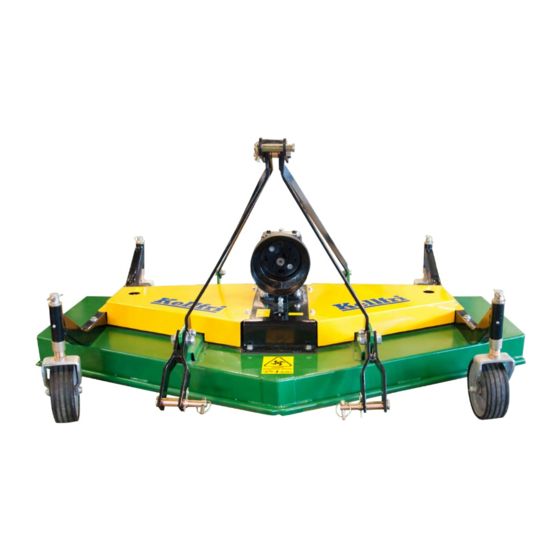

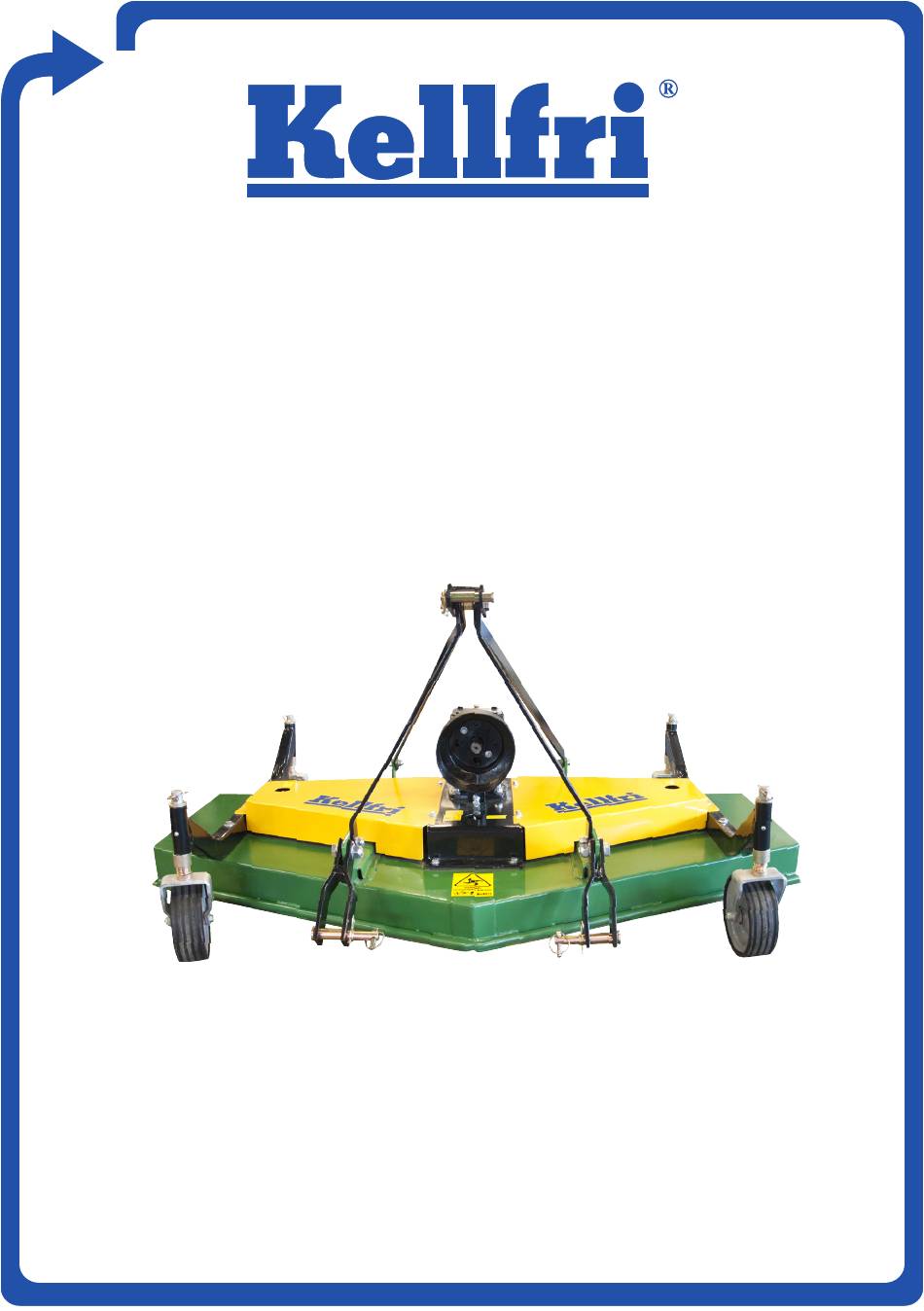

- Page 1 35-FM180 PARK MOWER CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT! TRANSLATED FROM THE ORIGINAL...
-
Page 2: Table Of Contents
Table of Contents Introduction Product information Technical data Basic safety instructions Product safety information Drive safe on public roads In case of emergencies Personal protective equipment Surroundings Warning decals Before use Cutting instruction Transport and storing Maintenance and service 11-12 Spare parts Exploded diagram 13-15... -
Page 3: Introduction
INTRODUCTION Thank you for choosing a product from Kellfri AB. By following the general safety information, instruction manual and common sense, you will get many years of enjoyable use of the prod- uct. Kellfri’s tools and machines are aimed for farmers with high demands on functionality. -
Page 4: Basic Safety Instructions
Kellfri AB, Munkatorpsgatan 6, 532 37 SKARA Sweden. Tel.: +46 (0)511 242 50 (Pls. contact the retailer) https://www.kellfri.co.uk/ Do not work with the equipment or product if you feel ill, tired or are under the influence of alcohol. -
Page 5: Product Safety Information
PRODUCT SAFETY INFORMATION The user of the machine should understand the contents of this manual before use, service and installation of the equipment to the tractor and all other relevant measures. Never wear jewelry, loose clothing, ties, scarves, belts, unbuttoned jackets that can get caught in moving parts. - Page 6 WORKSTATION: The driver must remain in the driver’s seat during the entire operation. If the operator leaves the tractor, the PTO must be disengaged, shut down the tractor engine and pull the handbrake. What to consider when running machines equipped with PTO The transmission gearbox is protected by both the drive shaft and the shear bolt.
- Page 7 Risk during disengaging of the machine The heavier the rotating part is, the longer it will continue to rotate after the drive has been switched off. This feature is called ”free-wheeling” . Rotating blades and other components, such as drive shafts, etc. will continue to spin after the drive has been disconnected. Damages: •...
-
Page 8: Drive Safe On Public Roads
Drive safe on public roads Always follow traffic safety on public roads and follow the rules applies for driving tractor with towed equipment gear on public road. Make sure reflectors, warning and / or warning flag that indicates protruding equipment is mounted on the machine or tractor. -
Page 9: Warning Decals
WARNING DECALS Make sure that the warning labels are always visible, clean the warning labels if necessary. Do not wash with high pressure washer directly on the warning label. If any part of the decal is worn or label becomes frayed or otherwise unreadable, order new decals. SYMBOL EXPLANATION Before starting any operation. -
Page 10: Before Use
BEFORE USE Read the safety information and instruction manual carefully. Be sure you understand the safety measures, instruction manual and warning labels. Use common sense when operating the machine and use only appropriate personal protective equipment. Always check the performance and the machine combination that are used. It’s highly important these matches in a satisfactory manner. -
Page 11: Use
Only people who understand the safety information and instructions in this manual may op- erate the equipment. Be alert and careful when working with the machine and only use the tool or product in the manner described in this manual. When working with equipment that has moving parts, there is always the risk of injury. -
Page 12: Maintenance And Service
MAINTENANCE AND SERVICE Ensure that the unit is stable and cannot tip over during maintenance and service. Replace damaged or worn parts immediately to reduce the risk of abrasion. Always perform mainte- nance, service and inspection, as recommended. Use only original replacement parts or spare parts with equivalent performance to reduce the risk of damage. -
Page 13: Spare Parts
FILLER PLUG LEVEL PLUG DRAIN PLUG SERVICE INTERVALS / MAINTENANCE Before each run Check level Oil type: Gear oil 80W-90 Quantity: 1.5 L 50 hours First oil change 100 hours or my 1gg / year Oil change SPARE PARTS ITEM DESCRIPTION ITEM DESCRIPTION... -
Page 14: Exploded Diagram
Item DESCRIPTION Qty. Oil cup M6 GB6184-86 Lock nut M24*1.5 Bearings 60205 Fixing plate Spacer Cover Key A8X28 Shaft for blade Blade Plain washer 18 Lock nut M18*1.5 Item DESCRIPTION Qty. Item DESCRIPTION Qty. Bolt M12x110 Lock nut M14 Plain washer 12 Rubber wheel Steel rim Wheel fork... - Page 16 Item DESCRIPTION Qty. Item DESCRIPTION Qty. Strap protective cover - left Lock nut M14 Wheel Set H-bracket Wheel Bolt M14x40 Pulley - Single Bolt - square head M12x60 Knife - complete Nut M12 Pulley - doubled (small) Spring washer Bolt M10x30 Distance - rubber Washers Gearbox...
-
Page 17: Instructions For Shortening The Pto
INSTRUCTIONS FOR SHORTENING OF THE PTO-SHAFT 1. Remove the protective tube cover 2. Cut the transmission shaft to the desired length.NOTE! The shaft cannot be cut more than half the length of the tube. 3. File the outer edges 4. Cut the tube cover the same length of the transmission 5. -
Page 18: Complaint Form
Complaint form We are grateful for your help pointing out any inaccuracies in the Kellfri product delivered to you. Before making a complaint read Kellfris general warranty and sales conditions in our catalog as well as the enclosed User’s manual that comes with the machine. -
Page 19: Warranty And Ec Declaration Of Conformity
Other equipment must meet the hardware requirements of the Directive Tina Baudtler, VD Kellfri AB is constantly working on further developing their products and therefore re- servesthe right to modify, among other things the design and appearance without notice CUSTOMER SERVICE You are always welcome to give your feedbacks, reviews or ask us about our tools and products.
